Baykal APHS 31120 132 Ton x 10' 4-Axis CNC Press Brake
Model:
APHS 31120
Age:
2018
Ref#:
44231
Prestige Equipment is the world's leading provider of Baykal APHS 31120 132 Ton x 10' 4-Axis CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓

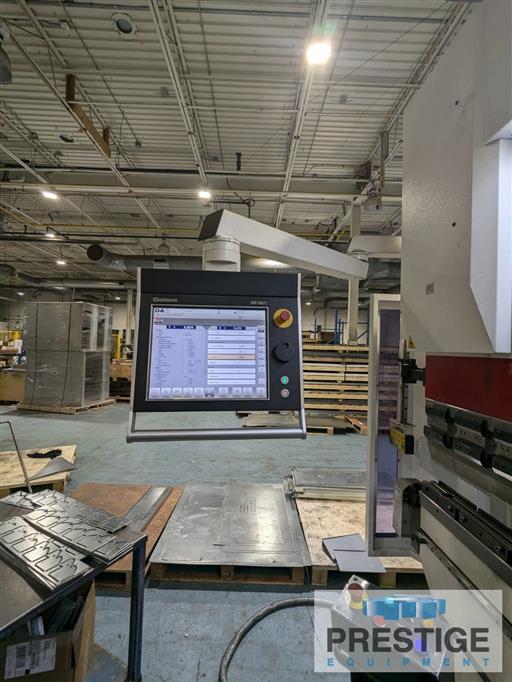

Delem DA-66T 4-Axis CNC Control
✓
Programmable Ram Depth (Y1,Y2)
✓
2-Axis CNC Back Gauge (X,R)
✓
Upper Set Of Tool Holders
✓
Electric Foot Switch Control
✓

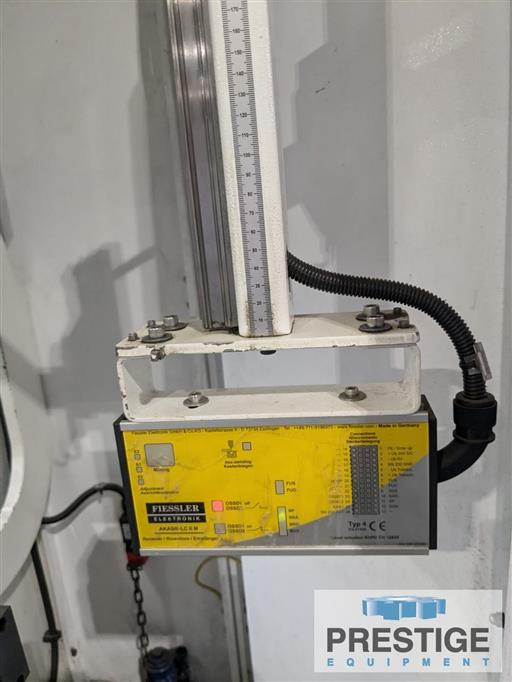

Fiessler Light Curtain System
✓
Crowning
Product Specifications
CAPACITY:
Maximum Tonnage Capacity
132 Ton
Maximum Bending Length
122.04"
Distance Between Housings
100.39"
Open Height
20.86"
Closed Height
10.63"
Throat Depth
16.14"
Stroke Length
10.23"
Main Motor
15 HP
Approx. Dimensions, L X W X H
157" x 71" x 110.23"
Approx. Shipping Weight
18,500 LBS
Equipped With:
Delem DA-66T 4-Axis CNC Control
Programmable Ram Depth (Y1,Y2)
2-Axis CNC Back Gauge (X,R)
Upper Set Of Tool Holders
Electric Foot Switch Control
Fiessler Light Curtain System
Crowning
Features:
✓
Delem DA-66T 4-Axis CNC Control
✓
Programmable Ram Depth (Y1,Y2)
✓
2-Axis CNC Back Gauge (X,R)
✓
Upper Set Of Tool Holders
✓
Electric Foot Switch Control
✓
Fiessler Light Curtain System
✓
Crowning
