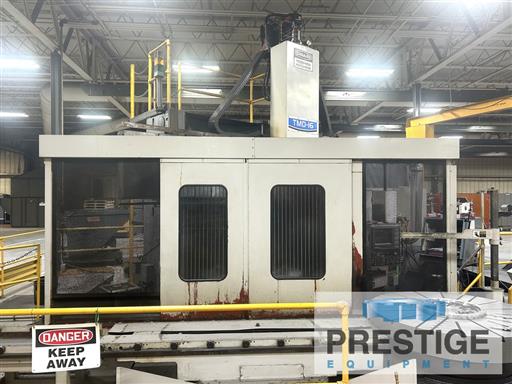

TOSHIBA TMD-16N 1600 MM CNC Vertical Boring Mill With Live Spindle, Pallet Shuttle
Model:
TMD-16 ATC w/Milling
Age:
1999
Ref#:
44192
Prestige Equipment is the world's leading provider of TOSHIBA TMD-16N 1600 MM CNC Vertical Boring Mill With Live Spindle, Pallet Shuttle & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Fanuc 15-TA CNC Control
✓

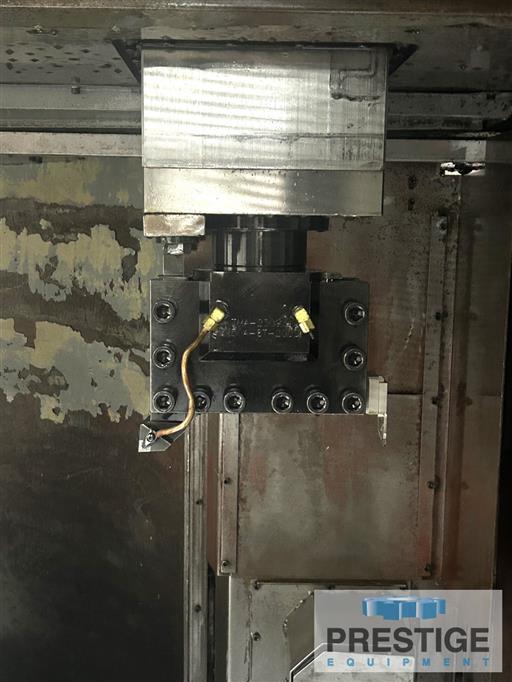

Ram With Live Spindle & 24 Station Automatic Tool Changer
✓
(2) 1600 MM Face Plate Type Chucks With 2-Pallet Shuttle System
✓
C-Axis Table For Milling & Drilling Operations
Product Specifications
SPECIFICATIONS:
Table Diameter
1600 MM
Maximum Swing
2000 MM
Maximum Turning Diameter
2000 MM
Maximum Height Ram to Table Surface
1600 MM
Maximum Cutting Height
1400 MM
Vertical Travel of Ram
1049 MM
Horizontal Travel of Ram Head
-805 MM /+1120 MM
Ram Cross Section
220 MM x 220 MM
Cross Rail Vertical Travel
500 MM
Table Speeds
6-280 RPM
Table Speed Ranges
2
Table Torque
22,000 Nm
Table C-Axis
360,000 Position
Spindle Mill & Drill Speeds
12.5-1500 RPM
Spindle Torque
390 Nm
Spindle Taper
#50
Milling Spindle Motor
15 KW /11 KW
Table Drive Motor
45 KW /37 KW
X-Axis Rapid Traverse of Rail Head
12000 MM/MIN
Z-Axis Rapid Traverse of Ram
8000 MM/MIN
X and Z-Axis Feed Rates
2000 MM
Floor Space
7950 MM x 7315 MM
Machine Height
5588 MM
Machine Weight W/O Pallet Changer
32749 KG
Electrics
220V 50/60 Cycle
Equipped With:

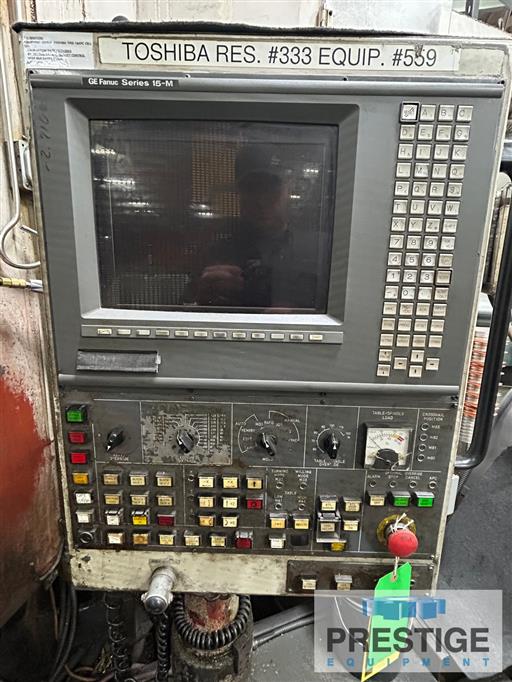

Fanuc 15T-C CNC Control

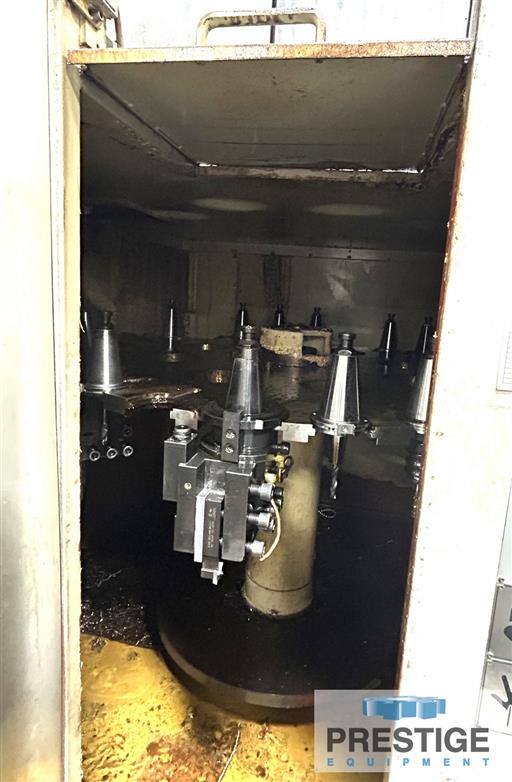

24-Station ATC With (8) Turning & (16) Milling Stations

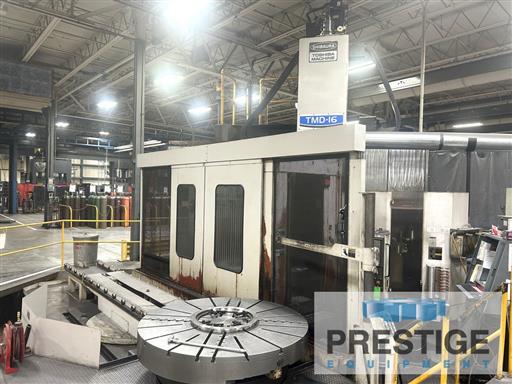

(2) 1600 MM Face Plate Type Chucks With 2-Pallet Shuttle System
C-Axis Table For Milling & Drilling Operations
Continuous Thread Cutting
Fanuc AC Servo Motors and Drives
Coolant System
Chip Conveyor
Features:
✓
Fanuc 15-TA CNC Control
✓
Ram With Live Spindle & 24 Station Automatic Tool Changer
✓
(2) 1600 MM Face Plate Type Chucks With 2-Pallet Shuttle System
✓
C-Axis Table For Milling & Drilling Operations
