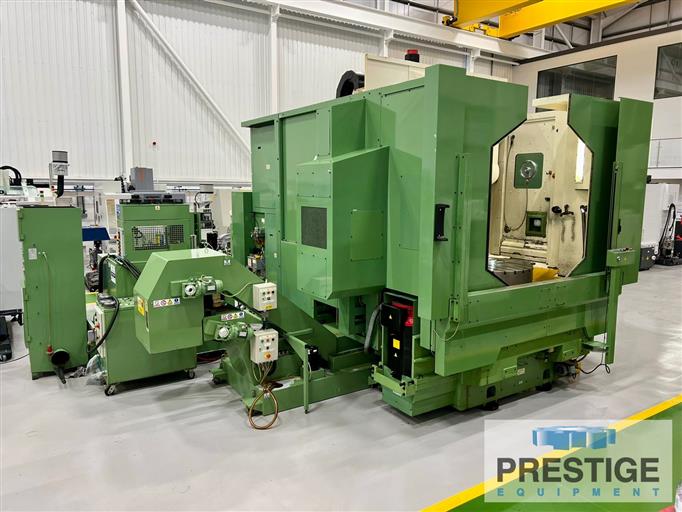

Okuma VTM-120YB 49"/59" 5-Axis CNC Vertical Turning Center
Model:
VTM-120YB
Age:
2008
Ref#:
44508
Prestige Equipment is the world's leading provider of Okuma VTM-120YB 49"/59" 5-Axis CNC Vertical Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

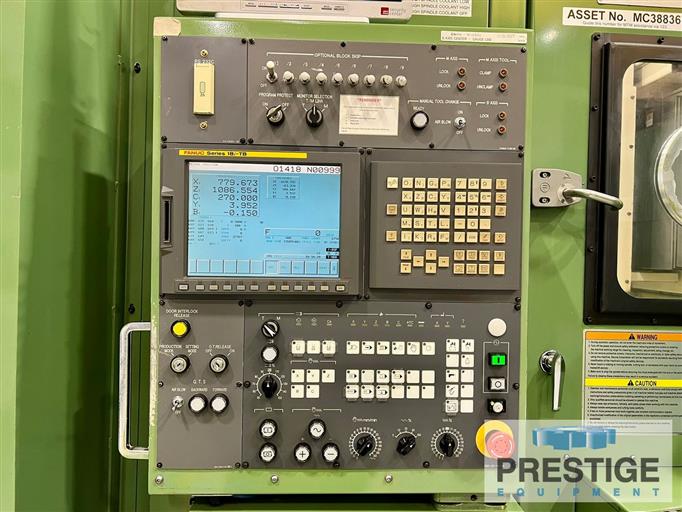

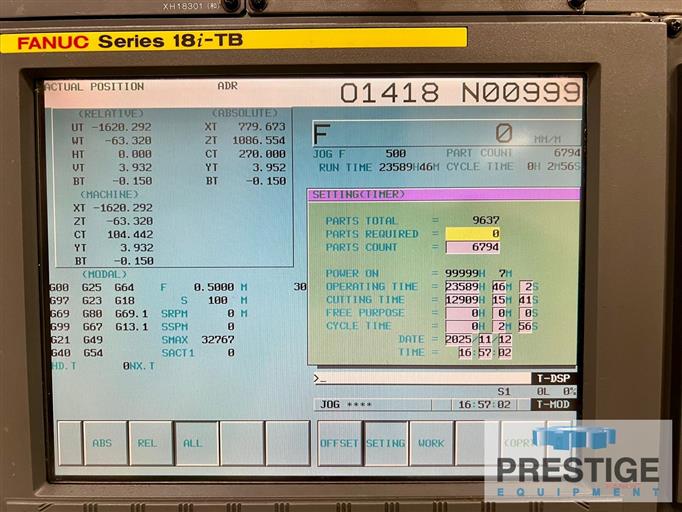

Fanuc 18i-TB CNC Control
✓
49.21" 4-Jaw Chuck
✓
Live Milling With C-Axis
✓

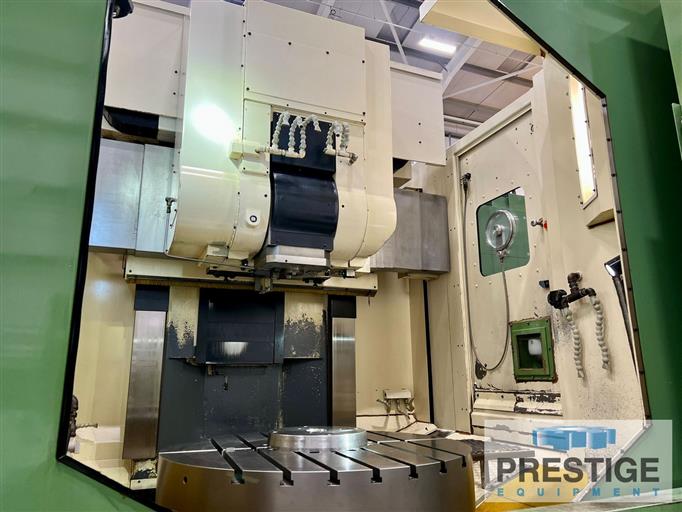

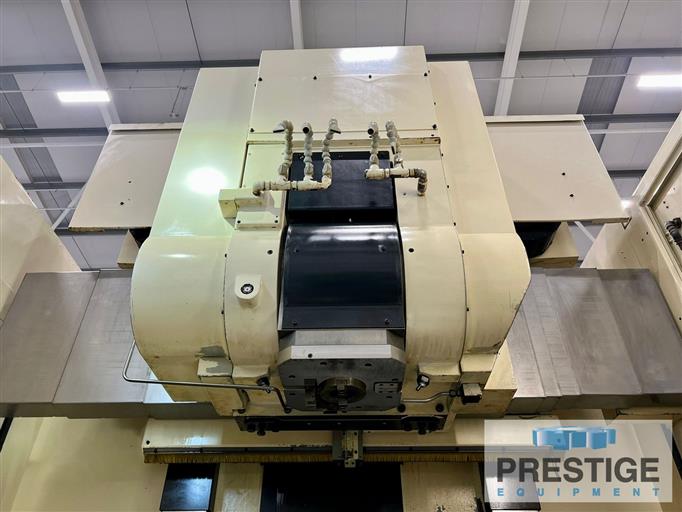

B-Axis Swivel Head
✓

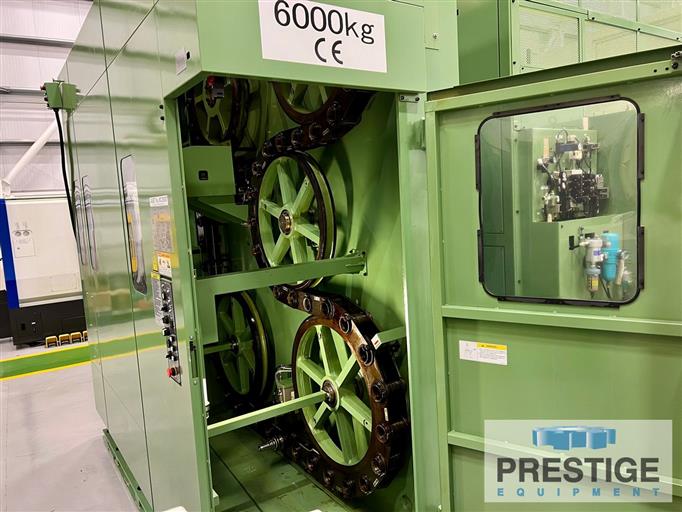

60-Station Automatic Tool Changer
✓
1000 PSI High Pressure Coolant
✓
Renishaw Probe
✓
Chip Conveyor
Product Specifications
SPECIFICATIONS:

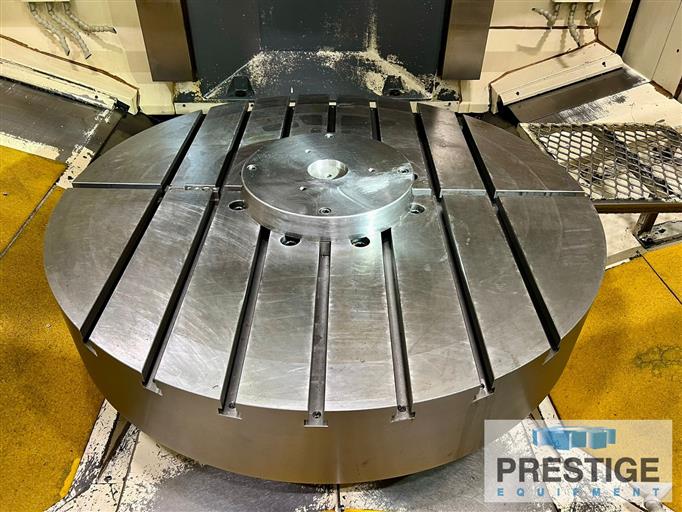

Table Diameter
49.21"
Maximum Swing Diameter
59.06"
Maximum Machining Diameter
47.24"
Maximum Turning Height
39.37"
Table Speeds
6-600 RPM
Table Motor
40 HP / 30 HP
X-Axis Travel
50"
Y-Axis Travel
39.37"
Z-Axis Travel
44.69"
C-Axis
.001 Deg.
B-Axis Range
120 Degrees
Milling Spindle Motor
25 HP/ 20 HP
Milling Spindle Speeds
6000 RPM
Spindle Taper
BT50 Big Plus
Cutting Feedrate, X/Y/Z Axes
.00004 - 19.69 IPR
Rapid Traverse, X/Y/Z Axes
630 IPM
Floor Space Required
202.75" x 208.26"
Machine Height
173.42"
Total Weight
59,400 Lbs.
Machine Electrics
220/480/3/60
Equipped With:
Fanuc 18i-TB CNC Control
49.21" 4-Jaw Chuck
Live Milling With C-Axis
B-Axis Swivel Head
60-Station Automatic Tool Changer
1000 PSI High Pressure Coolant
Renishaw Probe
Chip Conveyor
NOTE:
VTM-120YB 5-axis combination lathe/machining center can perform turning,vertical,horizontal,and angled surface machining in one operation without reorienting the part in the chuck. With operator control of spindle direction in relation to the surface of the workpiece, side cutting with straight end mills can be used to dramatically reduce cutting time compared with point cutting using ball end mills. Cutting efficiency can be increased significantly and the lifetime of the tooling can be extended, reducing overall production costs. The work spindle is supported at two locations by large diameter roller bearings, offering precision control for the production of complex parts. The spindle’s geared head generates high torque capable of sustaining the heavy cutting necessary for parts such as large valve bodies. Inspect Under Power
Features:
✓
Fanuc 18i-TB CNC Control
✓
49.21" 4-Jaw Chuck
✓
Live Milling With C-Axis
✓
B-Axis Swivel Head
✓
60-Station Automatic Tool Changer
✓
1000 PSI High Pressure Coolant
✓
Renishaw Probe
✓
Chip Conveyor
