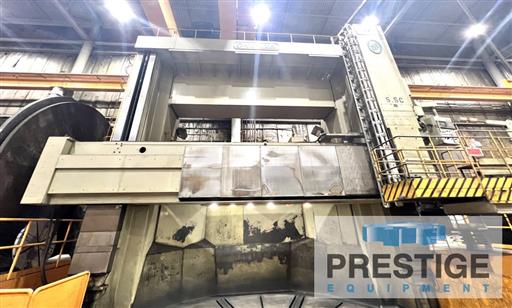

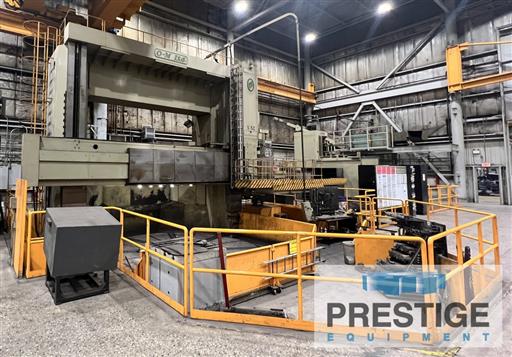

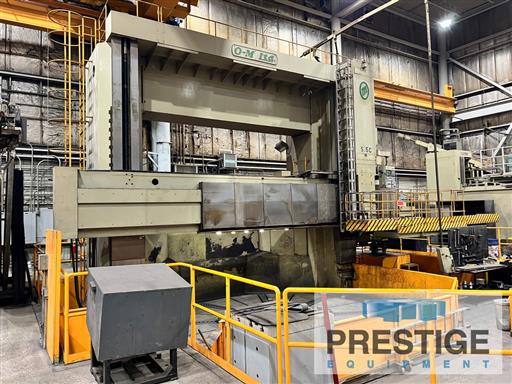

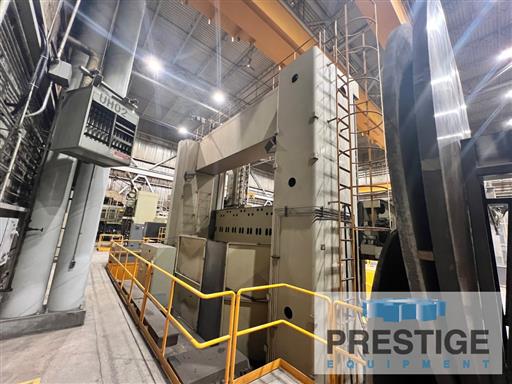

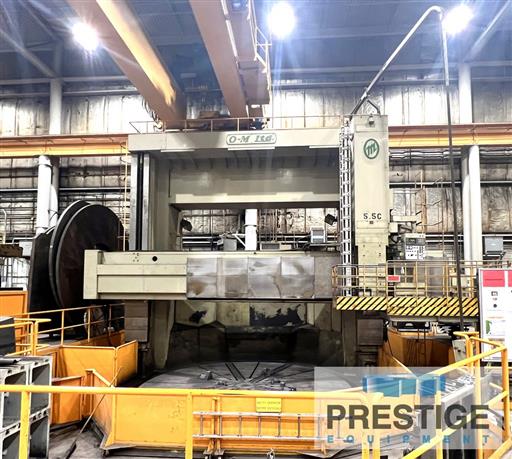

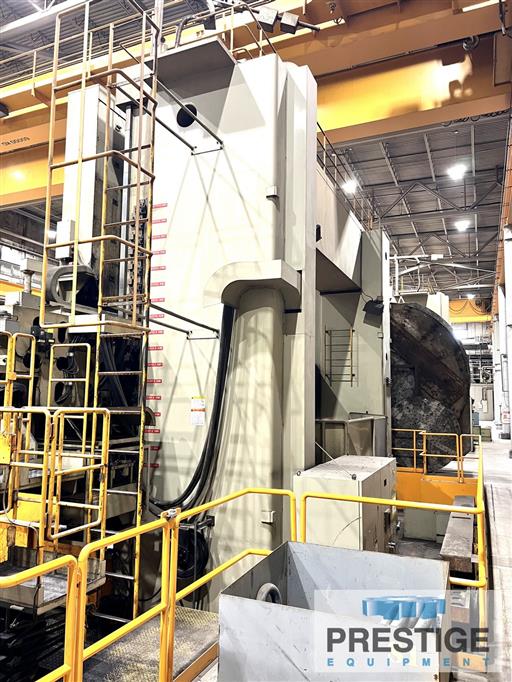

216" O-M Ltd. TMD 55/60 Vertical Boring Mill
Model:
TMD 55/60N
Age:
2000
Ref#:
44190
Prestige Equipment is the world's leading provider of 216" O-M Ltd. TMD 55/60 Vertical Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Product Specifications
CAPACITY:
Table Diameter
216.53"
Maximum Turning Diameter
236.22"
Maximum Turning Height
145.66"
Horizontal Travel of Rail Head
175.19"
Vertical Travel of Cross Rail
125.98"
Ram Stroke
82.67"
Ram Cross Section
11.02" x 11.02"
Table Speed (3- Ranges)
.3-45 RPM
Table T-Slots (Nominal)................ 1.65"
1.65"
Table Weight Capacity
132,277 Lbs
Table Motor
80 HP / 100 HP
Equipped With:

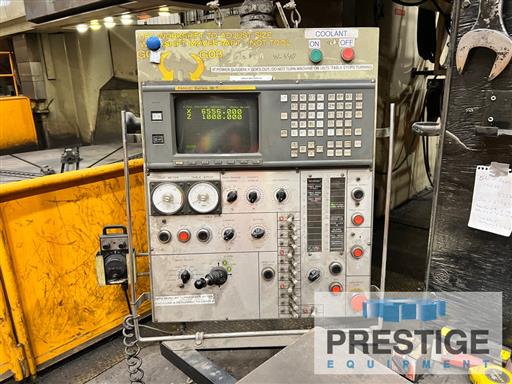

Fanuc 18-TB CNC Control
Dual Operator Controls

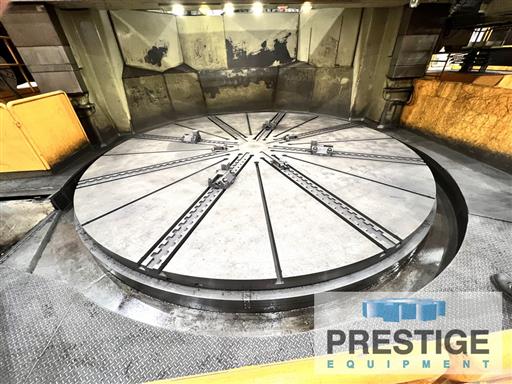

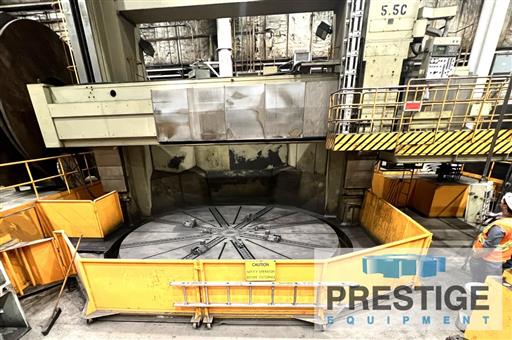

T-Slotted Table with (4) Face Plate Type Jaws
Vertical Ram with Tool Block Holder
Thread Cutting Cycle Retract
Constant Surface Speed Control
Inch / Metric Conversion
Chamfering / Corner Rounding
Tool Nose Radius Compensation
Tool Geometry / Wear Compensation
Stored Pitch Error Compensation

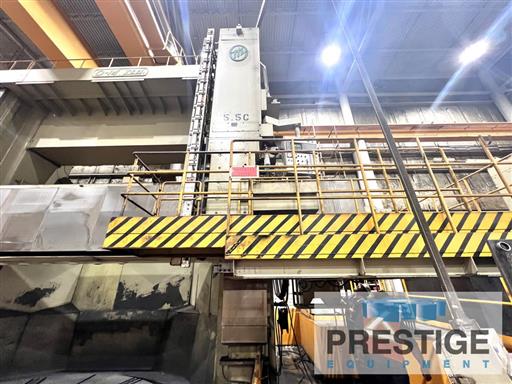

Independent Operator Platform and Lift
Steel Sliding Way Covers
100 HP Table Drive
NOTE:
Excellent Condition, Inspect Under Power in Turbine Mfg Facility
