HNK VTC30/40 CNC Vertical Boring Mill with Milling
Model:
VTC30/40
Age:
2012
Ref#:
31480
Prestige Equipment is the world's leading provider of HNK VTC30/40 CNC Vertical Boring Mill with Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

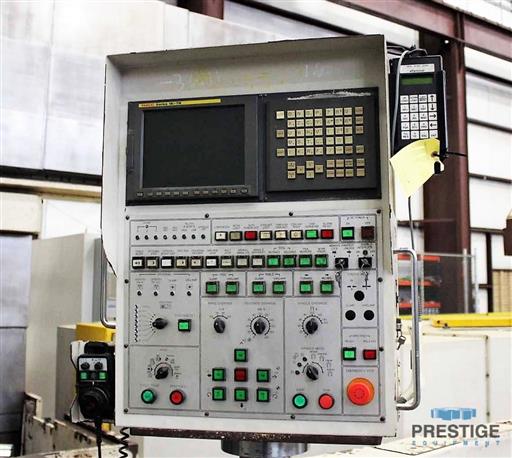

Fanuc 18i-TB CNC Controls
✓
Ram with 12 Station Automatic Tool Changer
✓

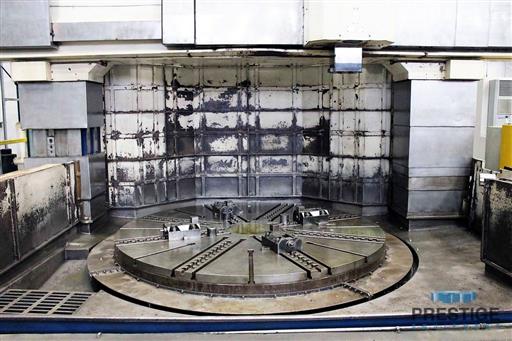

C-Axis Table with Live Milling
Product Specifications
CAPACITY:
Table Diameter
3000 MM
Maximum Swing
4000 MM
Maximum Work Height
2200 MM
Ram Stroke
1300 MM
Ram Cross Section
300 MM x 300 MM
Cross Rail Vertical Travel
1500 MM
Cross Rail Positioning
6 x 250 MM Steps
Table Speeds, 2-Speeds
1 to 80 RPM
C-Axis
0.001 Degree
Table Weight Capacity
24993 KG
Machine Weight
84822 KG
LIVE MILLING SPINDLE:
Live Milling Motor
22 KW / 26 KW
Live Milling Speeds
15-1500 RPM
Spindle Taper
CAT 50
Equipped With:
Fanuc 18i-TB CNC Controls
12 Position Automatic Tool Changer
C-Axis Table Drive
Full Splash Guarding
Right Angle Milling Attachment
Coolant Thru Spindle
Flood Coolant System
Spindle Oil Cooler
Chip Conveyor
75 KW Main Drive Motor
NOTE:
Inspect In Plant Under Power!
Features:
✓
Fanuc 18i-TB CNC Controls
✓
Ram with 12 Station Automatic Tool Changer
✓
C-Axis Table with Live Milling
