HNK NT-40/50 CNC Vertical Boring Mill W/12-ATC
Model:
NT-40/50
Age:
2012
Ref#:
44276
Prestige Equipment is the world's leading provider of HNK NT-40/50 CNC Vertical Boring Mill W/12-ATC & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Fanuc 31iA CNC Controls
✓
Ram With 12-Station Automatic Tool Changer
✓
154 HP Main Drive
Product Specifications
SPECIFICATIONS:
Table Diameter
157.48"
Maximum Swing
196.85"
Maximum Work Height
98.42"
Table Speeds, 2-Speeds
1 to 50 RPM
Table Weight Capacity
88,000 Lbs
Machine Weight
255,000 Lbs
TRAVELS:
X-Axis Ram Horizontal
-7.87" to +165.25"
Y-Axis Ram Vertical
59.05"
W-Axis Cross Rail

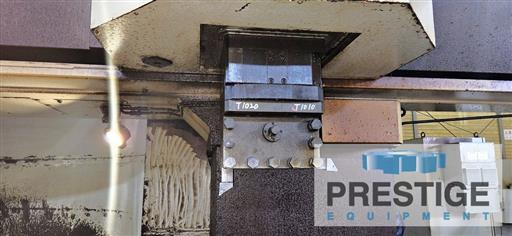

Ram Cross Section
13.78" x 13.78"
Cross Rail Positioning
6 x 9.84" Steps
Equipped With:
Fanuc 31iA CNC Controls
12 Position Automatic Tool Changer

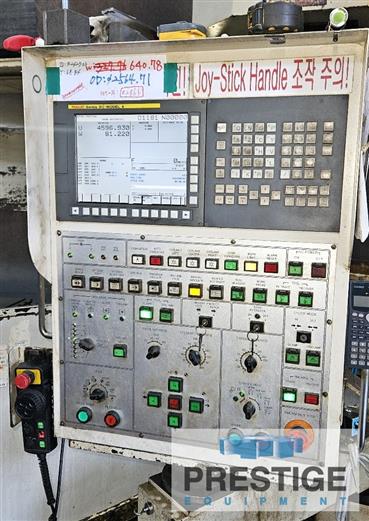

Pendant Mounted CRT
157.84" 4-Jaw Chuck
Chip & Splash Guarding
Chip Conveyor System
118 HP/154 HP Main Drive Motor
NOTE:
Inspect In Plant Under Power!
Features:
✓
Fanuc 31iA CNC Controls
✓
Ram With 12-Station Automatic Tool Changer
✓
154 HP Main Drive
