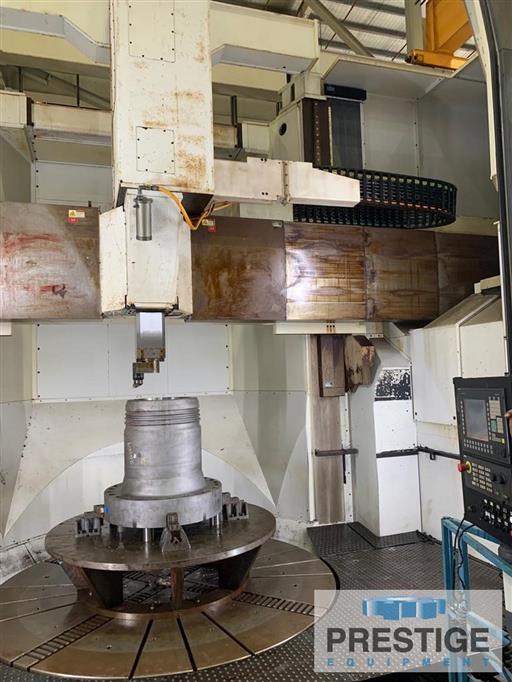

Giddings & Lewis VTC 3000 2997 MM CNC Vertical Turning Center with Milling
Model:
VTC 3000
Age:
2013
Ref#:
32869
Prestige Equipment is the world's leading provider of Giddings & Lewis VTC 3000 2997 MM CNC Vertical Turning Center with Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Siemens 840Dpl Powerline CNC Control w/ MDI Remote Pendant
✓
3000 MM Dia. T-Slotted Table with 4-Face Plate Jaws
✓
C-Axis Table For Milling & Drilling Operations
✓
Automatic Tool Changer
✓
Live Head Spindle Attachment, 4,000 RPM
✓
Programable High Pressure Thru Spindle Coolant
✓
Renishaw Part and Tool Probes RMP60M
✓
Chip and Splash Enclosure
Product Specifications
SPECIFICATIONS:
Table Diameter
3000 MM
Maximum Swing
3400 MM
Maximum Facing Capacity
3400 MM
Maximum Height Under Ram Face
3800 MM
Minimum Height Under Ram Face
2300 MM
Cross Rail Elevating Rate
800 MM/MIN
X-AXIS TRAVEL OF RAM:
Ram Travel, Right of Center
1910 MM
Ram Travel, Left of Center
1910 MM
Rapid Traverse X-Axis
19990 MM/MIN
Z-AXIS TRAVEL OF RAM:
Right Hand Vertical Ram Travel
1750 MM
Ram Cross Section
250 MM x 250 MM
Rapid Traverse Rate Z-Axis Ram
19990 MM/MIN
TABLE:
Table Speeds, Infinitly Variable
2-Speed Ranges
Low Range
1-37 RPM
High Range
1-150 RPM
Table Motor
108 KW
Table Motor, Cont.Rating
75 KW
Table Load Capacity
59874 KG
Constant Torque
130,000 Nm
Thrust Bearing Load Capacity
113398 KG
LIVE SPINDLE/C-AXIS:
AC Drive Motor S6-40%
33 KW
AC Drive Motor Continuous
22 KW
Number of Speeds
2-Speed Gear Box
Speeds
To 4000 RPM
Live Spindle Tooling Taper
Kennametal KM80
Coolant
Thru-Spindle
C-Axis Positioning/Contouring Table
360,000 Positions
Table, Rapid Traverse
1.6 RPM
Feed Rate
Infinitely Variable
Torque Available
24,000 Nm
C-Axis B-Directional Positioning
10 Arc Sec
C-Axis B-Directional Repeatability
5 Arc Sec
AUTOMATIC TOOL CHANGER:
Automatic Tool Drawer,Horiz.Tools
6-Position(KM80)
Right Hand Automatic Tool Changer
25
Wedge Lock Taper Pockets
5
Live Spindle Attachment Pocket
1
KM Modular Tool Pockets
19
Maximum Tool Width
400 MM
Maximum Tool Length
700 MM
Tool Shank Taper
2:1 Taper
Wedge Lock Clamping
14969 KG
Gauge Diameter
160 MM
Equipped With:

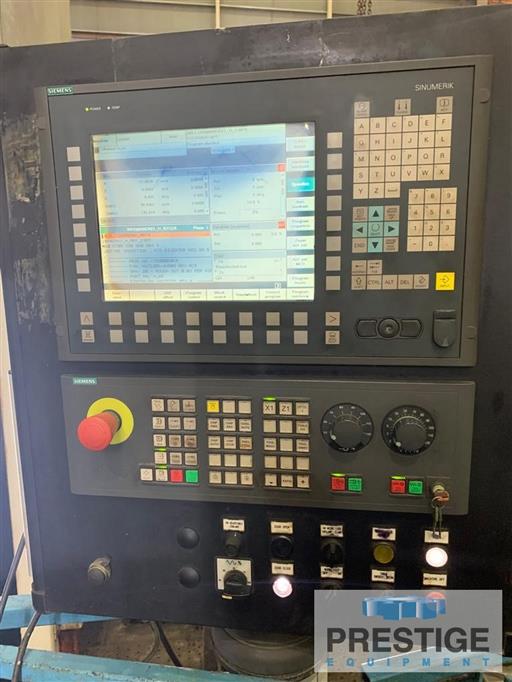

Siemens 840D PowerLine CNC Control w/ MDI Remote Pendant
3000 MM Dia. T-Slotted Table
C-Axis Table For Milling & Drilling Operations

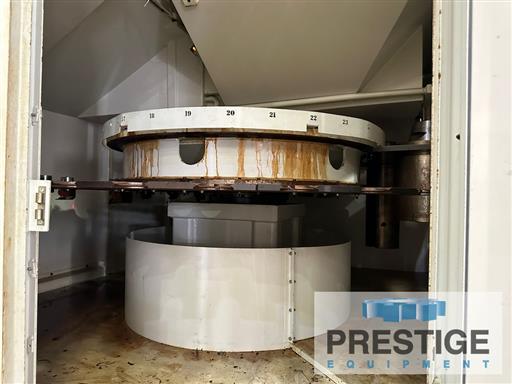

22-Station Automatic Tool Changer (1-LS,1-LH,11-WL,10-KM80)

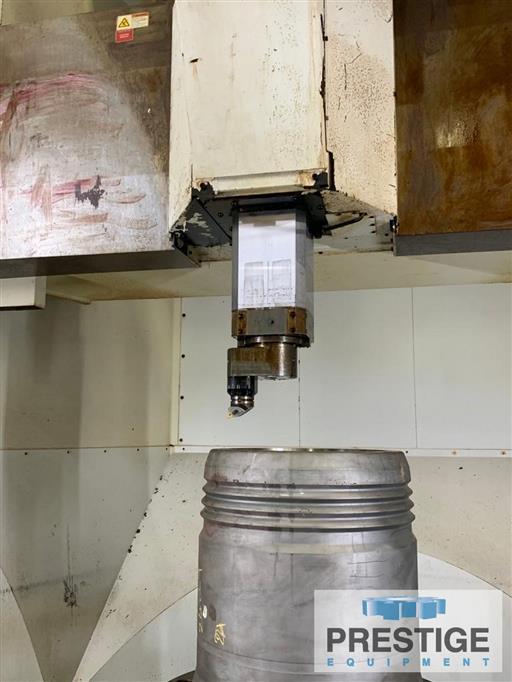

Live Head Spindle Attachment, 4,000 RPM

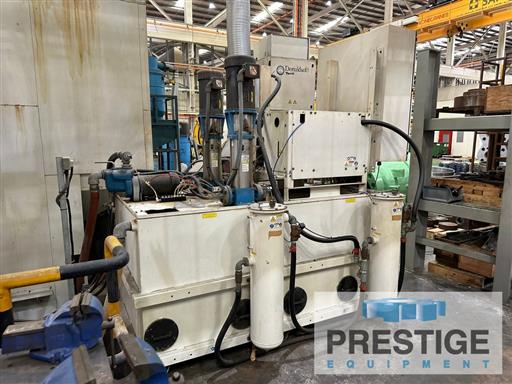

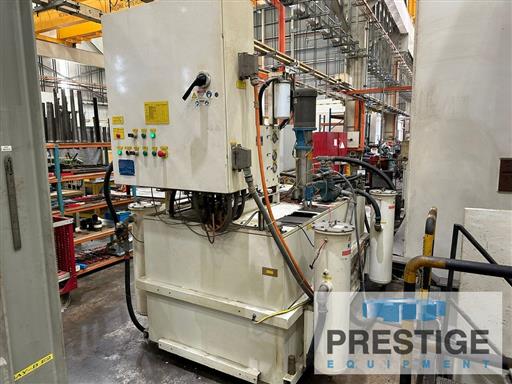

High Pressure Thru Spindle 70 Bar
Coolant Thru Nozzels 20 Bar
Renishaw Part Probe RMP60M

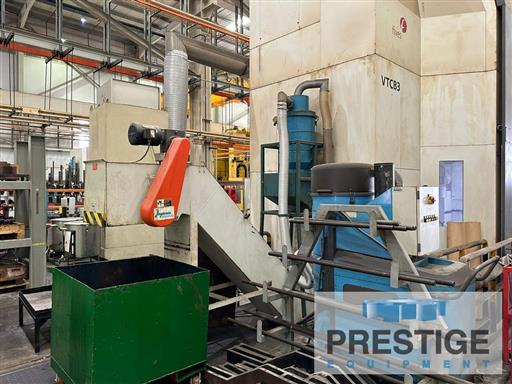

Chip and Splash Enclosure
Elevating Operators Platform
SPECIAL FEATURES:
3800 MM Maximum Height Top of Table to Bottom of Ram
2300 MM Minimum Height Top of Table to Bottom of Ram
Features:
✓
Siemens 840Dpl Powerline CNC Control w/ MDI Remote Pendant
✓
3000 MM Dia. T-Slotted Table with 4-Face Plate Jaws
✓
C-Axis Table For Milling & Drilling Operations
✓
Automatic Tool Changer
✓
Live Head Spindle Attachment, 4,000 RPM
✓
Programable High Pressure Thru Spindle Coolant
✓
Renishaw Part and Tool Probes RMP60M
✓
Chip and Splash Enclosure
