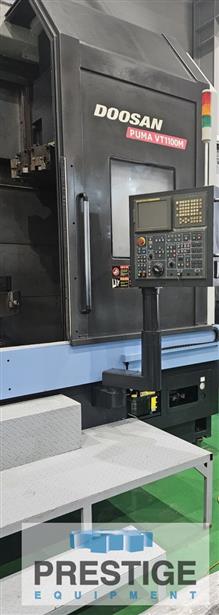

Doosan Puma VT-1100M 50" CNC Vertical Turning Center
Model:
Puma VT1100M
Age:
2008
Ref#:
44319
Prestige Equipment is the world's leading provider of Doosan Puma VT-1100M 50" CNC Vertical Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

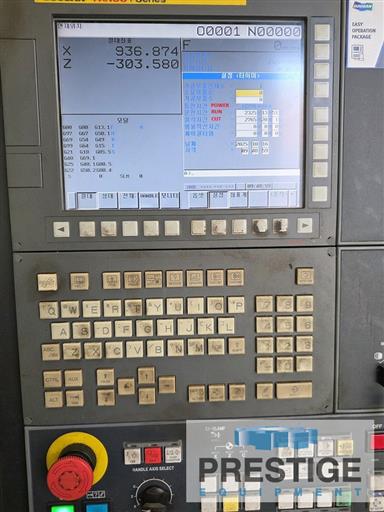

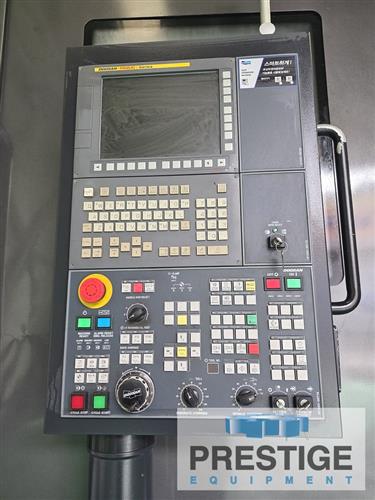

Fanuc CNC Control
✓

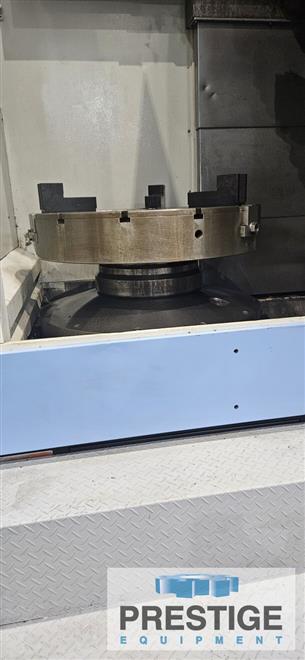

40" Chuck
✓
12-Position Bi-Directional Turret
✓
Live Milling
✓
75 HP Motor
✓
Chip Conveyor
✓
(2) Straight & (2) Angular Milling Holders
Product Specifications
CAPACITY:
Maximum Swing
50.0"
Maximum Cutting Diameter
43.3"
Maximum Cutting Height
39.37"
Spindle Motor
75 HP
Spindle Speeds
5-850 RPM
Live Spindle Speeds
3,000 RPM
Live Spindle Motor
15 HP
X-Axis Travel
22.83"
Z-Axis Travel
39.37"
Rapid Traverse, X,Z Axes
787 IPM
Maximum Feed Rate
236 IPM
Approximate Floor Space
112" x 131"
Approximate Machine Height
158"
Approximate Weight
48,500 Lbs.
Equipped With:
Fanuc CNC Control
40" Chuck
12-Position Bi-Directional Turret
Live Milling
75 HP Motor
Chip Conveyor
(2) Straight & (2) Angular Milling Holders
Features:
✓
Fanuc CNC Control
✓
40" Chuck
✓
12-Position Bi-Directional Turret
✓
Live Milling
✓
75 HP Motor
✓
Chip Conveyor
✓
(2) Straight & (2) Angular Milling Holders
