Prestige Equipment is the world's leading provider of CHEVALIER FVL-1600VTC-C 1600 MM CNC VBM w/ Live Spindle & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

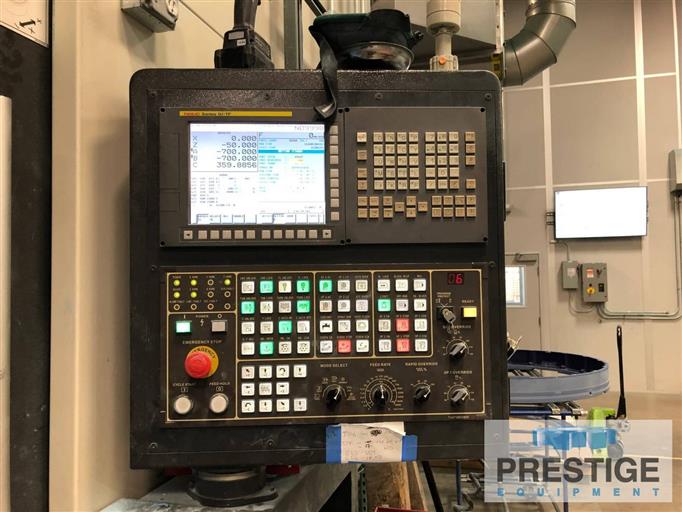

Fanuc Oi-TF CNC Control
✓
Live Milling
✓
C-Axis Indexing
✓
1600 MM 4-Jaw Chuck
✓
48-Station Tool Changer
✓
Wireless Renishaw Part Probe & Tool Setter
✓
Plumbed for Coolant
✓
Auto Doors
Product Specifications
SPECIFICATIONS:
Table Diameter
1600 MM
Max Swing
1999 MM
Max Distance Spindle Nose to Table
1529 MM
X-Axis Travel
2002 MM
Z-Axis Travel
899 MM
Table Speed, Max
250 RPM
Table Indexing, C-Axis
.001 degrees
Table Motor
45 KW
Footprint
7214 MM x 6299 MM
Machine Height
5751 MM

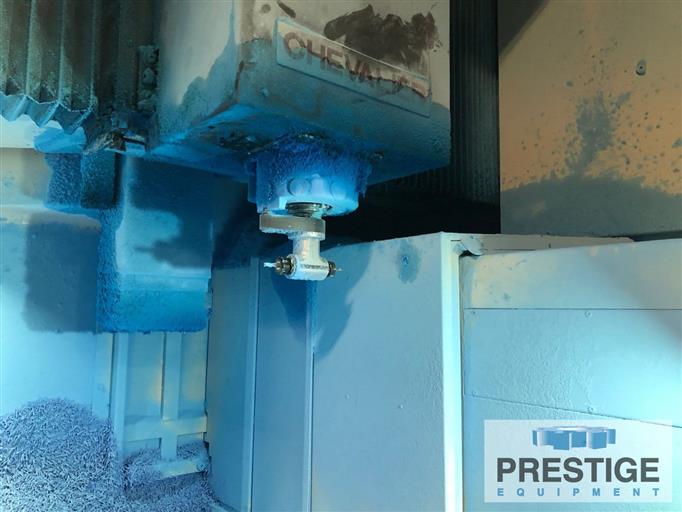

LIVE SPINDLE:
Spindle Speeds
25-2,500 RPM
Spindle Taper
#50
Spindle Motor
15 KW
Equipped With:
Fanuc Oi-TF CNC Control
Live Milling
C-Axis Indexing
1600 MM 4-Jaw Chuck
48-Station Tool Changer
Wireless Renishaw Part Probe & Tool Setter
All Turning Blocks
Plumbed for Coolant
Auto Doors
Note:
Machine Was Being Used to Cut Plastic
Features:
✓
Fanuc Oi-TF CNC Control
✓
Live Milling
✓
C-Axis Indexing
✓
1600 MM 4-Jaw Chuck
✓
48-Station Tool Changer
✓
Wireless Renishaw Part Probe & Tool Setter
✓
Plumbed for Coolant
✓
Auto Doors
