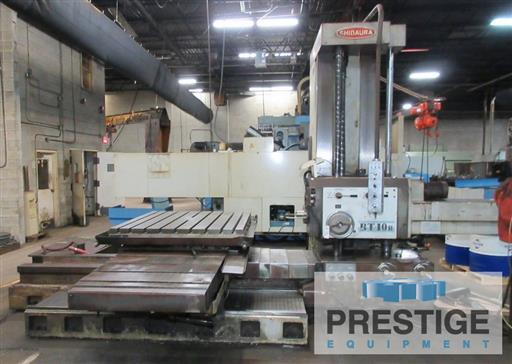

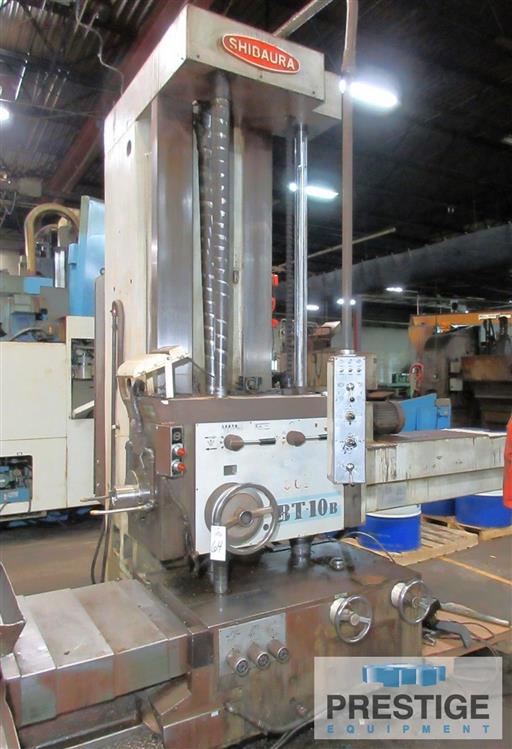

102 MM Toshiba BT-10B R3 Table Type Horizontal Boring Mill
Model:
BT-10B R3
Age:
1978
Ref#:
44121
Prestige Equipment is the world's leading provider of 102 MM Toshiba BT-10B R3 Table Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

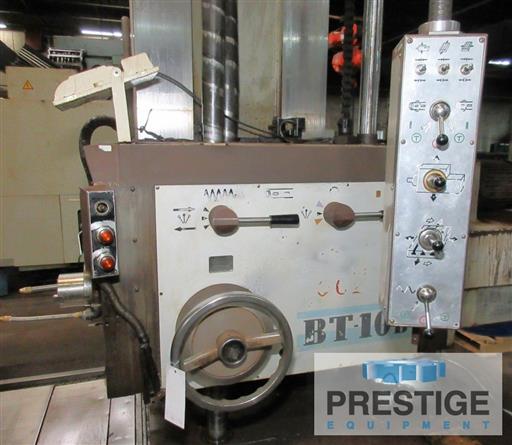

Full Pendant Controls
✓
3-Axis Wizard Digital Readouts
✓
Power Draw Bar
✓
Power Clamping
✓
11 KW Spindle Motor
Product Specifications
SPECIFICATION:

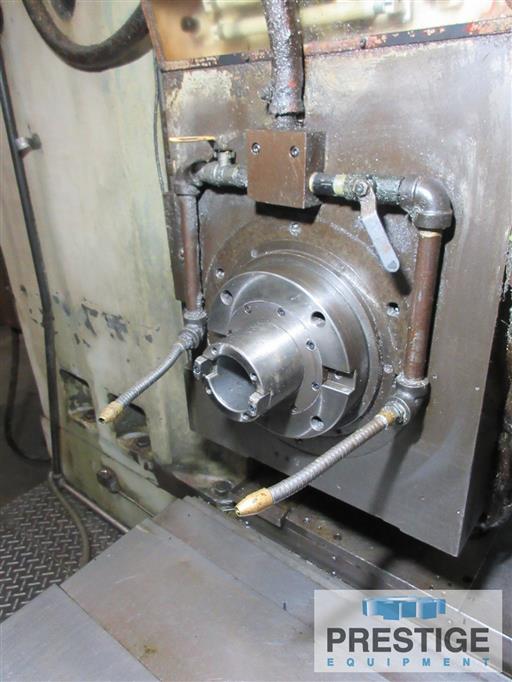

Spindle Diameter
100 MM
Taper In Spindle
#50
Vertical Travel Of Headstock
1450 MM
Cross Travel Of Table
1800 MM
Saddle Travel (In & Out)
1450 MM
Spindle Travel (In & Out)
700 MM
Spindle Speeds (16)
20-1000 RPM
Spindle Feeds
0.0009-.0.67 IPR

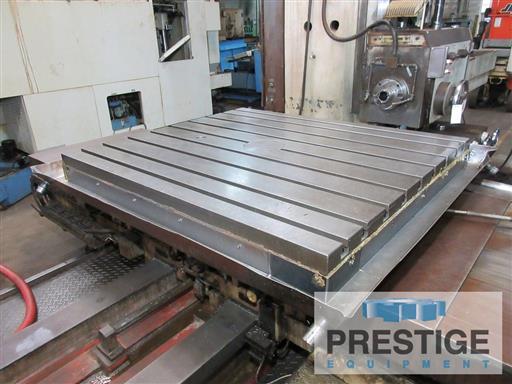

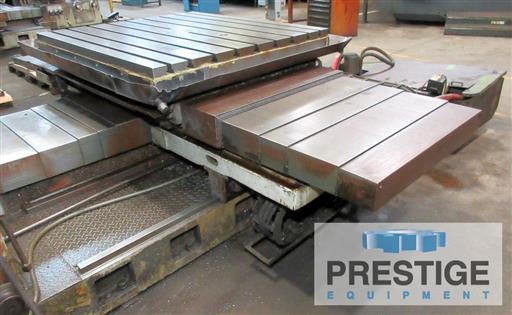

Table Size (Built In Rotary Table)
1400 MM x 1600 MM
Table Capacity
6300 KG .
Rapid Traverse
3200 MM/MIN
Approximate Dimensions
5410 MM x 4293 MM x 3302 MM
Approximate Weight
18507 KG .
Equipped With:
Full Pendant Controls
3-Axis Wizard Digital Readouts
Power Draw Bar
Power Clamping
11 KW Spindle Motor
NOTE:
Inspect in Plant Under Power
Features:
✓
Full Pendant Controls
✓
3-Axis Wizard Digital Readouts
✓
Power Draw Bar
✓
Power Clamping
✓
11 KW Spindle Motor
