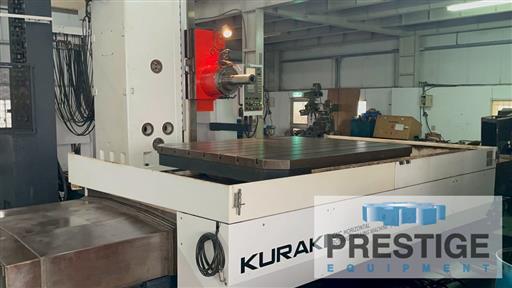

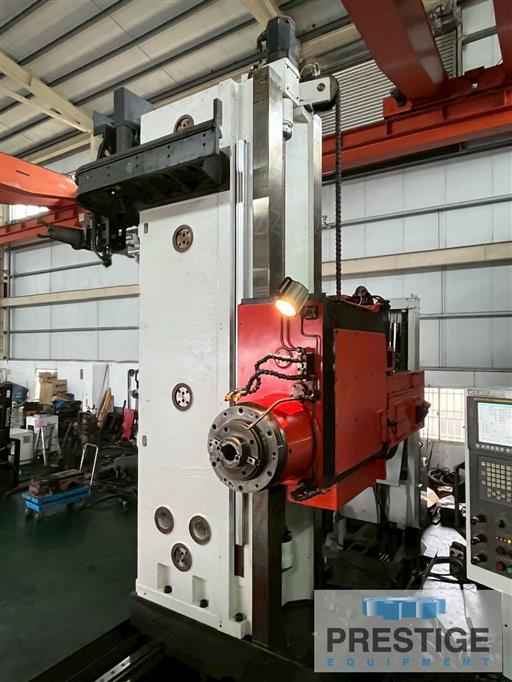

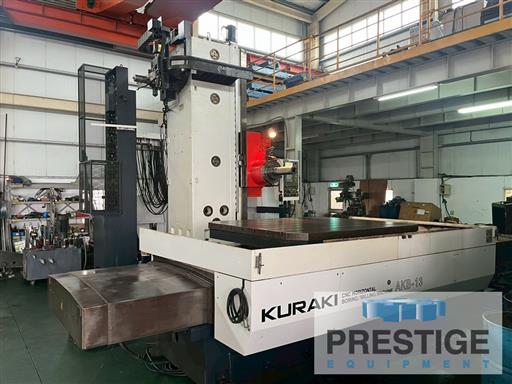

Kuraki AKB-13 5.12" CNC Table Type Horizontal Boring Mill
Model:
AKB-13
Age:
2014
Ref#:
44620
Prestige Equipment is the world's leading provider of Kuraki AKB-13 5.12" CNC Table Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

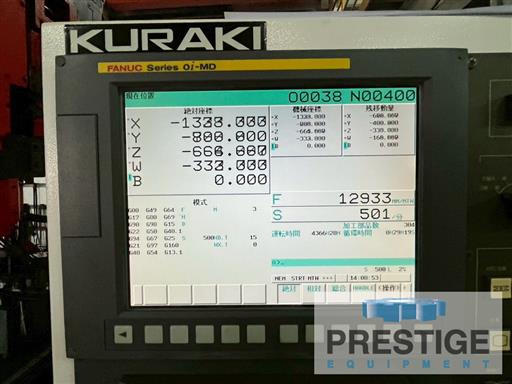

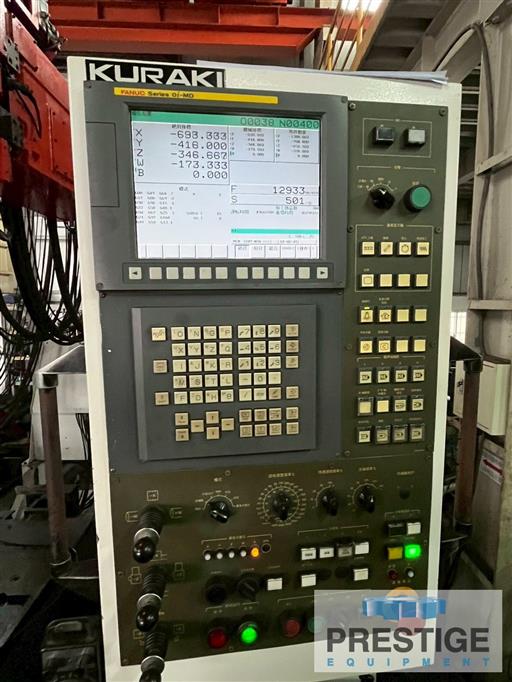

Fanuc Oi-MD CNC Controls
✓

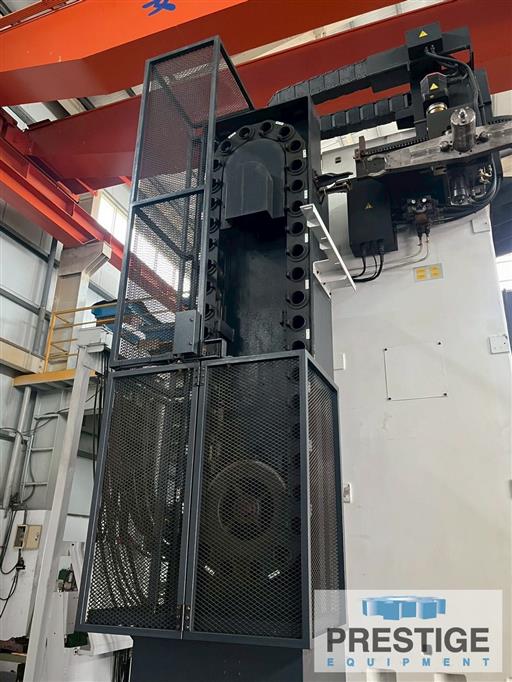

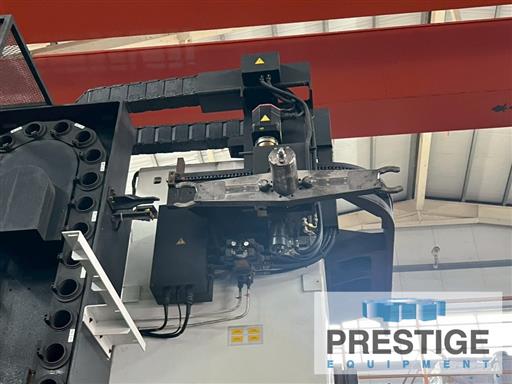

40 Station Automatic Tool Changer
✓

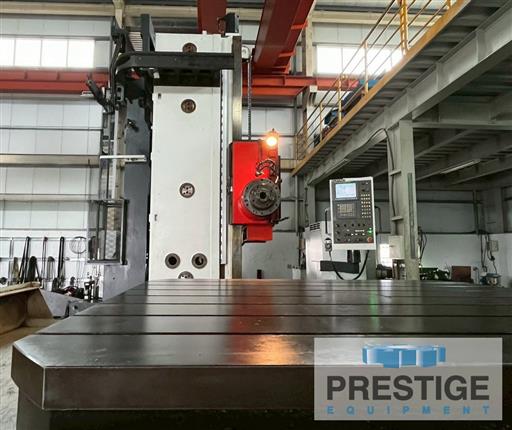

70.87" x 78.74" Built in B-Axis Rotary Table
✓
Thru Spindle Coolant
✓

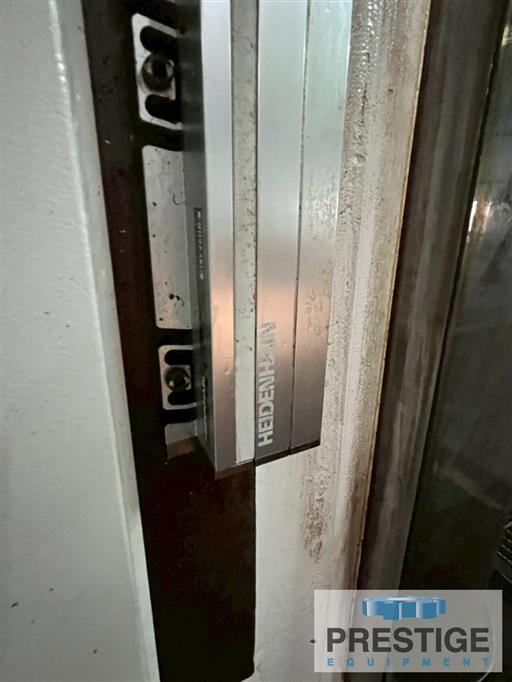

X/Y/Z/B Linear Scales
Product Specifications
SPECIFICATIONS:

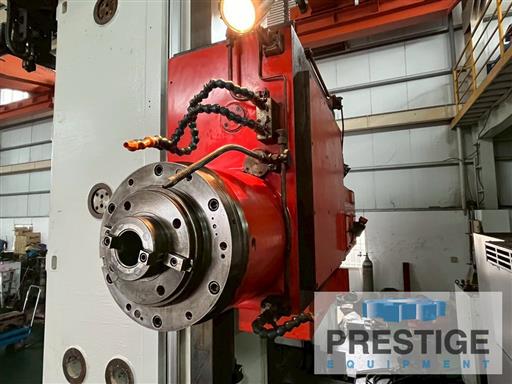

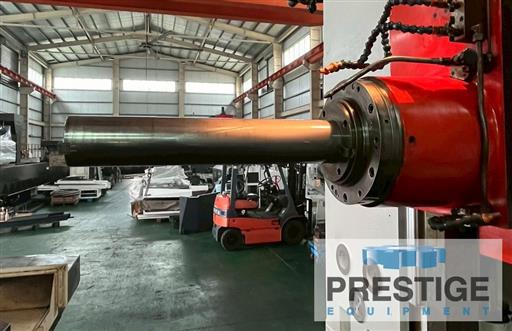

Spindle Diameter
5.12"
Spindle Taper
BBT50 Big Plus
Vertical Travel, Y-Axis
78.74"
Table Travel, X-Axis
118.11"
Column Infeed Travel, Z-Axis
62.99"

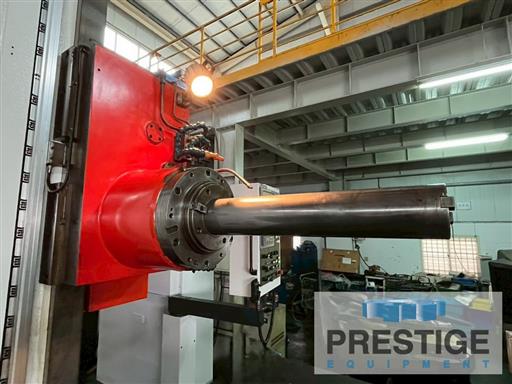

Spindle Axial Travel, W-Axis
27.56"

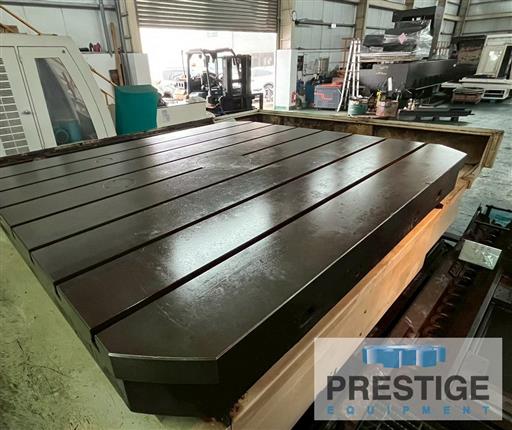

Built in Rotary Table
70.87" x 78.74"
Table Loading Capacity
26,400 Lbs.
Table Indexing
0.001 Deg.
Distance from Spindle to Table
0-78.74"
Distance from Table Center to Spindle . 31.50"-94.49"
Spindle Speeds
9-3000 RPM
Rapid Traverse, X,Y,Z Axes
393.70 IPM
Feed Rate
0.04-157.48 IPM
Approximate Machine Weight
77,000 Lbs.
Equipped With:
Fanuc Oi-MD CNC Controls
40 Station Automatic Tool Changer
70.87" x 78.74" Built in B-Axis Rotary Table

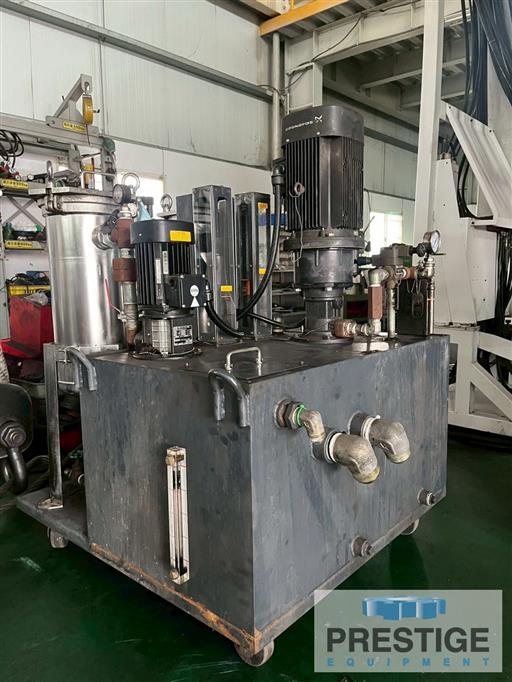

Thru Spindle Coolant
X/Y/Z/B Linear Scales

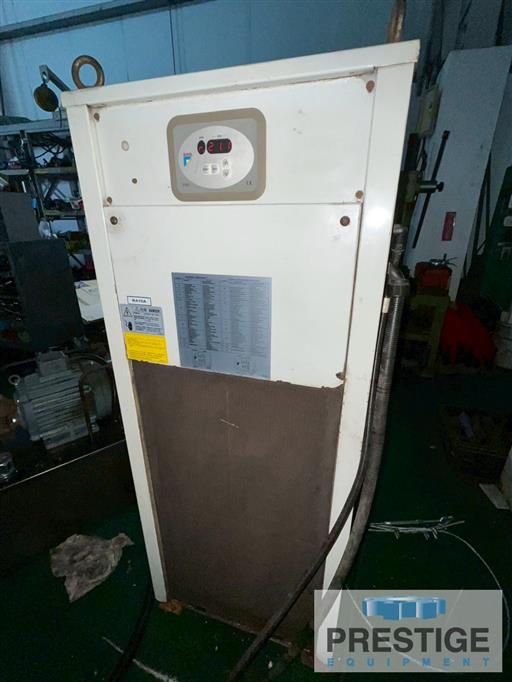

Spindle Oil Cooler

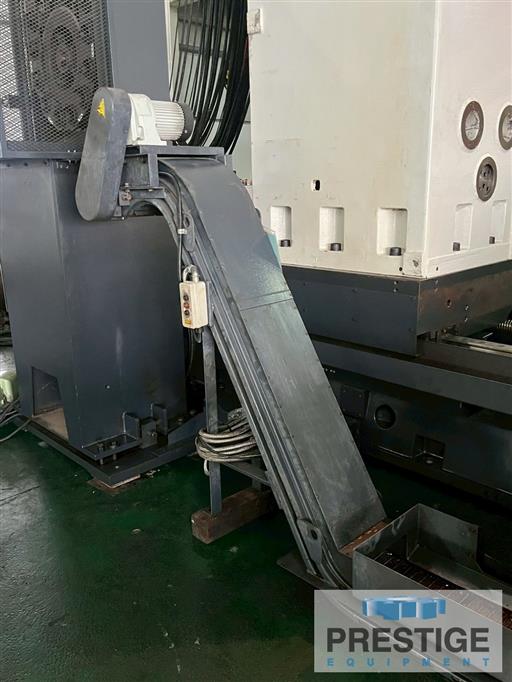

Chip Conveyor
50 HP Main Spindle Motor
Features:
✓
Fanuc Oi-MD CNC Controls
✓
40 Station Automatic Tool Changer
✓
70.87" x 78.74" Built in B-Axis Rotary Table
✓
Thru Spindle Coolant
✓
X/Y/Z/B Linear Scales
