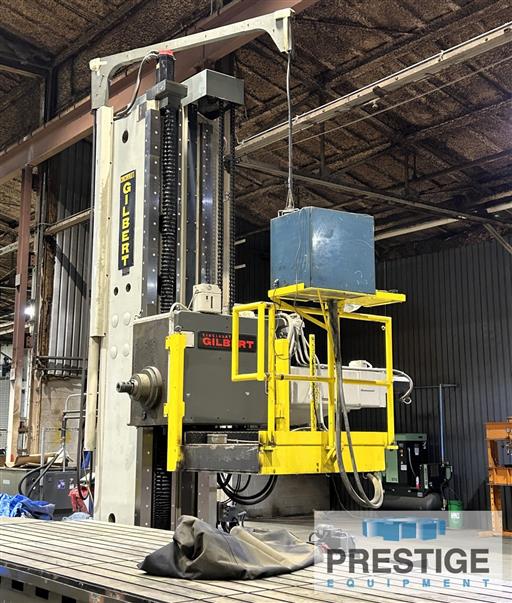

Cincinnati-Gilbert MacroCenter 5.37" CNC Table Type Horizontal Boring Mill
Model:
Macrocenter
Age:
N/A
Ref#:
44429
Prestige Equipment is the world's leading provider of Cincinnati-Gilbert MacroCenter 5.37" CNC Table Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
Fanuc 18M CNC Control
✓
Machine Reconditioned in 2018 Including Reground Ways
✓
Full Pendant Control For Manual & CNC Operation
✓
T-Type Construction, No Pit Required
✓
60,000 Lb Table Weight Capacity
Product Specifications
SPECIFICATION:
Spindle Diameter
5.375"
Vertical Head Travel, Y-Axis
120"
Table Travel, X-Axis
192"
Column Infeed Travel, W-Axis
48"
Spindle Travel, Z-Axis
35"
Spindle Speeds
15-1500 RPM
Spindle Taper
CAT 50
Table Size
60" x 192"
Table Weight Capacity
60,000 LBS
Floor Space
474" x 288"
Overall Height To Top of Pendant
205.25"
Equipped With:
Fanuc 18-M CNC Control
Fanuc Red Cap Servo Motors
Full Pendant For Manual Operation
3-Way Column
Power Draw Bar
Ball Screws & Independent Servo Drives
Hardend Ways On All Axes
Sliding Steel Way Covers on X-Axis
Right Angle Head
30 HP Spindle Motor
NOTE:
Reconditioned In 2018 Including, New Spindle Bearings, Re-Ground Bed and
Column Ways.
Features:
✓
Fanuc 18M CNC Control
✓
Machine Reconditioned in 2018 Including Reground Ways
✓
Full Pendant Control For Manual & CNC Operation
✓
T-Type Construction, No Pit Required
✓
60,000 Lb Table Weight Capacity
