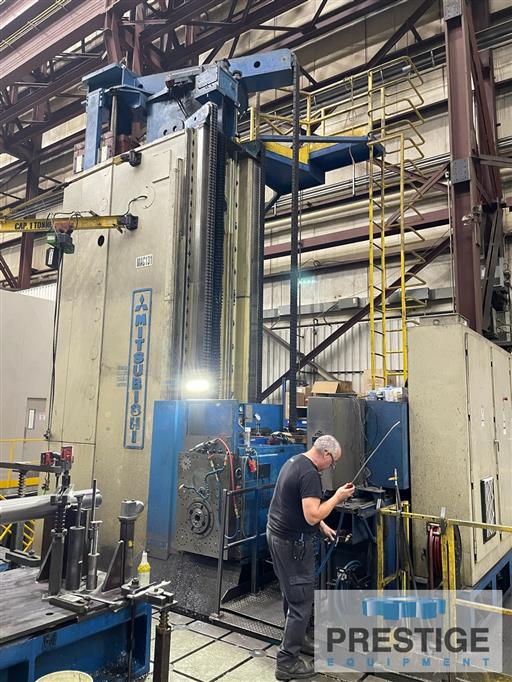

7.086" Mitsubishi CNC Floor Type Horizontal Boring Mill
Model:
Ram Type MAF240
Age:
1982
Ref#:
44711
Prestige Equipment is the world's leading provider of 7.086" Mitsubishi CNC Floor Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Floor Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

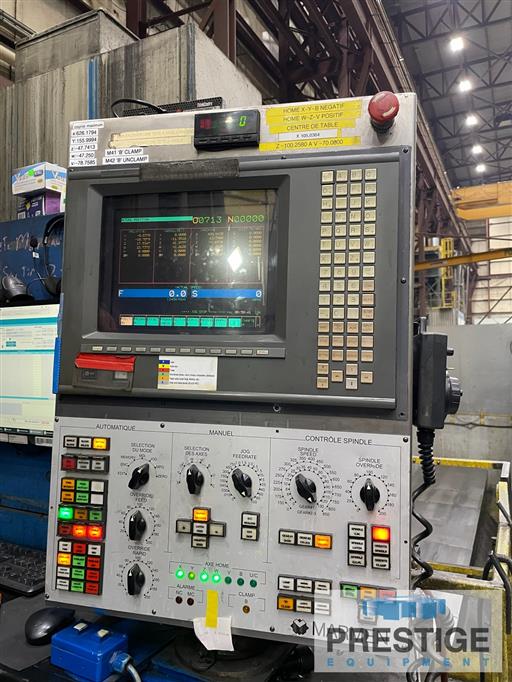

Fanuc 15M CNC Control (Retrofit 1997)
✓
Various Right Angle Heads: Long Reach,
✓
Short Reach, Universal, 4-Positon Right Angle
✓
High Speed Head Attachment : 2400 RPM
✓
1 Ton Jib Crane
✓

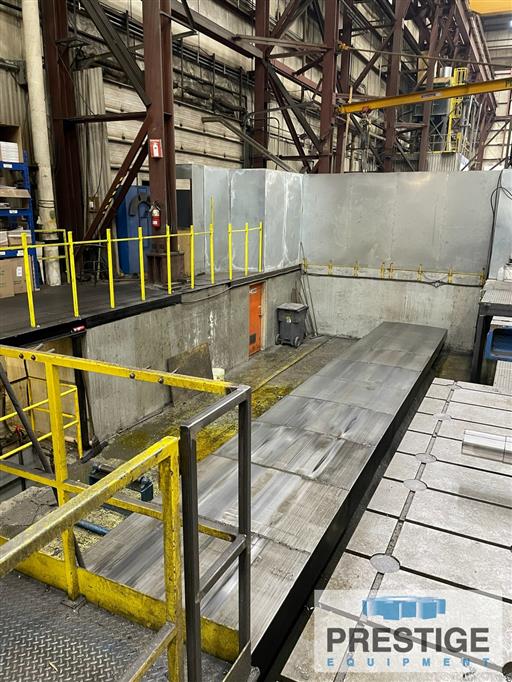

(4) 78" x 157" x 16" Thick T-Slotted Floor Plates
✓

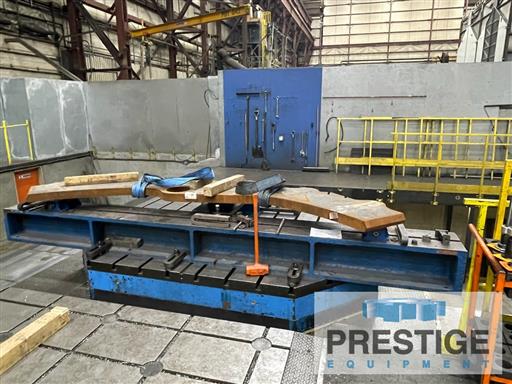

98" x 98" Mitsubishi Infeeding Rotary Table
✓
Power Draw Bar
✓
Way Covers On X & Y Axes
✓
Hardened & Ground Ways
✓
Chip Conveyor
✓
75 HP Spindle Drive
Product Specifications
SPECIFICATIONS:
Spindle Diameter
7.08"
Milling Spindle Diameter
9.44"
Vertical Head Travel, Y
157.48"
Horizontal Column Travel, X
629.92"
Headstock Travel, Z
47.24"
Boring Spindle Travel, W
47.24"
Total Axial Travel
94.48"
Spindle Taper
#50 ANSI
Milling Feeds: Inf.Variable
0.04 IPM-142 IPM
Rapid Traverse: X & Y
315 IPM
Rapid Traverse: Z, W & U
197 IPM
Spindle Speeds: 3-Steps
4-800 RPM
High Speed Shaft: 3-Steps
11-2800 RPM
ROTARY TABLE:
Table Size
98" x 98"
Weight Capacity
44,000 Lbs
Longitudinal Table Travel
66.9"
Diagonal (Corner To Corner)
132"
Overall Table Height
41"
Rotation Speeds-Stepless Range
0.0095-0.475 RPM
Feeding Speed-Stepless Range
0.025-63 IPM
Rapid Traverse
63 IPM
Scale Graduations
0.5 Degree
Number Of T-Slots
9
Distance Between T-Slot Centers
10"
Size Of T-Slots (W x D)
1.75" x 2.25"
Equipped With:
Fanuc 15M CNC Control (Retrofit 1997)
Various Right Angle Heads: Long Reach,
Short Reach, Universal, 4-Positon Right Angle
High Speed Head Attachment : 2400 RPM
1 Ton Jib Crane
(4) 78" x 157" x 16" Thick T-Slotted Floor Plates
98" x 98" Mitsubishi Infeeding Rotary Table
Power Draw Bar
Way Covers On X & Y Axes
Hardened & Ground Ways
Chip Conveyor
75 HP Spindle Drive
Overall Height: 366.14"
Weight: 187,000 lbs
Features:
✓
Fanuc 15M CNC Control (Retrofit 1997)
✓
Various Right Angle Heads: Long Reach,
✓
Short Reach, Universal, 4-Positon Right Angle
✓
High Speed Head Attachment : 2400 RPM
✓
1 Ton Jib Crane
✓
(4) 78" x 157" x 16" Thick T-Slotted Floor Plates
✓
98" x 98" Mitsubishi Infeeding Rotary Table
✓
Power Draw Bar
✓
Way Covers On X & Y Axes
✓
Hardened & Ground Ways
✓
Chip Conveyor
✓
75 HP Spindle Drive
