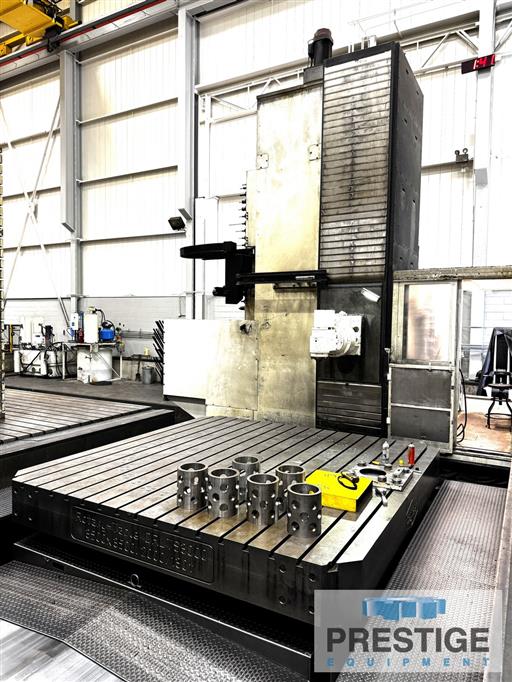

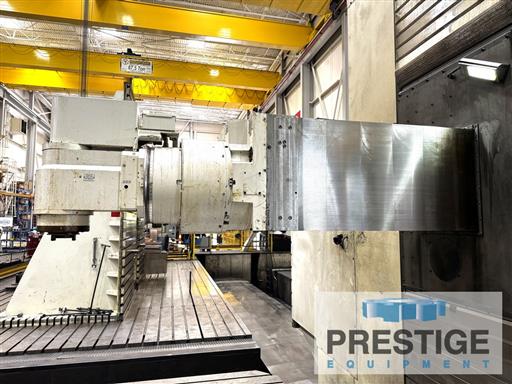

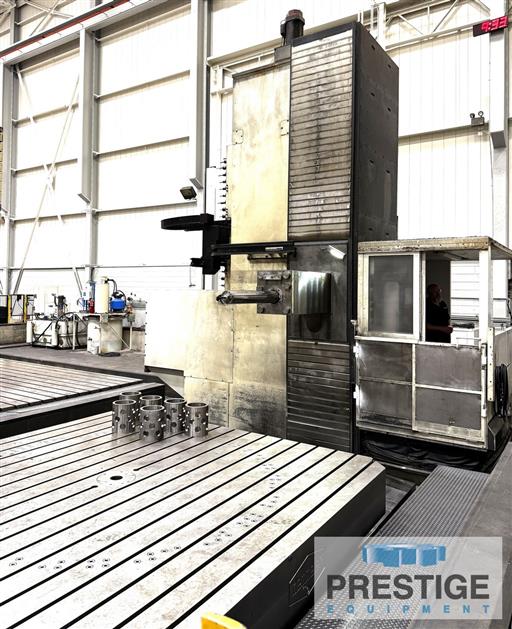

Giddings & Lewis FTR 3500, 6.1" CNC Floor Type Horizontal Ram Boring Mill
Model:
FTR 3500
Age:
2013
Ref#:
44905
Prestige Equipment is the world's leading provider of Giddings & Lewis FTR 3500, 6.1" CNC Floor Type Horizontal Ram Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Floor Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
Fanuc 31i CNC Controls w/ 15" Color LCD
✓
137.79" x 137.79" B-Axis Infeeding Rotary Table
✓
240-Station Automatic Tool Changer
✓
Floor Plates 394" x 197" x 9.8" Thick
✓
Auto Indexing Right Angle Milling Attachment Head
✓
High Pressure Coolant System
✓
Filtration System
✓
Thru-Spindle Coolant
✓
Standard Flood Coolant
✓
Renishaw Part & Tool Probe
✓
Chip Conveyor System
Product Specifications
SPECIFICATIONS:
Spindle Diameter
6.1"

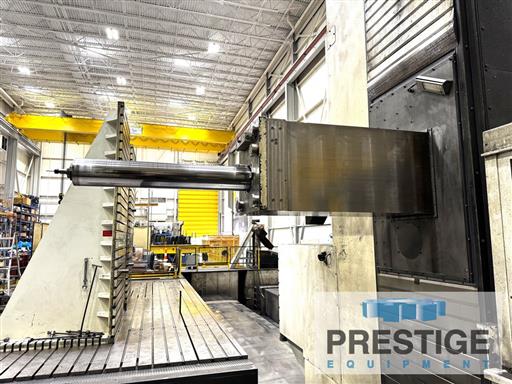

Ram Cross Section
18.7" x 21.6"
Spindle Taper
CAT 50 Big Plus
Headstock Travel, Y-Axis............... 157.5"
157.5"

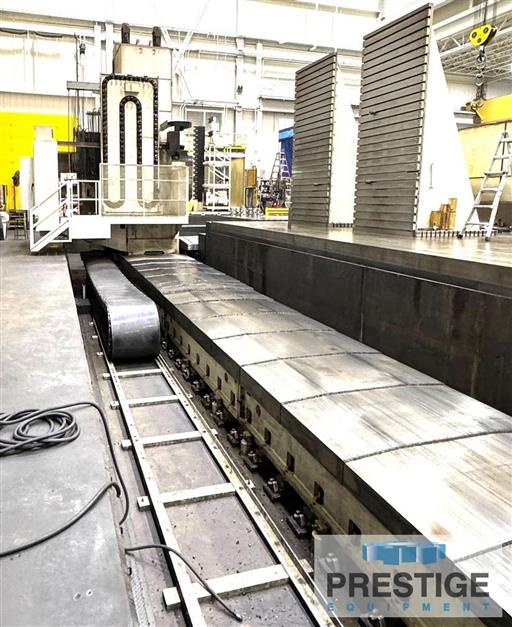

Column Travel, X-Axis
629.92"
Ram Stroke, Z1-Axis
39.4"
Spindle Stroke, Z2-Axis
39.4"
Ram & Spindle Combined Travel, Z1/Z2
78.8"
V-Axis Table Longitudinal Travel
94.4"
Spindle Speeds
1-3500 RPM
Spindle Speed Ranges
4
Spindle Motor
75 HP
Constant Torque
3100 Nm
Constant Torque Range
0-114 RPM
Traverse Rate
787 IPM

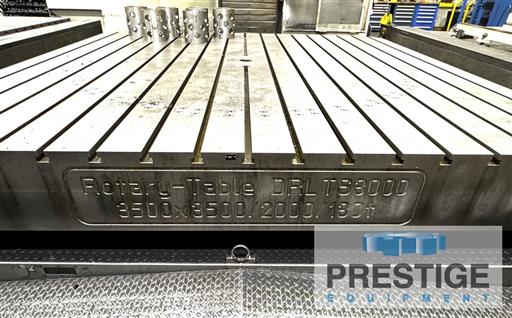

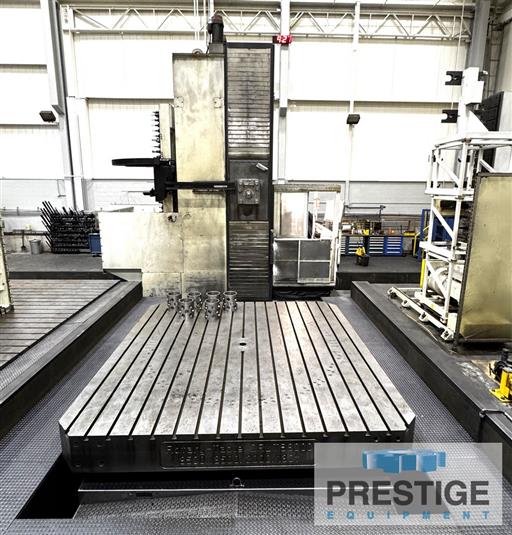

DEMMELER CNC INFEEDING B-AXIS ROTARY TABLE:
Brand
Demmeler
Table Size
137.79" x 137.79"
Table Infeed, Z-Axis
94.4"
Table Rotation, B-Axis
.001 dgrees
Table Table Rotation
1.5 RPM
Table Weight Capacity
220,000 Lbs.
Equipped With:

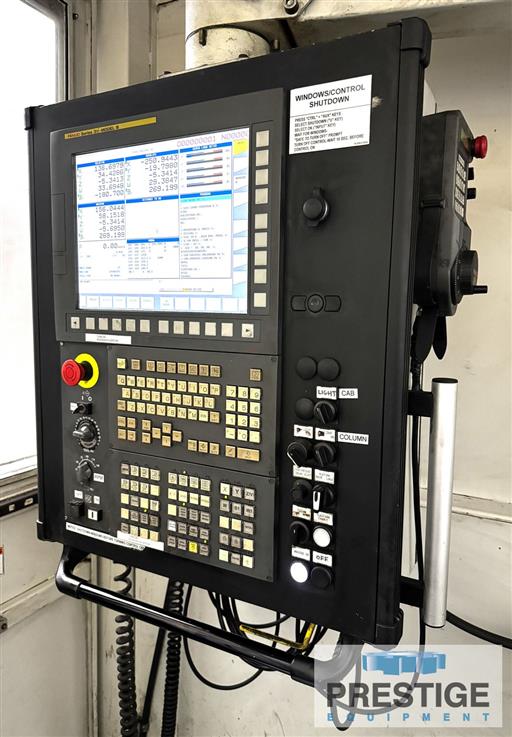

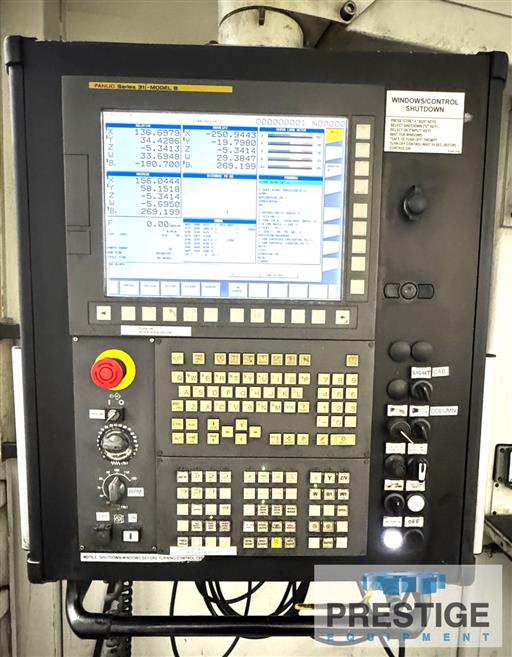

Fanuc 31i CNC Controls w/ 15" Color LCD
137.79" x 137.79" B-Axis In-feeding Rotary Table

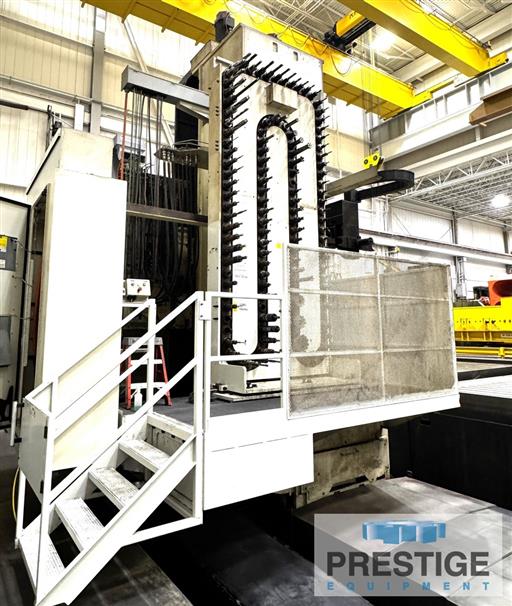

240-Station Automatic Tool Changer

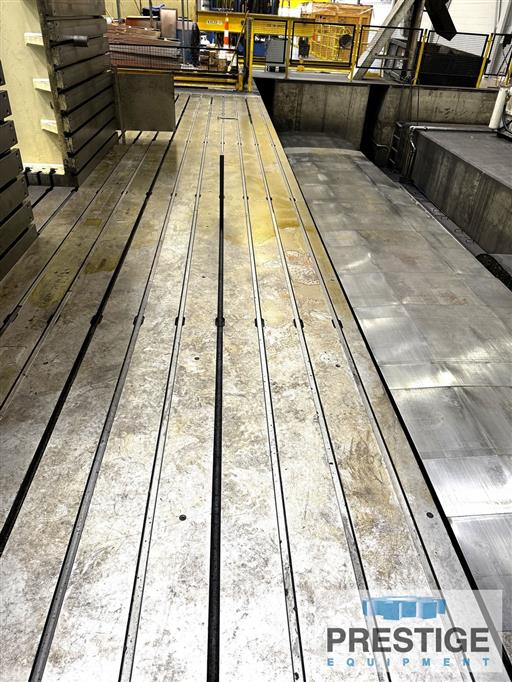

Challenge Precision T-Slotted Floor Plates 394" x 197" x 9.8" Thick

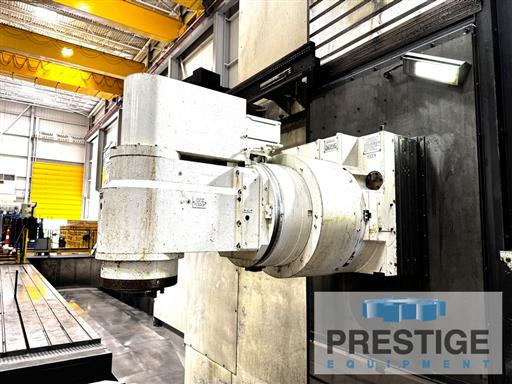

Auto Indexing Right Angle Milling Attachment Head
4 Position Attachment Rack

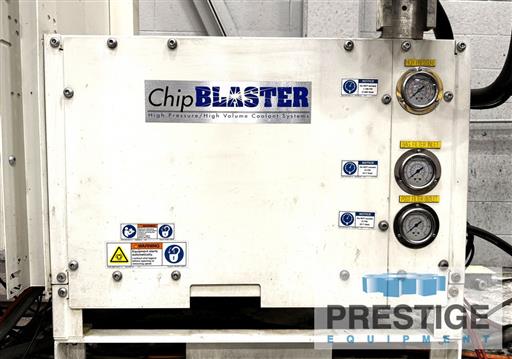

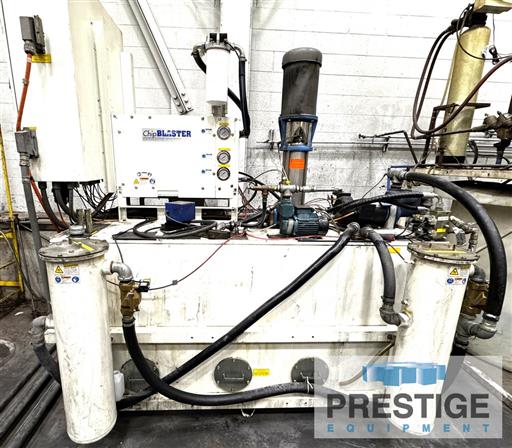

High Pressure Coolant System

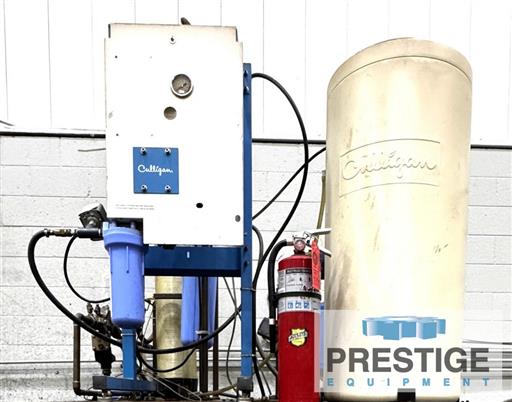

Filtration System
Thru-Spindle Coolant
Standard Flood Coolant
Renishaw Part & Tool Probe
Chip Conveyor System
Rigid Tapping
Remote Hand Help Pendant w/ MPG
Boom Mounted Operator System
Embedded Windows XP Operating System
Thread Cutting
99 Tool Offsets
Tool Nose Radius Compensation
Programmable Spindle Orient
Helical Interpolation
Tool Length Measurement
Cylindrical Interpolation
75 Spindle Spindle Motor
Note:
Inspect In Plant Under Power!
Features:
✓
Fanuc 31i CNC Controls w/ 15" Color LCD
✓
137.79" x 137.79" B-Axis Infeeding Rotary Table
✓
240-Station Automatic Tool Changer
✓
Floor Plates 394" x 197" x 9.8" Thick
✓
Auto Indexing Right Angle Milling Attachment Head
✓
High Pressure Coolant System
✓
Filtration System
✓
Thru-Spindle Coolant
✓
Standard Flood Coolant
✓
Renishaw Part & Tool Probe
✓
Chip Conveyor System
