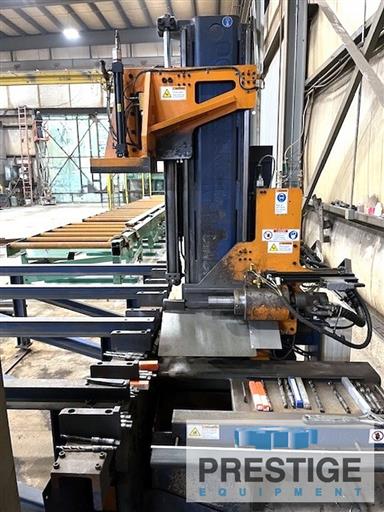

Peddinghaus Ocean Avenger II 1000-1B CNC Beam Drill
Model:
Av II 1000-1B
Age:
2009
Ref#:
44609
Prestige Equipment is the world's leading provider of Peddinghaus Ocean Avenger II 1000-1B CNC Beam Drill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Beam Drill Lines for sale.
Product Specifications
Features:
✓

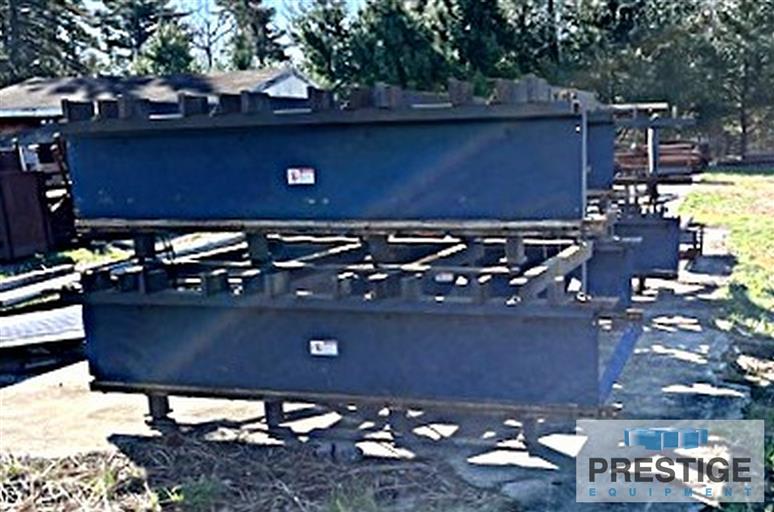

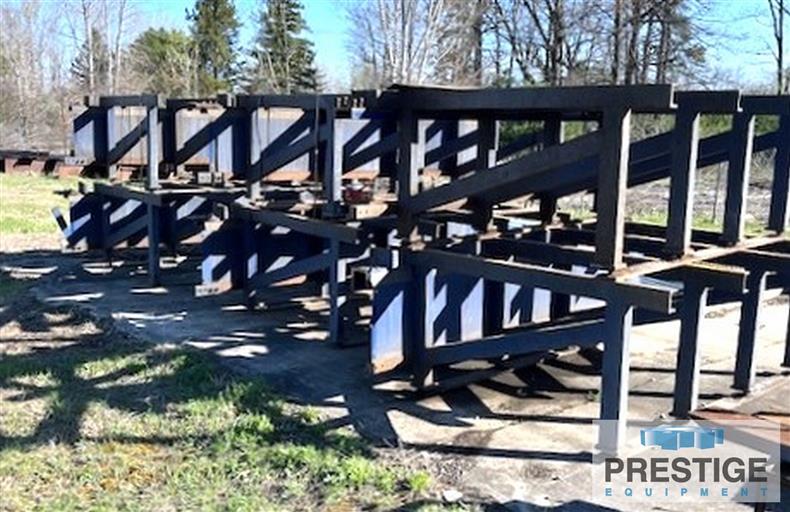

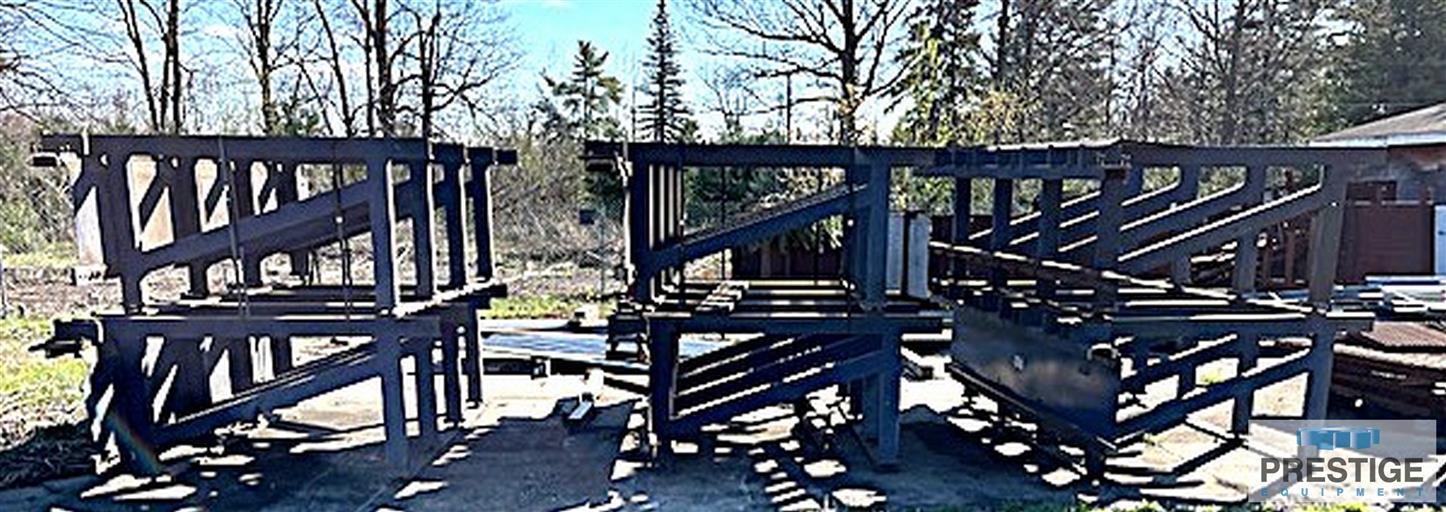

Bed Section For 60' Beams
✓
Siemens 840Di CNC Control
✓
Flood & Thru-Spindle Coolant
✓
Rush Drill Sharpener
Product Specifications
CAPACITY:
Maximum Beam Size, Up To 730 Lbs/ft
60' x 40"
Minimum Drill Diameter
1/4"
Maximum Drill Diameter
2"
Maximum Plate Thickness
10"
Maximum X-Axis Speed
120 FPM
Maximum Y-Axis Speed
120 FPM
Spindle Motor
13 3/4 HP
Drilling Speed, Variable,
0 - 545 RPM
Drilling Feed Rate, Variable
2" - 10 IPM
Spindle Stroke
13"
Main Motor Power
20 HP
Equipped With:

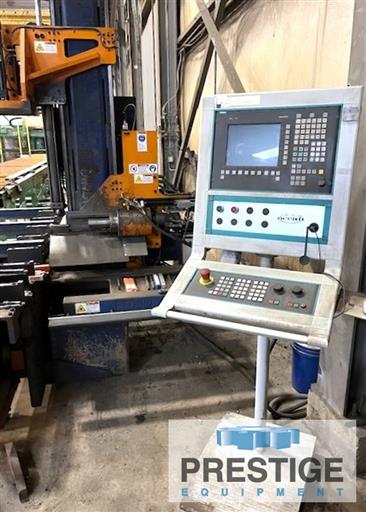

Siemens 840Di CNC Control

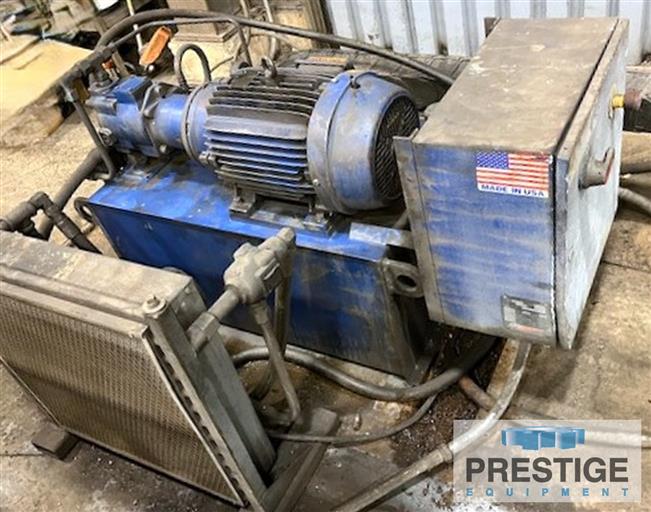

Hydraulic Spindle Drive
Flood & Thru-Spindle Coolant

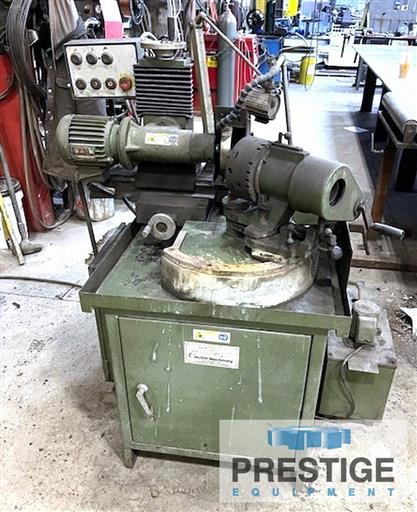

Rush 250A-CE Drill Sharpener

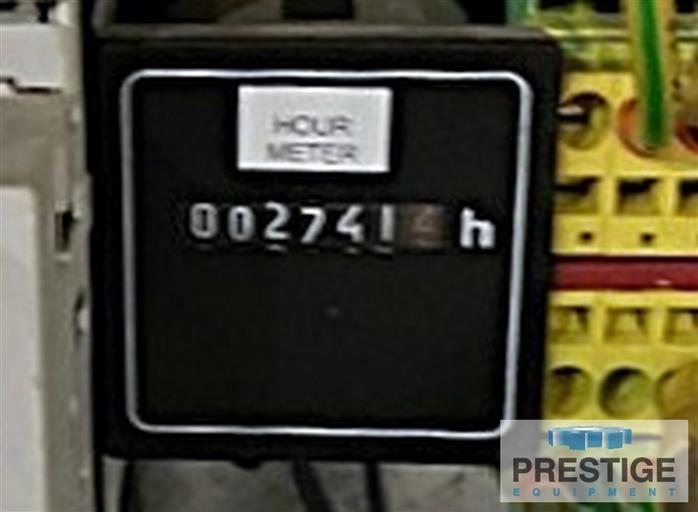

HOURS:
2741 HRS
NOTE:
Inspect in Plant Under Power
Features:
✓
Bed Section For 60' Beams
✓
Siemens 840Di CNC Control
✓
Flood & Thru-Spindle Coolant
✓
Rush Drill Sharpener
