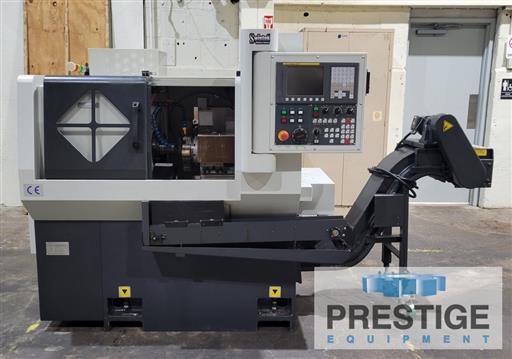

Swistek GT328DDY Swiss Type Automatic CNC Screw Machine
Model:
GT328 DDY
Age:
2018
Ref#:
43197
Prestige Equipment is the world's leading provider of Swistek GT328DDY Swiss Type Automatic CNC Screw Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Swiss CNC Automatic Screw Machines for sale.
Product Specifications
Features:
✓
Fanuc OiTF CNC Control
✓
8-Position Turret
✓
Chip Conveyor
✓
4-Position Side Tools
✓
4-Position Face Tools
Product Specifications
CAPACITY:
Maximum Swing Over Bed................. 19.68"
19.68"
Standard Turning Diameter
1.259"
Maximum Bar Capacity
1.259
Maximum Turning Length
4.72"
X-Axis Stroke
7.87"
Z-Axis Travel
7.87"
Y-Axis Travel
3.937"
X/Z Axis Traverse
629.9 IPM
Positional Accuracy
0.0001968"
Spindle Motor
4.9 HP
Spindle Speeds
50-6,000 RPM
Approximate Dimensions
73" x 60" x 67"
Approximate Weight
3,850 Lbs
Equipped With:
Fanuc OiTF CNC Control
8-Position Turret
Chip Conveyor
4-Position Side Tools
4-Position Face Tools
Features:
✓
Fanuc OiTF CNC Control
✓
8-Position Turret
✓
Chip Conveyor
✓
4-Position Side Tools
✓
4-Position Face Tools
