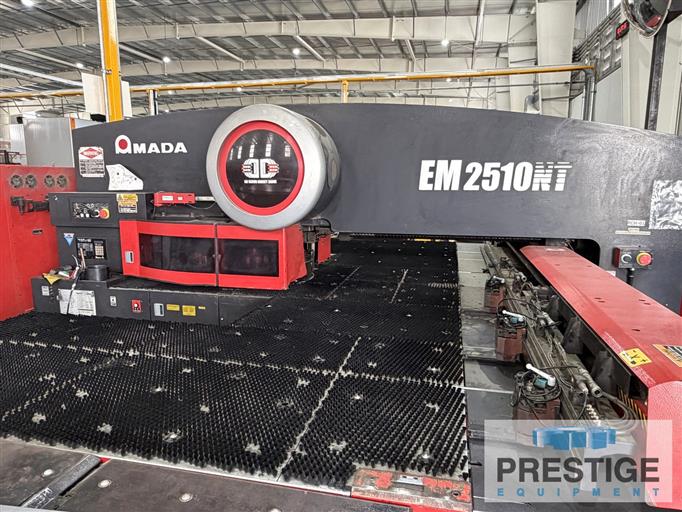

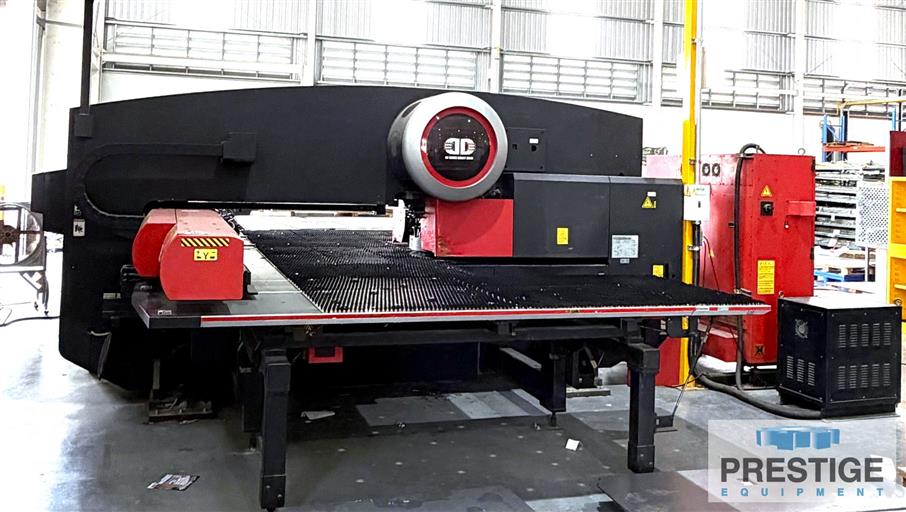

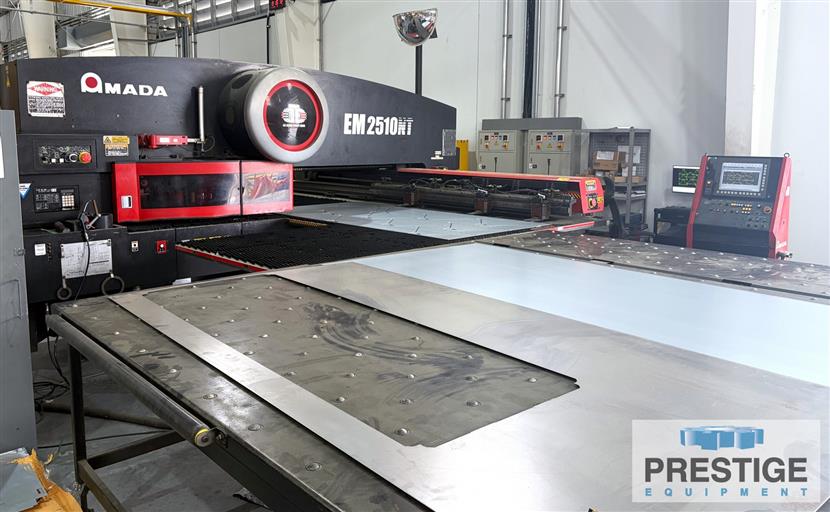

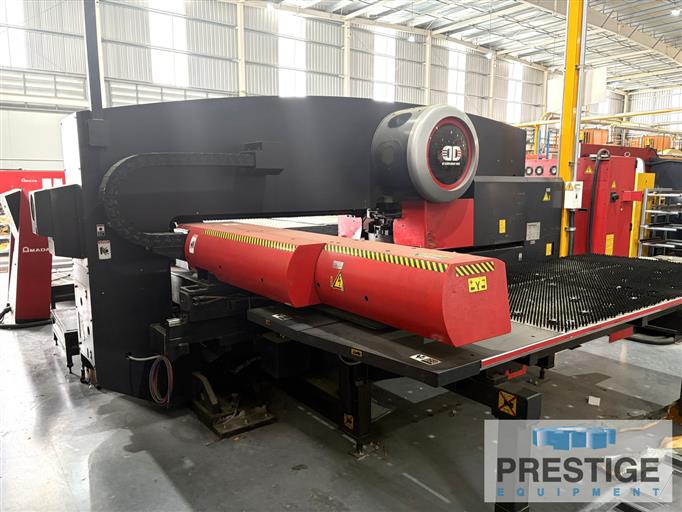

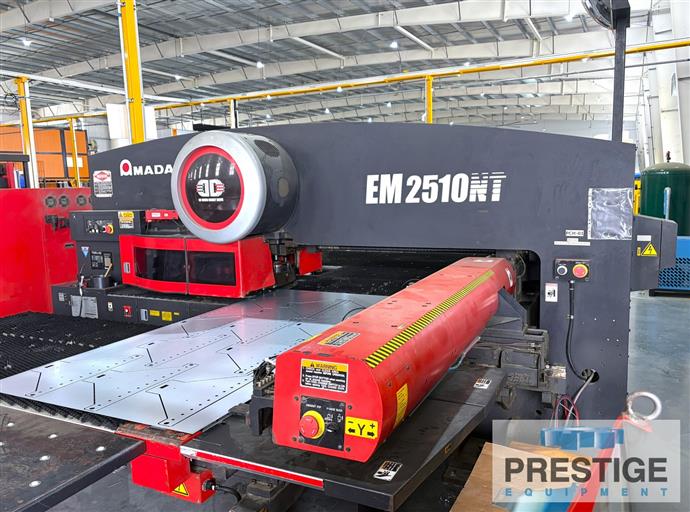

22 Ton Amada EM2510NT Servo Electric CNC Turret Punch Press
Model:
EM2510NT
Age:
2012
Ref#:
45006
Prestige Equipment is the world's leading provider of 22 Ton Amada EM2510NT Servo Electric CNC Turret Punch Press & machine tools & fabricating equipment. Take a look at our wide selection of new and used Punch Laser Combination Turret Punches for sale.
Product Specifications
Features:
✓
AMNC PC Based Control
✓
45 Station Thick Turret
✓
Brush Table Design
✓
Tool Holders and Tooling
Product Specifications
CAPACITY:
Tonnage Capacity
22 Tons
Table Travel
50" x 100"
Throat Depth
52"
Maximum Material Thickness
1/8"
Maximum Punch Diameter
4-1/2"
Hit Rate 1" Pitch, .197" Stroke
500 HPM (X-Axis)
Hit Rate 1" Pitch, .197" Stroke
330 HPM (Y-Axis)
Hit Rate .040" Pitch, .197" Stroke
780 HPM (X-Axis)
Hit Rate .040" Pitch, .197" Stroke
515 HPM (Y-Axis)
X-Axis Positioning Speed
3,950 IPM
Y-Axis Positioning Speed
3,150 IPM
Stroke Length
1.65"
Machine Weight
44,000 Lbs
Equipped With:

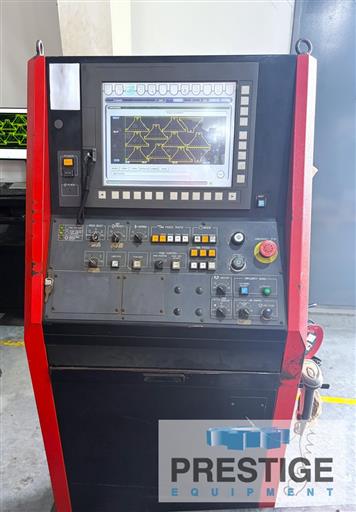

Fanuc AMNC-PC CNC Control
AC Servo Driven Punch Ram

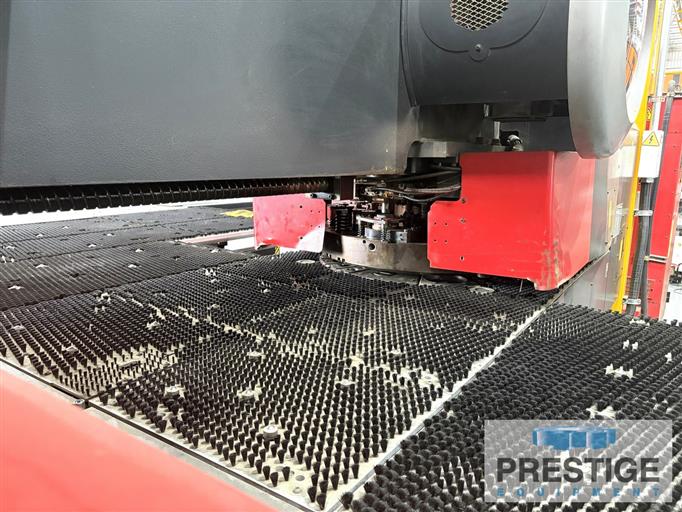

Brush Table Design

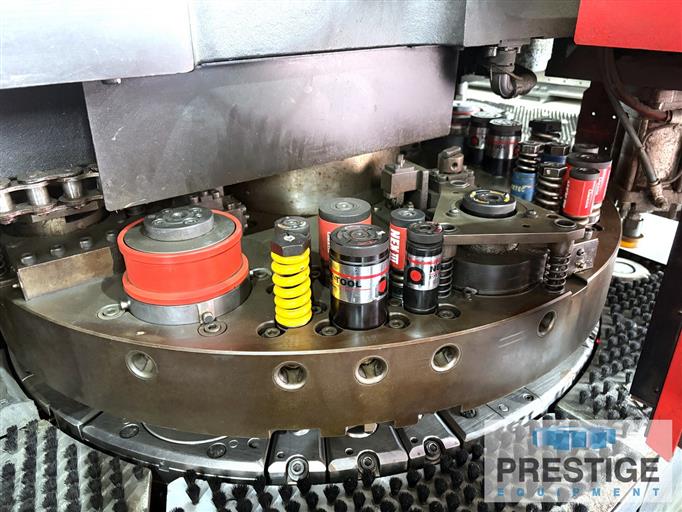

45 Station Thick Turret
(2) 1-1/4" Auto Index Stations
(2) 2" Auto Index Stations
Auto Sheet Repositioning
Tool Holders and Tooling
NOTE:
Operating Time; 10,567 Hours
Features:
✓
AMNC PC Based Control
✓
45 Station Thick Turret
✓
Brush Table Design
✓
Tool Holders and Tooling
