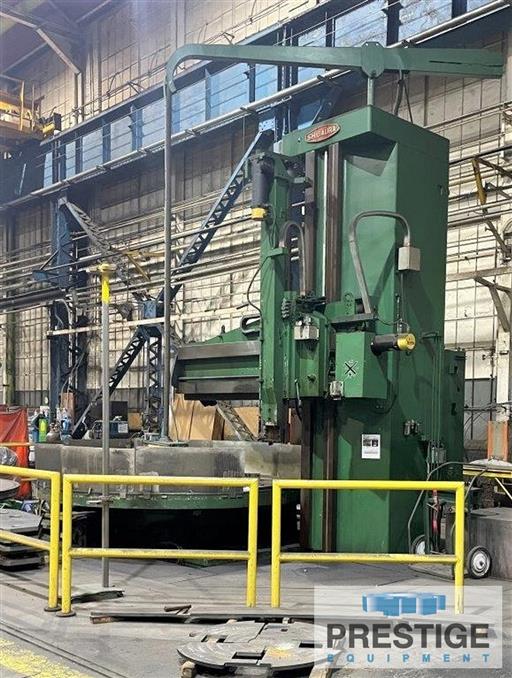

Toshiba TSS 30/55 A 2997 MM /5486 MM CNC Vertical Boring Mill w/Sliding Column

Model: TSS30/55A
Age:
Ref#: 32559
Category: Boring Mills, Vertical, CNC

Specifications:

FEATURES:
Openside with Sliding Table:
Table Diameter: 3000 MM
Maximum Swing: 5500 MM
Maximum Swing For Center Turn: 4000 MM
Maximum Height Under Rail: 2789 MM
Vertical Travel of Cross Rail......... 1550 MM: 1550 MM
Ram Stroke: 1001 MM
Table Speeds: 2.5 to 80 RPM
Feeds: .0008-.8 IPR
Table Weight Capacity: 16012 KG
Machine Weight Approx:: 38555 KG

Equipped With:
3000 MM T-Slotted Table W/4-Face Plate Jaws
General Numeric GN6 CNC Controls
Hitachi SJ700 Drives (Updated)
Fanuc Servo Drive Motors
Pendant Mounted CRT
37 KW Table Drive 3/60/440 Volt
