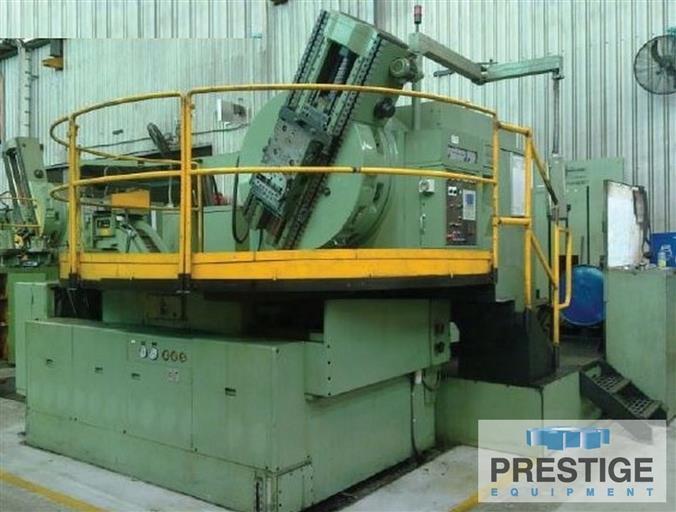

Maag Gear SH250 Gear Shaper 32021

Model: SH250
Age:
Ref#: 32021
Category: Gear Shapers

Specifications:

FEATURES:
Siemens Simatic HMI:
Siemens S7-300 PLC:
Siemens 71 KW Ram Motor:
Siemens 611U Drives:
Siemens 48Nm X-Axis Servo Motor:
Heidenhain LC182 Linear Scale on X-Axis:

SPECIFICATIONS:
Ram Stroke, Max,: 27.55"
Ram Stroke, Min: 2.75"
TOP AND BOTTOM OVERRUN OF CUTTER: .78" - 1.37"
RAM SPEED, CUTTING AND RETURN: 157.48 1574 IPM
MAX. GENERATING PATH OF WORK TABLE: 43.3"
DIAMETER OF INDEXING WORM GEAR: 43.93"
DIAMETER OF WORK TABLE BORE: 16.53"
MAX. WORK TABLE BORE SHAFT LENGTH: 47.24"
MAX. TOTAL WEIGHT OF WORK AND FIXTURE . 15000kg:
WORK TABLE, TOP FACE ABOVE BASE: 49.21"
X-AXIS TRAVERSE SPEED: 0 to 78.74 IPM
X-AXIS TRAVEL DISTANCE: 49.21"
GENERATING FEED, NO. OF RAM STROKES.... .31" to 1505.9" Per Pitch: .31" to 1505.9" Per Pitch
CARRIAGE INFEED, PLUNGE CUTTING: 0.0003" to 0.019" Per Stroke
CUTTER HOLDER SLOT, LxWxD: 11.25" x 1.96" x 2.63"
MAX. CUTTER LENGTH: 12.28"
MAX. MODULE WITH RACK TYPE CUTTER: 30
MIN. MODULE WITH RACK TYPE CUTTER: 2
MODULE WITH SINGLE TOOTH CUTTER: 50
MAX. NUMBER OF TEETH: 1000
MIN. NUMBER OF TEETH: 12
MAX. HELIX ANGLE: unlimited
MAX. TIP CIRCLE DIA., SPUR GEARS: 98.42"
MIN. TIP CIRCLE DIA., SPUR GEARS: 7.87"
MAX. FACE WIDTH: 25.98"

Equipped With:
Siemens Simatic HMI
Siemens S7-300 PLC
Siemens 71 KW Ram Motor
Siemens 611U Drives
Siemens 48Nm X-Axis Servo Motor
Heidenhain LC182 Linear Scale on X-Axis
