The Shaw Group – Structural Steel Fabrication and Plate Blasting Line

Surplus Assets to the Ongoing Operations of Major Module Fabrication Shop - Featuring Peddinghaus PCD 1100/3C-ATC Beam Drill/Saw Line with Conveyor and Transfers, Ficep Beam Drill/Saw Line with Conveyor and Transfers, Ficep A204-T 8” x 8” x 1” Angle Processing Line, Peddinghaus Ocean Liberator Beam Coping Line, Wheelabrator 122” Horizontal (8) Wheel Plate Blast Line, Plate Bevelers, Iron Worker, Huge Amount of Heavy Duty Material Conveyor and Transfer Systems
April 26th, 2023
12:00 PM ET (11:00 AM CT)
Lake Charles, Louisiana
View Brochure Share Print
Contact for Sale
Frank DiSalvo
Email Me
631-249-5566
Inspection Date
Monday, April 24th & Tuesday, April 25th
In Conjunction With
Prestige Auctions
Sale Information



FEATURED ASSETS:



PEDDINGHAUS BEAM DRILL SAW LINE:

  • Peddinghaus PCD-1100/3C-ATC ADVANTAGE 2 Beam Drill, Siemens CNC Control, (3) Drill Heads each with (5) Station ATC, Thru Tool Coolant (Unist MQL), 25 HP Motor, 44” Maximum Beam, 1-9/16” Maximum Drill Dia., 50-2250 RPM Spindle Speeds, 130 FPM X-Axis Feed Rate, Signo-Script Layout Marking Attachment, S/N: 99212, Mfg. Date: 2011 , [Only 6,425 Hours] VIEW LOT #8
  • Material Handling with Drill; Roller Conveyor, 120’ x 54” x 3.5” Dia.  Peddinghaus 300 Lb./Foot Roller Conveyor, Material Transfers, (4) 20’ Peddinghaus Material Transfers with Control Stand
  • Note: The material handling system will be sold with the PCD-1100-3 Drill

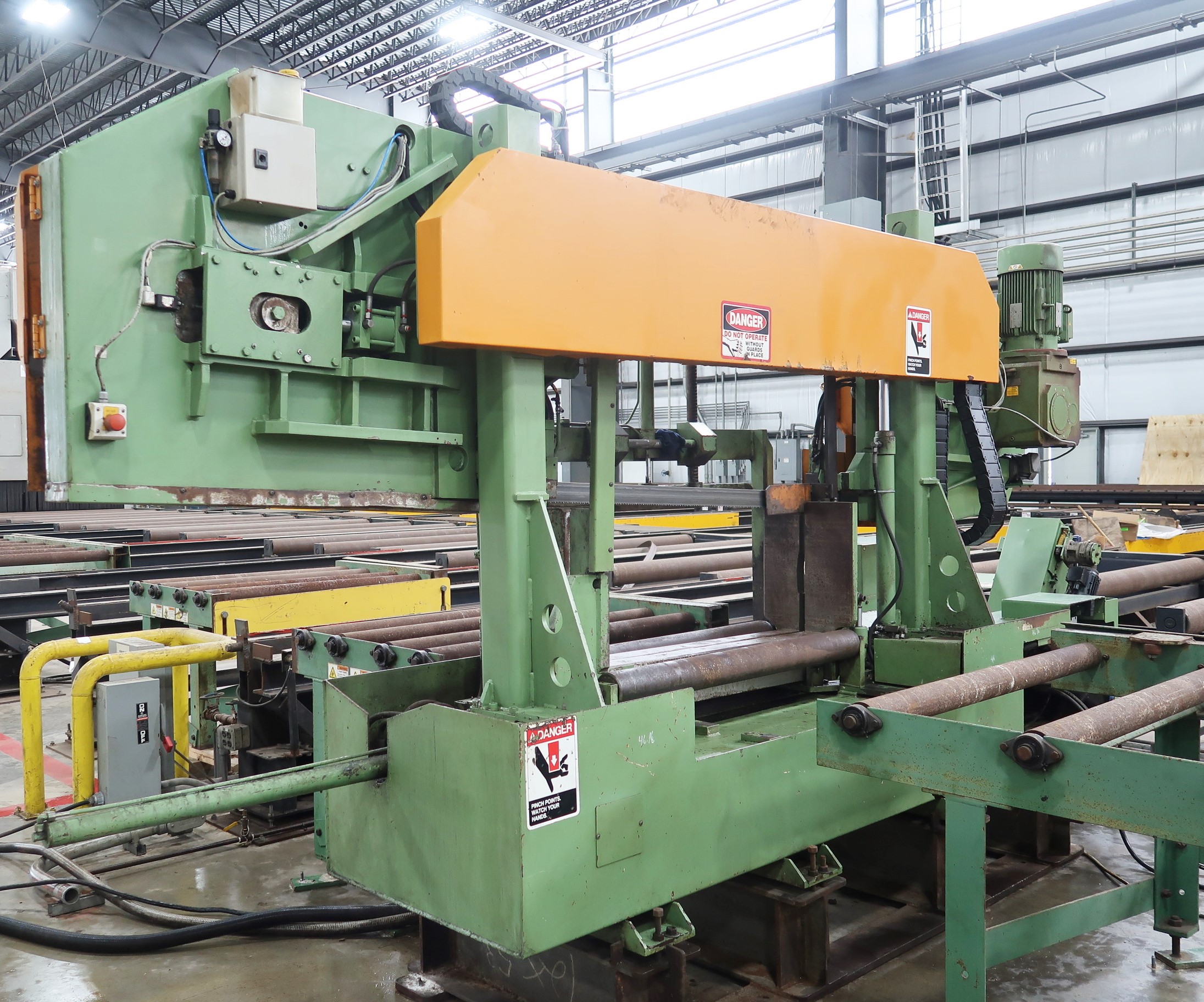

  • Peddinghaus (Meba) 1250-510 Horizontal Band Saw, new 2008, 49″ x 20” Max. Cutting Capacity at 90 Deg., 49″ x 6″ Max. Plate Dimension, 20″ Max. Round Cut Cap., 20 HP Drive Motor, Siemens Simatic PP17 Control, 2.64 Blade, S/N: 18094 VIEW LOT #9
  • Note: Band Saw will be sold separately

FICEP BEAM DRILL SAW LINE:

  • Ficep 1201 DFB Beam Drill Line, 48” x 20” Max. Beam, 180 Degree Rotary Drill Head with Tool Changer, 20 HP, 3” Max. Thickness, 1-9/16” Max. Drill Hole Dia., 18-2500 RPM Spindle Speeds, Ficep Minosse CNC Control, Note: Control Upgrade 2023, S/N: 32135, Mfg. Date: 2009 VIEW VIDEO / LOT #12A
  • Ficep K100 Horizontal Band Saw with Mitering Option, 40” x 17.7” @ 90 Deg., 24.4 x 15.9” @45 Deg., 196 – 558 FPM Band Blade Speed, 12 HP Motor, Small Parts Off Loading Conveyor, Mfg. Date: 2009 VIEW VIDEO / LOT #12B
  • Ficep Roller Conveyor, 60’ x 54” x 4” Dia. In-Feed Conveyor, 100’ x 54” x 4” Dia. Out-Feed Conveyor VIEW LOT #12C
  • Ficep Material Transfers, (7) Ficep Lift and Carry Material Transfers on In-Feed, (5) Material Transfers on Out-Feed VIEW VIDEO / LOT #12D
  • Note: The above Ficep Drill/Saw Line will be offered separately and as a full line

PLATE BLASTING LINE:

  • Wheelabrator Horizontal Plate Blasting Line, Model RB3000-15.4/8/18.8, (8) Titan 25 HP Blasting Wheels, (4) Top, (4) Bottom, 10’4” Maximum Plate Width, 2” Maximum Plate Processing Thickness, 19” Maximum Work Piece Height, S/N: 601209, Mfg. Date: 2009 [Only 456 Blast Time Hours] VIEW LOT #10
  • In-Feed Roller Conveyor, 65’ x 124” Wide Heavy Duty In-Feed Roller Conveyor, (7) 32’Heavy Duty Lift and Carry Material Transfers
  • Out-Feed Roller Conveyor, 120’ x 124” Wide Heavy Duty Out-Feed Roller Conveyor

ANGLE PUNCH & SHEAR LINE:

  • Ficep A204-T Angle Punch and Shear Line, 8” x 8” x 1”, (2) Punch Per Leg, Max. Speed of Angle 131 FPM, Max. Gauge Line Positioning Speed 23 FPM, 112 Ton Punch Capacity, 1-1/4” Max. Punch Diameter, 505 Ton Shear Capacity, Gripper Type Infeed, 60’ In-Feed Conveyor, (4) Material Transfers for Loading Angle, 20’ V-Roller Out-Feed Conveyor, 38 Position Marking Unit, (1) Notching Station, Minosse CNC Control, S/N: 30982, Mfg. Date 2009 VIEW VIDEO /  LOT #11

BEAM COPING LINE WITH CONVEYOR & TRANSFERS:

  • Peddinghaus Ocean Liberator SACM-1250A 5-Axis CNC Beam Coping Machine, 44” x 24” Max. Profile, 48” Max. Plate Width,5-Axis Oxy Acetylene Torch, 46” X-Axis Travel, 76” Y-Axis Travel, 30” Z-Axis Travel, 270 Degree B-Axis, Bevel Angle, 270 Degree C-Axis, Siemens CNC Control, S/N:78107, Mfg. Date: 2010 VIEW VIDEO /  LOT #13
  • Roller Conveyor & Transfers, 45’ x 48” x 3.5” Dia. 300 Lb./Ft. In-Feed Roller Conveyor, W/(4) Material Transfers, 50’ Out-Feed Conveyor W/(2) Material Transfers, Hydraulic Power Unit and Controls VIEW LOT #14
  • Note: Roller Conveyor and Transfers will be offered separately and as a line

PLATE BEVELERS, IRON WORKER, BENDING ROLL:

  • Piranha P120 Iron Worker, 120 Ton Punch, 6” x 6” x 5/8” Angle, 2” Round Bar, 1” x 12”, ¾” x 18”, ½” x 20” Flat Bar, 4” x 6” x 3/8” Coper Notcher, S/N: 1069 VIEW LOT #6
  • Imcar Curvatrici TSIH 3/3 Plate Bending Roll, 78.7” roll length, 12 ga. Max. material thickness, 3-roll design, 2 driven rolls, S/B: B2492, Mfg. 1998 VIEW LOT #5
  • Steelmax SMDBM50 Double Sided Plate Beveling Machines, 5/16” – 3-1/8” Plate Range, 15–60-degree bevel, 180 Degree Inversion for Double Sided Bevels, (2) Available, S/N’s: 219-14 & 220-14, Both Mfg. 2014 VIEW LOT #1 / VIEW LOT #2
  • Germina MMB 400 Stationary Edge Milling Machine, 20 mm Max. Bevel Width, 100 mm Max. Work Piece Height, 5.5/7.5 Milling Motor, 2000/6000 RPM, Ball Caster Table, S/N: 11009-00082, Mfg. 2011 VIEW LOT #3
  • Hem V100LM-3 Vertical Band Saw, 18” x 22” Capacity, Tilt Frame, 5 HP, 1.25” Blade, S/N: 777101 VIEW LOT #4
