VERTICAL BORING MILL

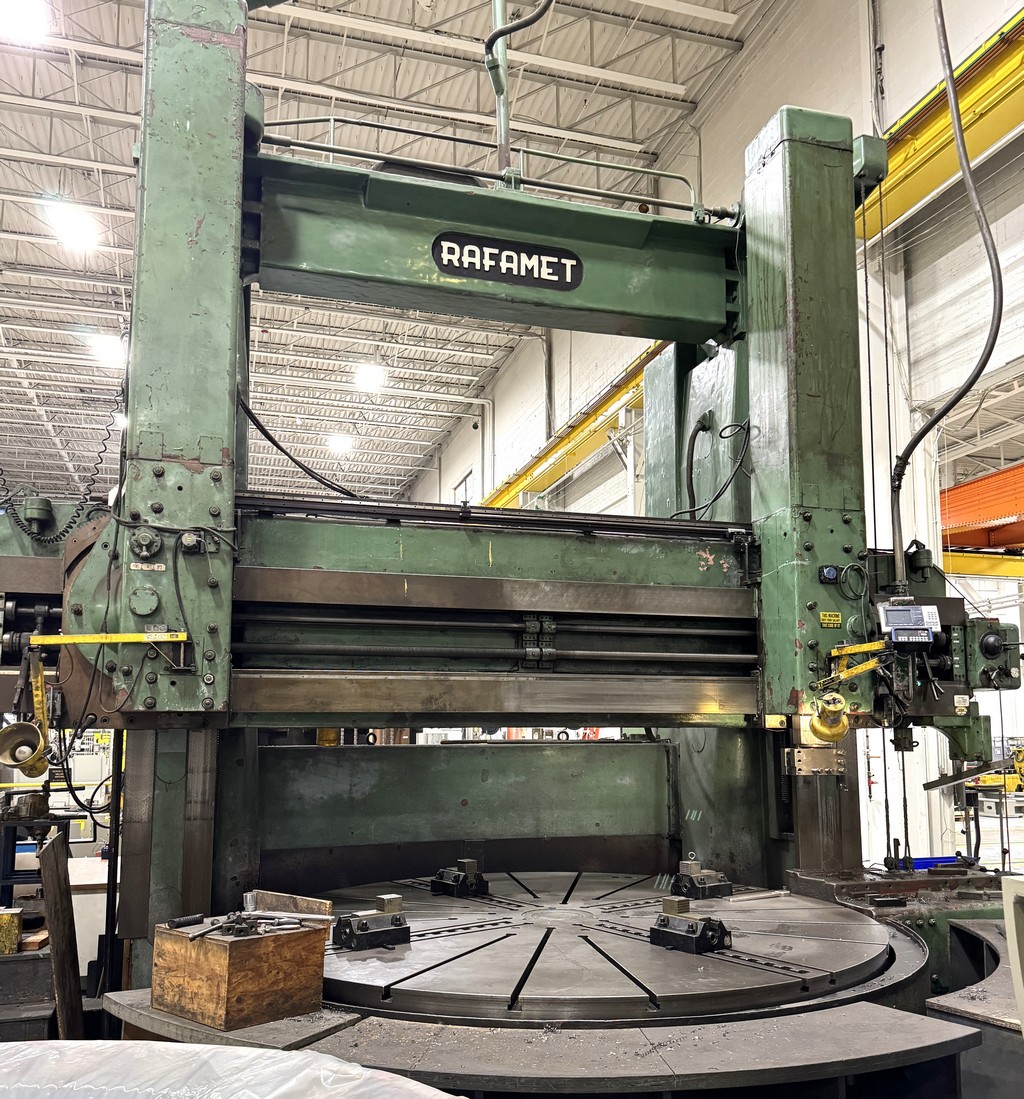

• Rafamet KCFB-320 Vertical Boring Mill, 125.98” Table Diameter, 137.79” Max. Turning Diameter, (2) Rams, Side Head, 39.4” Ram Stroke, +/- 30 Degrees Ram Swivel, 98.4” Height Under Rail, 0.8-40 RPM Table Speeds, 55,000 Lbs. Table Capacity, Pendant Controls, 2-Axis Quadra Check Digital Readouts, Threading & Taper Turning, 75 HP Table Motor, S/N 126240


CNC LATHES

• 52” x 372” Gurutzpe B1800/3 CNC Lathe, Fanuc Oi-TD CNC Control, 52” Swing Over Bed, 372” Between Centers, 36” Cushman 4-Jaw Independent Chuck, 41” Swing Over Carraige, Spindle Speeds 1-300 RPM, 4.33” Spindle Bore, Sauter 4-Position Turret, 48,400 Lbs. Weight Capacity (Unsupported), 70,500 Lbs. Weight Capacity (2 Steadies), Hydraulic Tailstock, (3) Roller-Type Steady Rests, Full Length Scale on Z-Axis, Hennig Chip Conveyor [CNC Retrofit 2010]

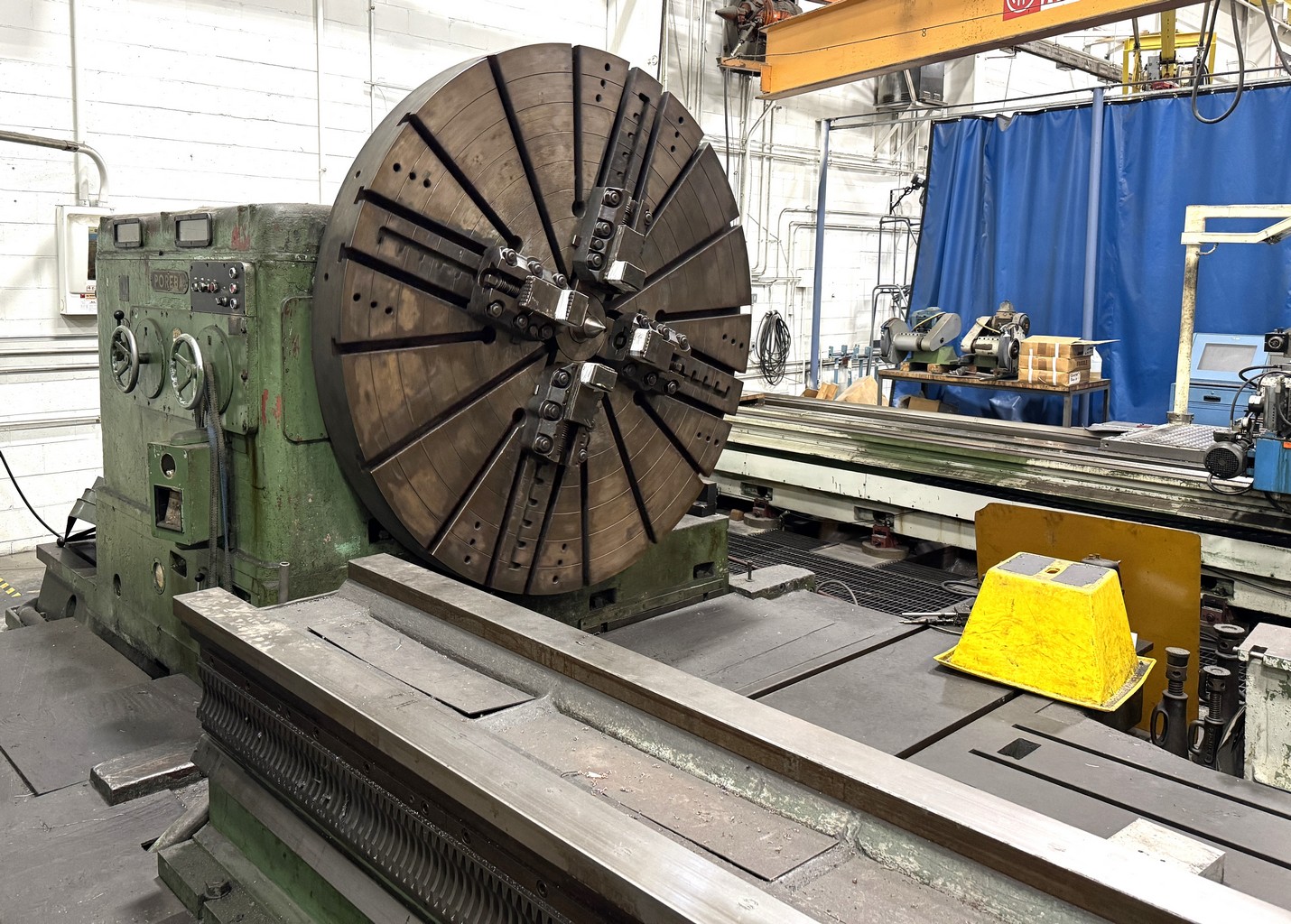

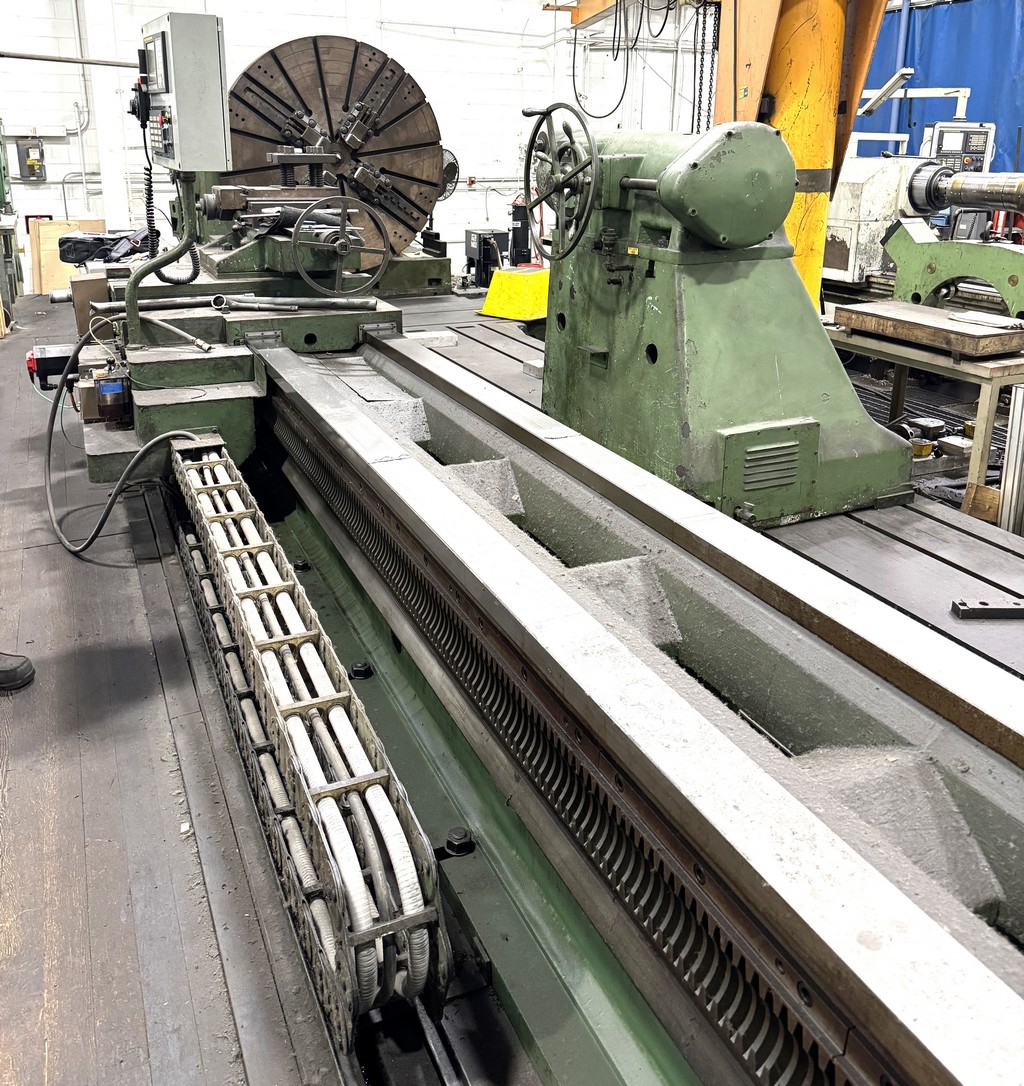

• Poreba TZB-250 CNC Heavy Duty Modular Lathe, Fanuc Oi-TF CNC Control with MPG Pendant (Retrofit 2015), 78.74” 4-Jaw Face Plate Type Chuck, 98.42” Swing Over Bed, 314.96” Maximum Turning Length, 125.98” Maximum Swing Over Gap, Spindle Speeds 0.5-1000 RPM, 4.13” Spindle Bore, 4-Way Tool Post, 35,275 Lbs. Approx. Weight Capacity (Unsupported), Power Tailstock, Open Steady Rest, 75 HP Spindle Motor, S/N 1132 070 [CNC Retrofit 2015]


HORIZONTAL BORING MILL

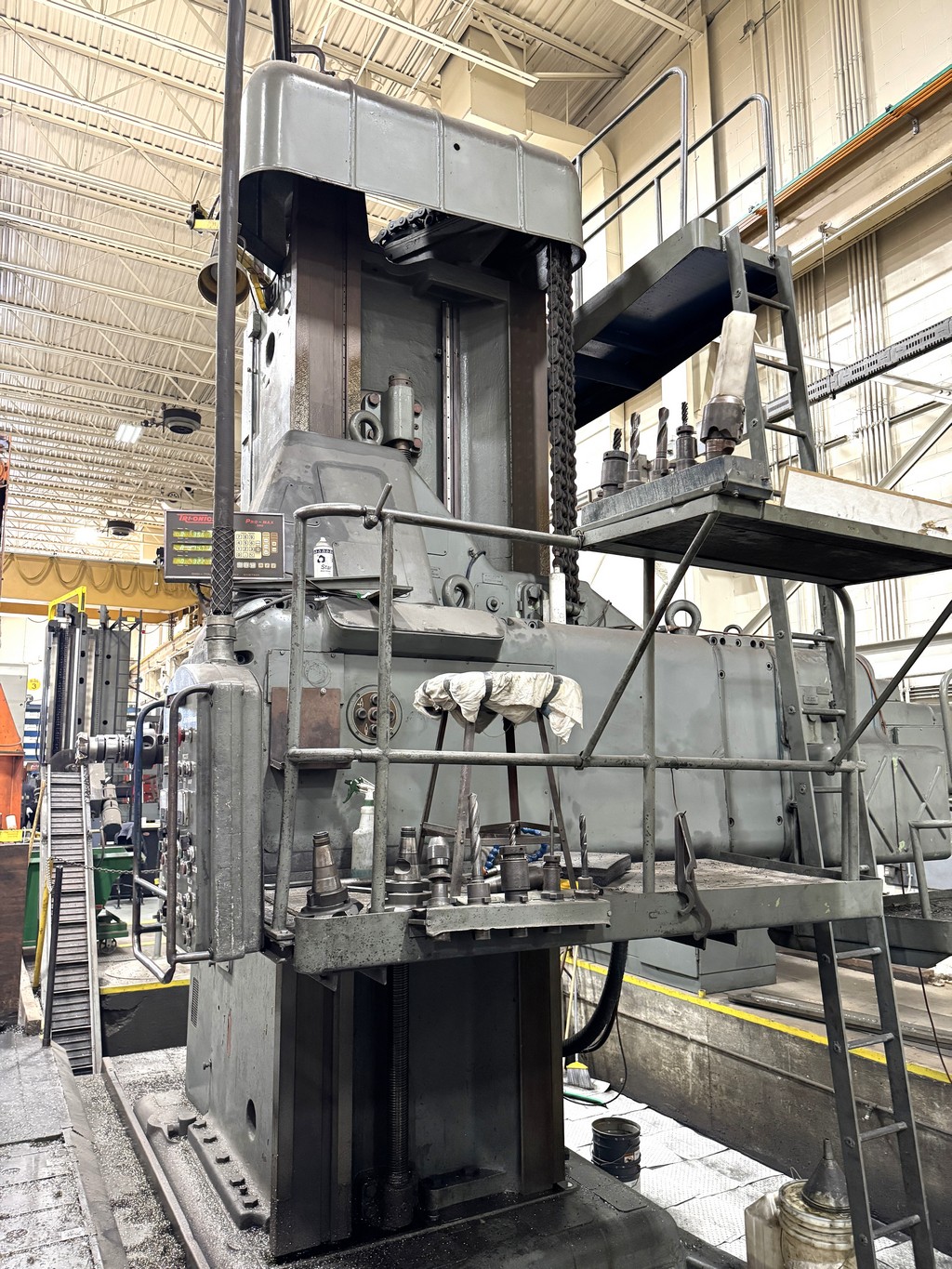

• 6.3″ Skoda WD160/200 Ram-Type Horizontal Boring Mill, Travels: X-126″, Y-98.42″, Z (Ram)-49.21″, W (Spindle)-63”, Total Axial Travel Ram & Spindle 112.2”, Spindle Speeds to 800 RPM, Full Pendant Controls, 3-Axis Trionics Digital Readout, Right Angle Head, 17.71” x 17.71” Ram Cross Section, Assortment of Heavy Duty T-Slotted Riser Plates (May Be Sold Separately), Chip Conveyor, 55 HP Spindle Motor [NOTE: Floor Plate is not Included]

CNC PLANER MILL

• 72” x 72” x 480” Ingersoll CNC Planer Mill, Mitsubishi M70 CNC Control (Retrofit 2010), 480” x 64” T-Slotted Table, 72” Between Housings, 72” Height Under Rail, Spindle Speeds to 320 RPM, (2) 50 HP Vertical Milling Heads, (2) Slotting Attachments, (2) Angle Heads, (2) Speed Increaser Heads, Miscellaneous Tooling & Rotary Slotting Cutters S/N 22681 [Note: Machine In Production Use for Milling & Slotting of Turbine Shafts] [Note: Indexing Mechanism on Table Not Available]


ADDITIONAL EQUIPMENT

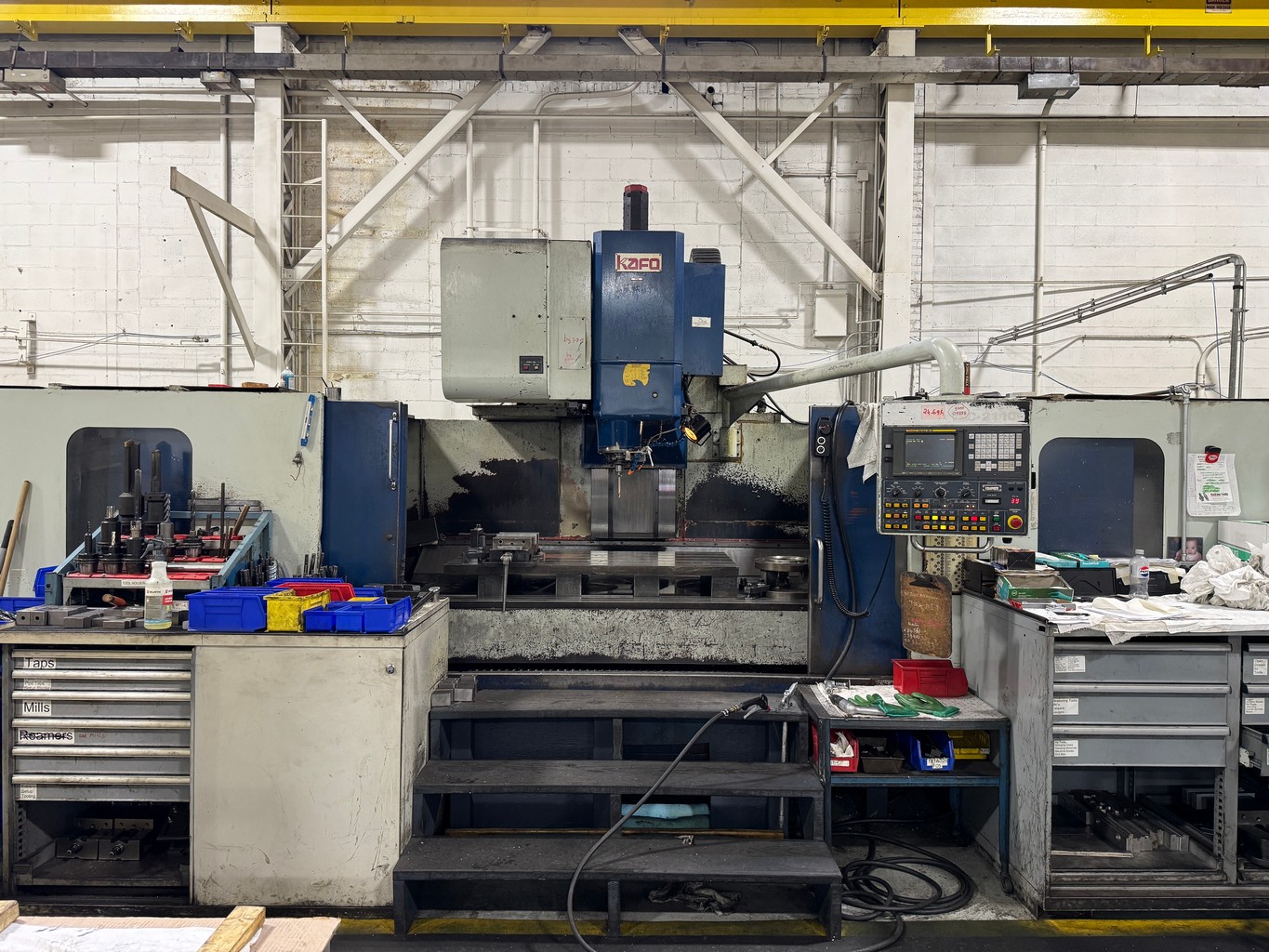

• Kafo VMC-2100 CNC Vertical Machining Center, Fanuc 18-M CNC Control, 94.4” x 39.4” T-Slotted Table, Travels: X-84”, Y-39”, Z-31.4”, Spindle Speeds to 5,000 RPM, 40 ATC, CAT 50 Taper, Chip Conveyor, Flood Coolant, S/N 035201 [2002] [Note: Spindle Rebuilt 2023]

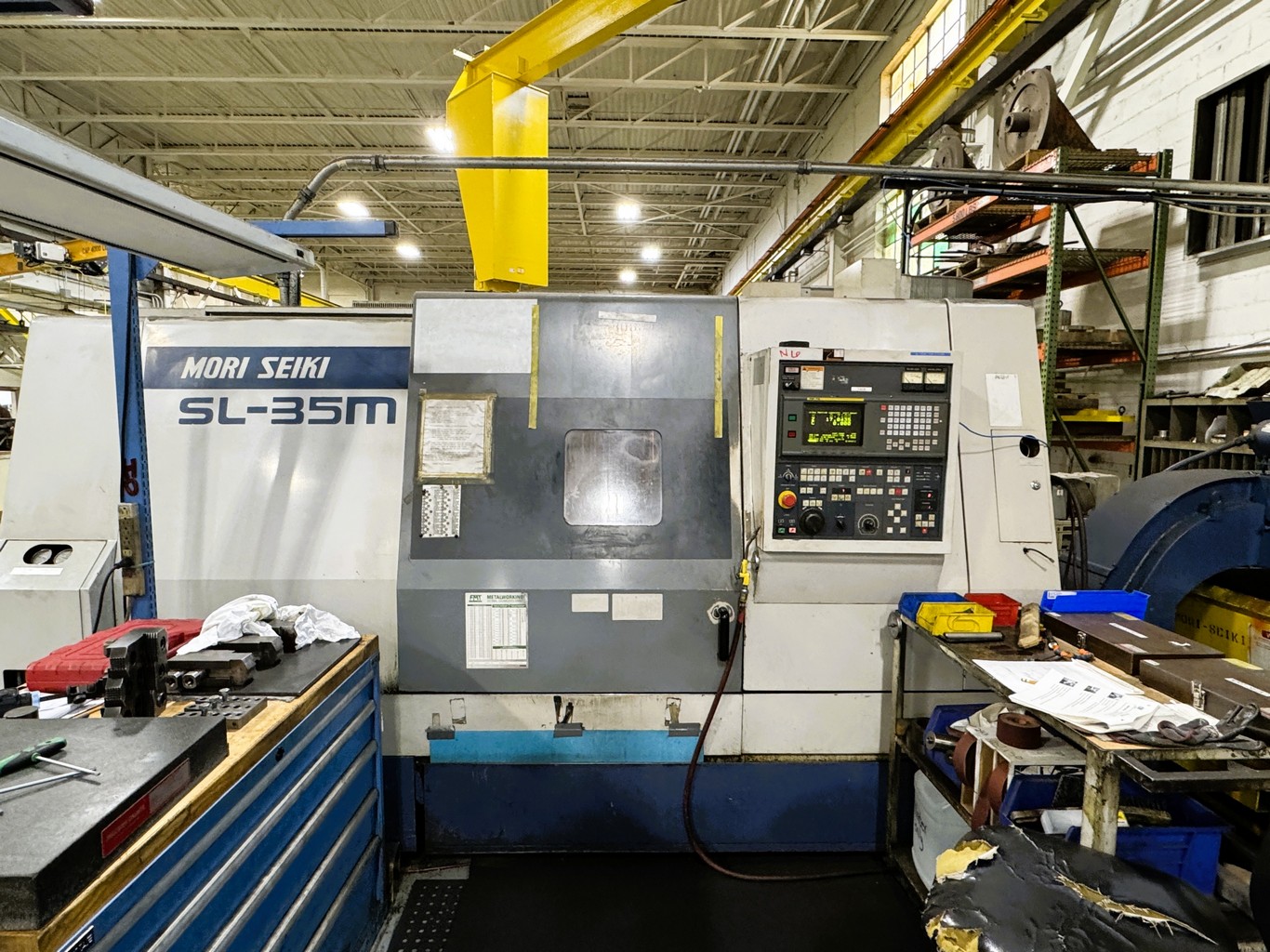

• Mori Seiki SL-35MC CNC Turning Center, Mori MF T6 CNC Control, 15” 3-Jaw Chuck, 12-Position Turret, Hydraulic Tailstock, Tool Presetter, Chip Conveyor, S/N 188

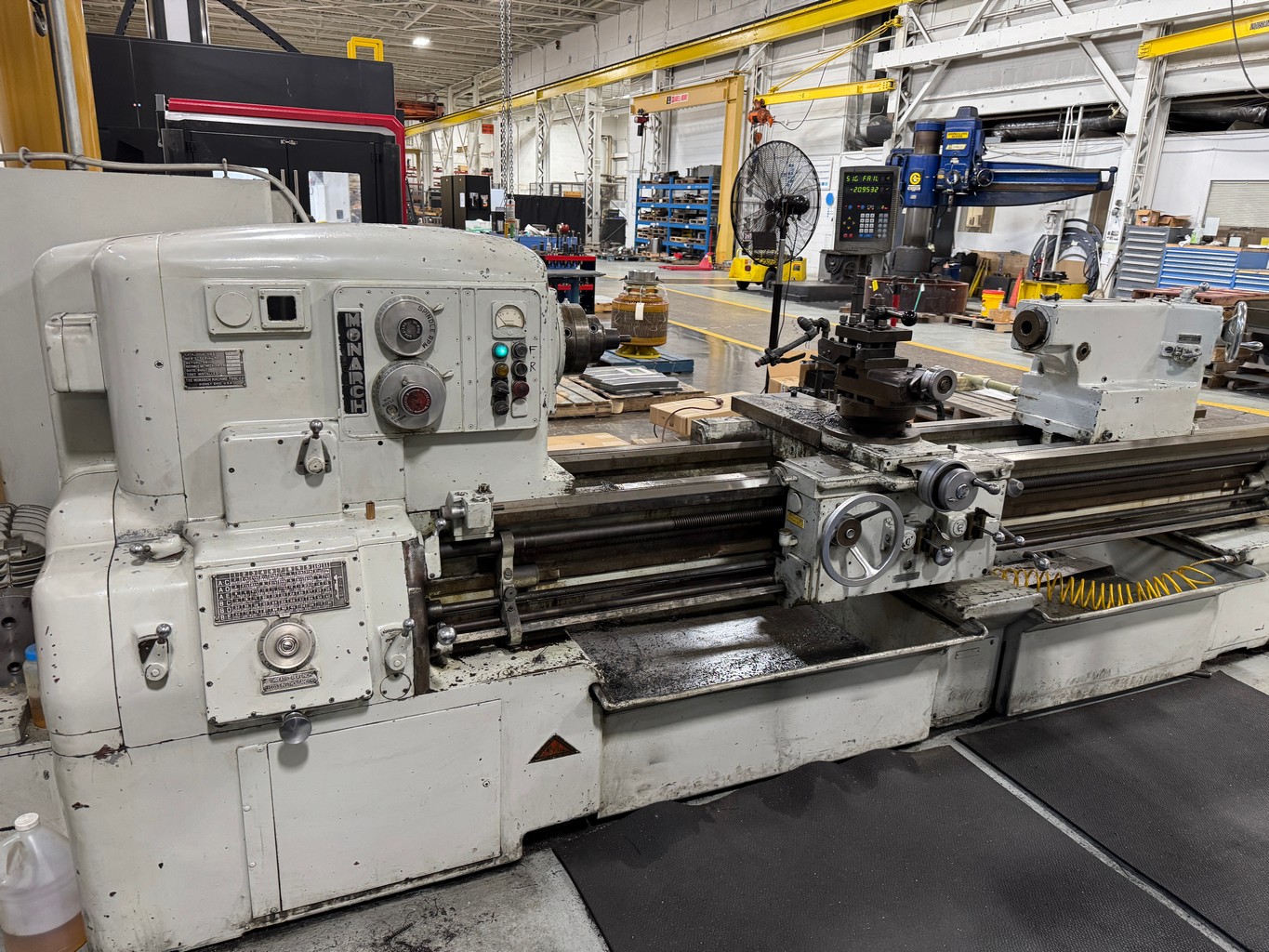

• 28” x 72” Monarch Lathe, 4-Way Tool Post, Threading, 14-1750 RPM, Digital Readouts, Steady Rest, Assorted Chucks, 30 HP, SN 41764

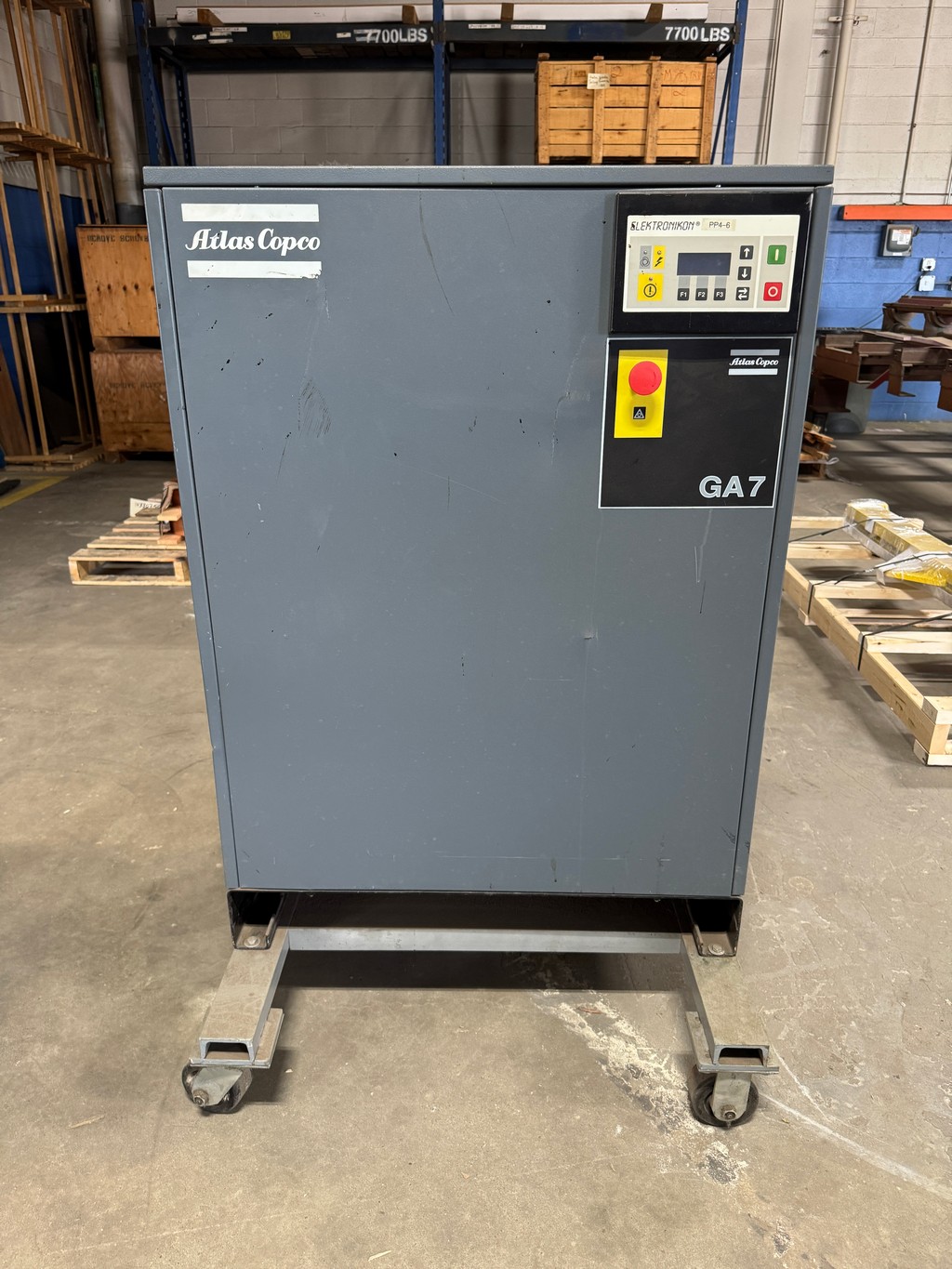

• Atlas Copco GA7 Air Compressor, 10 HP, S/N A1115147
