FEATURED ASSETS:

MULTI-AXIS CNC LATHES & CNC TURNING CENTERS

• Okuma Multus B550W/2000 CNC Turning Center with B-Axis Milling Spindle, OSP-P3000 SA-H CNC Control, 32.6″ Swing, 80” Between Spindles, B-Axis Milling Spindle, Sub-Spindle, 80-Position Automatic Tool Changer, MP Systems High Pressure Coolant, Chip Conveyor, S/N 204677 [2017] VIEW LOT #77
• 2021 Okuma LB-3000EX-II-MYW CNC Turning & Milling Center, OSP-P300LA CNC Control, Main & Sub-Spindle, 12-Station Turret with Live Milling, 22.83” Swing Over Bed, 42.72” Between Spindles, Main Spindle with 12” Kitagawa Chuck, Sub-Spindle with 8” Kitagawa Chuck, Big Bore Option, Y-Axis, C-Axis, Parts Catcher, MP Systems High Pressure Coolant System, LNS Chip Conveyor, 30 HP Spindle Motor, 20 HP Sub Spindle Motor [2021] VIEW VIDEO / VIEW LOT #31

• DMG Mori CTX Gamma 2000 TC 9-Axis CNC Milling & Turning Center, Siemens 840D CNC Control, 8,000 RPM Milling Spindle, 27.6” Max Workpiece Diameter, 78.74” Max Length, 16” Dia. Chuck Main Spindle, Main Spindle Speeds to 2,500 RPM, 13” Dia. Opposed Spindle, Opposed Spindle Speeds to 4,000 RPM, 240 Degrees B-Axis (Milling Spindle) Travel, SMW Autoblock Steady Rest (Fully Programmable), 36-Position Automatic Tool Changer, High Pressure Coolant Thru Spindle, Spindle Chiller System, Chip Conveyor [2012] VIEW VIDEO / VIEW LOT #76
• Mori Seiki SL-400BMC/2000 CNC Turning Center with Live Milling, MSC 501 CNC Control, 27.95″ Swing, 80″ Centers, 18” Chuck, 4.33″ Bar Capacity, 12-Position Turret, C-Axis, Live Tooling, Tailstock, ROYAL Mist Collector, Chip Conveyor, S/N 215 VIEW VIDEO / VIEW LOT #201
• Mori Seiki ZL-45B/1500 4-Axis Twin Turret Turning Center, Fanuc MF-D6 Control, 26.4” Swing, 66.6” Centers, 24” Chuck, 12-Position Upper Turret, 10-Position Lower Turret, Tailstock, Mist Collector, Chip Conveyor, S/N 140 VIEW VIDEO / VIEW LOT #202


2-AXIS CNC LATHES

• Chevalier FCL2460A CNC Flat Bed Lathe, Anilam 4200T CNC Control, Manual or CNC Operation, 24″ Swing, 60″ Centers, 12″ Chuck, 3.25″ Spindle Hole, Aloris Tool Post, 16 Misc. Aloris Tool Post Holders, 1800 Max. RPM, 45 KVA Transformer, S/N X3934001 VIEW VIDEO / VIEW LOT #25

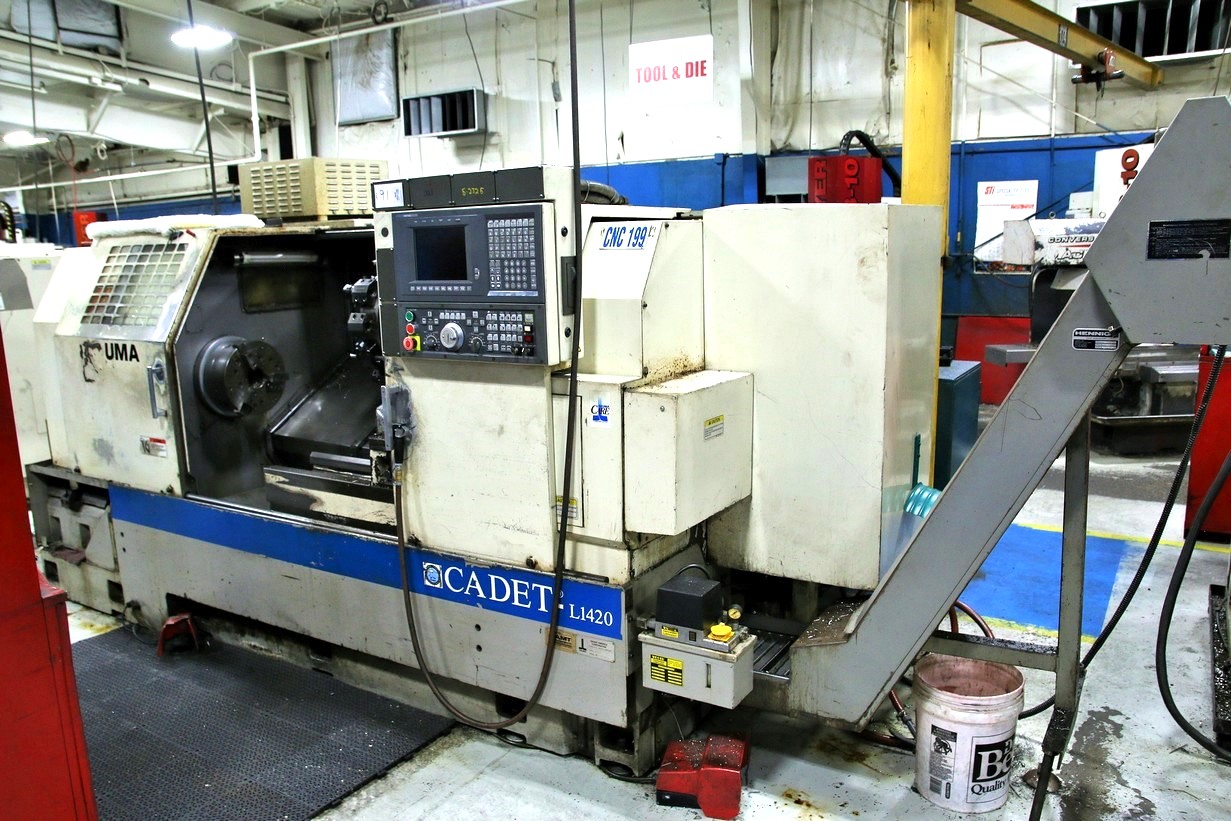

• Okuma Cadet LNC-1420 CNC Slant Bed Lathe, OSP700L CNC, 24.4” Swing, 30″ Centers, 12-Pos. Turret, 10” Chuck, Chip Conveyor S/N 0649 VIEW LOT #24

CNC ELECTRICAL DISCHARGE MACHINES

• Mitsubishi MV1200R CNC Wire EDM, Mitsubishi Advance Plus CNC, 25.1″ x 21.25″ Table, 31.88” x 27.6” x 8.5” Max Workpiece, 15.7” x 11.8” x 8.46” Travels, Wire Chopper, S/N 02DR1022 [2012] SOLD

• Mitsubishi RA90 CNC Wire EDM, Mitsubishi CNC Control, Travels: 12.6″ x 9.8″ x 6.49″, Max Workpiece Size: 33.8″ x 29.9″ x 6.3″,Includes Unit Cooler and 15 KVA Transformer, S/N 50D90227 [2000] VIEW LOT #23

CNC VERTICAL MACHINING CENTERS

• 2022 Haas VF-2SSYT CNC Vertical Machining Center, Haas CNC Control, X-30″, Y-20″, Z-20″, 18″ x 36″ Table, Spindle Speeds to 12,000 RPM, 30-Position Automatic Tool Changer, Wireless Intuitive Renishaw Probing System, Only 741 Hours, S/N 1191105 [2022] VIEW VIDEO / VIEW LOT #32

• Fryer MC30 CNC Vertical Machining Center, Fryer Touch 2200 CNC Control, 31.5” x 16.5” Table, 30” x 18” x 22” Travels, 24 ATC, CAT 40 Taper, S/N 10481 [2015] VIEW LOT #45

• Hurco VM5i CNC Vertical Machining Center, Hurco CNC Control, 18” x 14” Table, Travels: X-18”, Y-14”, Z-14”, 16 ATC, CAT 40, 12,000 RPM, S/N H-V5E0033 [2013] VIEW LOT #44

• (2) Chevalier QP-2855 CNC Vertical Machining Centers, Fanuc 0i-MD CNC Control, 60″ x 25″ Table, Travels: X-55”, Y-27.6”, Z-23.6”, 24 ATC, CAT 50, 6000 RPM, Chip Conveyor, S/N FNC108L03; FMC121L02 [2012] VIEW LOT #41 / VIEW LOT #42
• Okuma MC-V4020 CNC Vertical Machining Center, OSP-P200M CNC Control, 40” x 20” x 17.7” Travels, 24 ATC, CAT 40, 8000 RPM, Probe, Chip Conveyor, S/N 131620.1000 [2007] VIEW LOT #38
• OKK VM5-III CNC Vertical Machining Center, Fanuc 160iS-MB, 41.34” x 26” Table, Travels: X-40”, Y-20”, Z-20”, 20 ATC, CAT 50 Taper, 10,000 RPM Geared Spindle, Thru-Spindle Coolant, HP Coolant Pump, Chip Auger, S/N 1886 VIEW LOT #43

• Fryer MC-10 CNC Vertical Machining Center, Anilam 6000i Touch CNC Control, Travels: X-30”, Y-18”, Z-22”, 31.5″ x 16.5″ Table, 20 ATC, 8000 RPM, CAT 40 Taper, Flood Coolant, Chip Auger, 30 KVA Transformer, S/N 10454 [2011] VIEW LOT #46

• Fryer MB-10R CNC Vertical Machining Center, Anilam 3000 Touch CNC Control, Travels: X-32”, Y-17”, Z-19”, 50″ x 14″ Table,12 ATC, 6000 RPM, CAT 40 Taper, S/N 10243 [2007] VIEW LOT #49

• Fryer MC10 CNC Vertical Machining Center, Fryer 6000i Touch CNC Control, 50″ x 14″ Table, 16 ATC, 20 KVA Transformer, S/N 10366 [2006] NOTE: Machine Needs Repair VIEW LOT #47
• Lagun FTV-2 CNC Vertical Milling Machine, 3 HP, 50″ x 10″ Table, Anilam 3200MK CNC Control, S/N 43388 VIEW LOT #26

• Lagun FTV-2 CNC Vertical Knee Mill, 50″ x 10″ Table, S/N 42838 VIEW LOT #27
• HAAS 50-Taper Spindle, 6000 RPM, 45-Tooth VIEW LOT #118

CNC HORIZONTAL MACHINING CENTERS

• Doosan DHP-4000 CNC Horizontal Machining Center, Fanuc 18i-MB CNC, X-23.62”, Y-22.05”, Z-23.62”, (2) 15.75” x 15.75” Pallets, 14,000 RPM, 60 ATC, CAT 40 Taper, Thru-Spindle Coolant, Chiller, Chip Conveyor, [2006] VIEW LOT #33

• Mori Seiki MH-63 4-Axis Horizontal Machining Center, Fanuc MF-M6 CNC Control, X-39.4”, Y-33.46”, Z-36.2”, (2) 24.75” x 24.75” Pallets, 6000 RPM, 60 ATC, CAT 50 Taper, Chip Conveyor, S/N 594 VIEW VIDEO / VIEW LOT #200

CNC GUN DRILLS

• Mollart Prismabore PRB 3000 CNC 4-Axis Gun Drill, Fanuc 18i-MB CNC Control, 1.96″ Max. Drilling Dia., 79” x 67” Full Contouring Rotary Table, 33,000 Lb. Max. Work Weight, 118” X-Axis Table Horizontal Stroke, 59” Y-Axis Spindle Vertical Stroke, 39.4” Z-Axis Ram Stroke, 82.7” U-Axis Deep Hole Drilling Spindle Stroke, 0-7.87”-19.7” Milling Spindle Horizontal Stroke, 2500 RPM Quill Spindle Speed, 3.54” Quill Spindle Dia., 14.3 HP Quill Spindle Motor, 6000 RPM Drilling Spindle Speed, 26.8 HP Drilling Spindle Motor, 50 Taper Quill Spindle, Chip Conveyor, Chiller, S/N A0520-0104 [2004]  SOLD

• Miroku MSEG1200 CNC Gun Drill, GE Fanuc 21i-M CNC Control, 59″ x 39″ Table, Hand Pendant, Chip Conv, S/N E99801972 VIEW LOT #52

• DeHoff 518T Gun Drill, (2) Drilling Heads, (4) Spindles, 0.5″ Max. Drill Dia, 18″ Stroke, 8000 RPM Spindle Speeds, 3 HP, Allen Bradley Panelview 1000 Interface & SLC 405 PLC, HP Coolant, Mist Collector, Light Curtains, Chip Conveyor, Parts Load & Unload, S/N DH-1936 VIEW LOT #17

CNC HORIZONTAL BORING MILL

• 5.5” WOTAN RAPID 2 CNC Floor Type Horizontal Boring Mill, S/N 68066, w/ SIEMENS SINUMERIK Control, Approx. Travels: X-236” Column, Y-80” Vertical, Z-39.4” Spindle, 27” Column Infeed, 276” x 98” T-Slot Floor Plate, 50 Taper Spindle, 3-2500 RPM, 60-ATC, S/N 68066 VIEW LOT #203

CNC ROTARY TABLES

• (2) Ruckle (Eimeldingen) Type RG-6 51” x 63” B-Axis Rotary Tables VIEW LOT #204 / VIEW LOT #205

GRINDERS

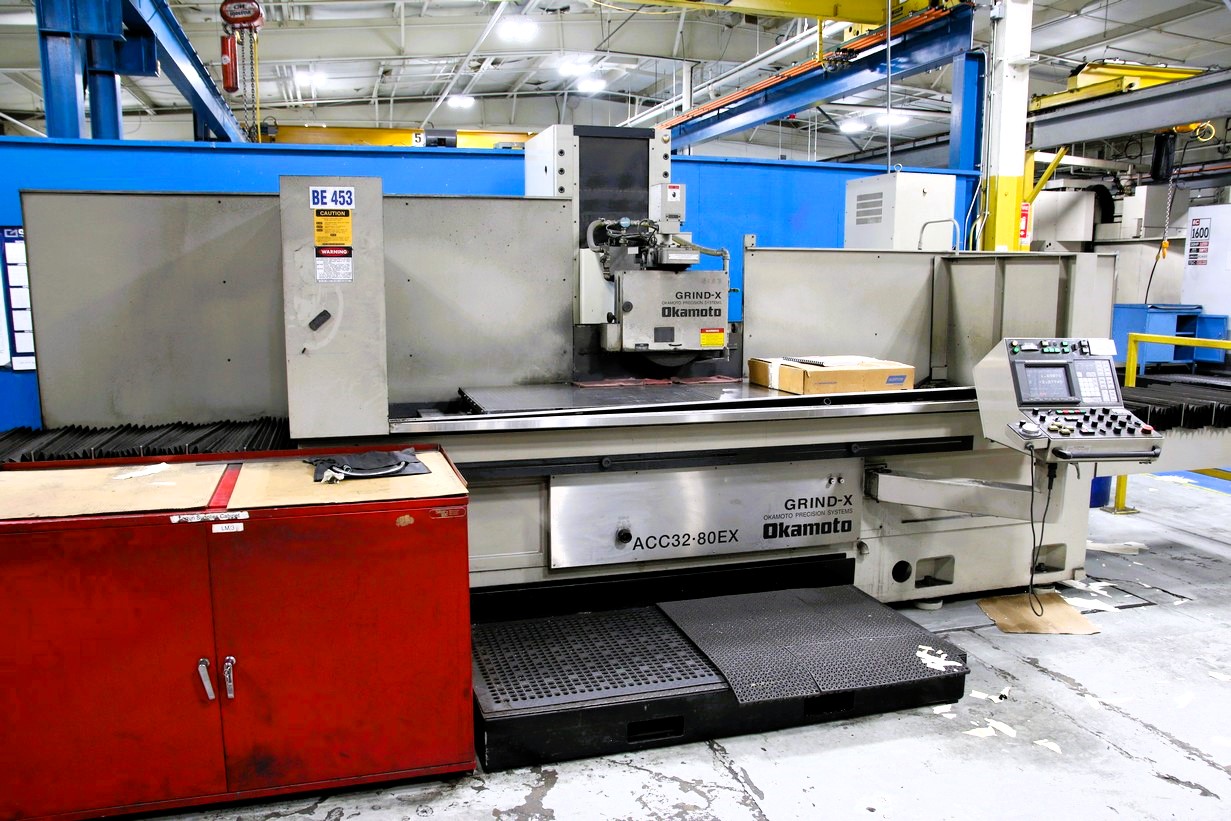

• 32” x 80” Okamoto ACC3280EX CNC Horizontal Surface Grinder, 32″ x 80″ Magnetic Chuck, Fanuc-Okamoto Precision CNC Control, 6-82 FPM, 20 HP Grinding Wheel, Hydraulic Unit, Magnetic Separator, Oil Cooler, S/N 2825 VIEW VIDEO / VIEW LOT #28

• 12” x 27” Jones & Shipman 1300X Twin-Wheel Universal Cylindrical Grinder, 12″ Swing, 27” Centers, 14″ x 2″ x 5″ Left Wheel; 12” x 1” x 5” Right Wheel, 190/45 Deg. Head Swivel, Microprocessor Control, Taper Grinding, S/N M20383 VIEW LOT #29

• Cincinnati RK220-8NC CNC Centerless Grinder, Fanuc 18iT CNC, 4.5″ Max. Workpiece Dia., 24″ Dia. x 10″ Width x 12″ Hole Grinding Wheel; 14″ Dia. x 10″ Width x 6″ Hole Regulating Wheel: 20 HP, Wheel Dressers, Infeed, Balancer, Part Conveyor, S/N 9163A0194-0011 VIEW LOT #13

• 6″ x 18″ Chevalier FSG-618M Horizontal Surface Grinder, DRO, Coolant, S/N 3884035 VIEW LOT #14
• Moore No. 2 Jig Grinder, 19″ x 10″ T-Slotted Table, Auto Feed, Anilam Wizard 211 2-Axis DRO, 5″ x 10″ Magnetic Chuck, Transformer, S/N N/A VIEW LOT #16

COORDINATE MEASURING MACHINES & QC DEPARTMENT

• Mitutoyo Bright Apex BRT-A1220 Model 4010M CMM, Travels: X-47.44”, Y-118.31”, Z-39.57”, Granite Table Size: 118” x 62”, Renishaw PH10M Probe, Renishaw MRC20 Module Changing Rack, HCU1 Renishaw Control, Mitutoyo JSBOX-M Control Pendant, Shipping Brackets, S/N 1113206 VIEW LOT #20

• Sheffield Discovery II CMM, Travels: X-20”, Y-24”, Z-16”, Renishaw Probe, PC-DMIS Software, Covered Rollers, S/N S0638-0206 [2006] VIEW LOT #18

• Large Quantity of Misc. Inspection Items, Including Hardness Testers, Height Gages, Pin Gages, Micrometers, Calipers, & More!

FORKLIFTS

• Hyster H150F Gas Forklift, 15,000 LB Capacity, 2-Stage Mast, 5′ Forks, Solid Tires, Side Shift VIEW LOT #95

ADDITIONAL EQUIPMENT/SHOP SUPPORTS

• ChipBLASTER SACC High Performance ChipCHILLER, 34,000 BTU, Temperature Control, Cartridge Filter Style, S/N T180 [2016] VIEW LOT #64

• Moretech Model 497R-114L Chip Conveyor, 16.5″ x 20″ Opening, 28″D x 19.5″W x 9″H Input Area, 16.5″ Belt Width, 36″ Height, S/N M2211-001-K [2022 – BRAND NEW, NEVER USED] VIEW LOT #66

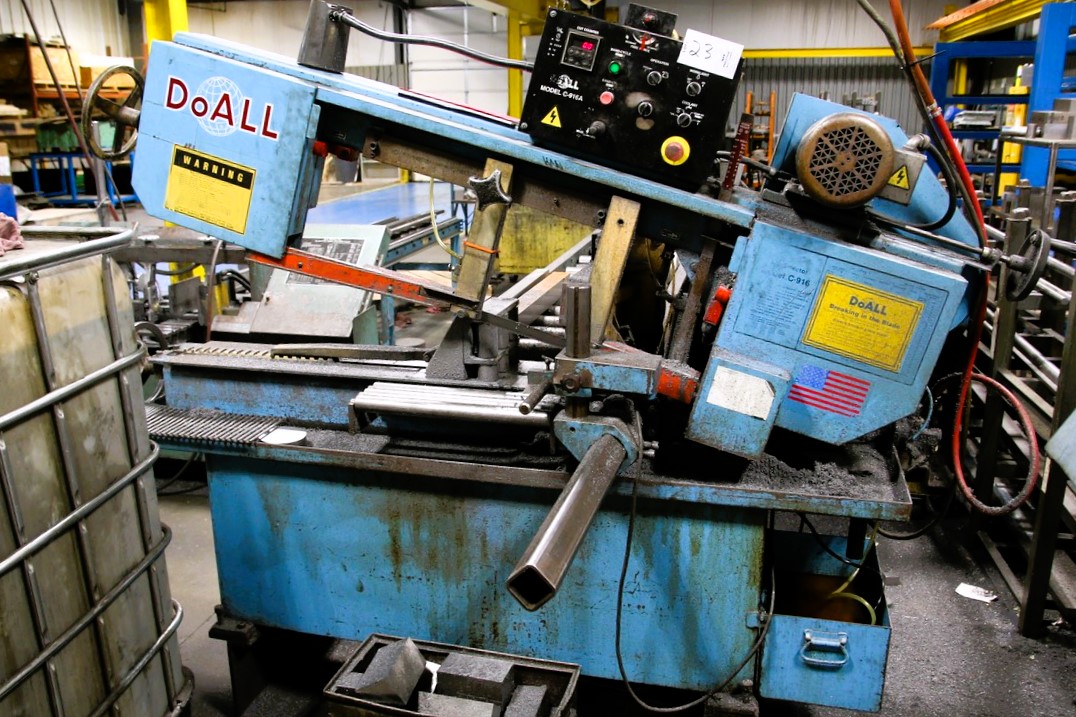

• DoAll C916A Horizontal Band Saw, S/N 52899541 VIEW LOT #15
• 5-Ton and 2-Ton Overhead Cranes VIEW LOT #92 / VIEW LOT #93
• Kemtech MCF-20 Filter & Pump Assembly, 290 PSI, 1.5 KW Pump Motor VIEW LOT #65
• Drills, Saws, Power Tools, Pallets, Vises, Tooling, Riser Tables, Tombstones, Racking, Benches, Welders, Raw Material,  & More!


[NOTE: PLEASE NOTE ITEM LOCATION – CERTAIN ITEMS LOCATED AT ALTERNATE LOCATIONS]
