BORING MILLS:

• Giddings & Lewis VTC36 CNC Vertical Boring Mill, Live Milling, Pallet Changer, 38” Diameter Table, 37” Under Rail, 30-Station Auto. Tool Changer, 25 HP Spindle Motor, #50 Taper, Table Speeds 5-600 RPM, Live Spindle Speeds 15-2200 RPM, Pallet Shuttle, Fixed Rail, Risers, Chip Conveyor, G&L 8000 CNC Control, [BT# 475] S/N: 511-0142-90
• Wotan B105120M 4.1” Table Type Horizontal Boring Mill, X-70”, Y-51”, Z-23.5”, W-59”, 55” x 43” T-Slotted Table, 2000 RPM, Newall DRO, 50 Taper, 20 HP, S/N 50068
• Nomura B-100BT-2 4” Table Type Horizontal Boring Mill, X-57”, Y-50.75”, Z-43.87”, 45” x 55” T-Slotted Table, 11,000 Lbs. Max Table Cap., 21-1200 RPM, 50 Taper, Power Drawbar, DRO, 20 HP, S/N 3544

CNC MACHINING CELL:

• Makino A77 CNC Machining Cell with 31-Station Pallet System, Consisting of the Following: (3) Makino A77 CNC Horizontal Machining Centers, SN’s 96281, A96262, A96430; Travels: X-31.5”, Y-29.5”, Z-30.3”, 128 ATC, 10,000 RPM, CAT 50 Taper, 31-Station Automatic Pallet Changer with (12) 24.8” x 24.8” Pallets, (2) Load Stations, Rail-Guided Pallet Transfer Vehicle, Coolant Through Spindle, 4th Axis Rotary Tables, 5th Axis Pre-Wired Connections, Makino Pro-3 (Fanuc 16M) CNC Control

CNC GEAR HOBBER:

• Hurth-Modul ZFWZ16 CNC Gear Hobber (6-Axis), Max Dia. 63″ , Max Hob Dia. 12″, Max Center Distance (hob – part) 46.063″, Min Center Distance (hob – part) 9.843″, Max Height above Table 51.18″, 1,170 mm – 650 mm Center distance, W/ Siemens Sinumerik System 3 6-Axis CNC Control, 63″ Dia. table, 12″ Hole in table, 2 Tailstocks (clam Shell & center), Auto Coolant, Spacers and Lots of Tooling

GEAR HOBBERS:

• Gould & Eberhardt 48HWD 48″ Heavy Duty Gear Hobber, Max Dia. 48″, Face 18″, 8″ Dia. Hob, Heavy Duty Worm Drive Head, 20/N Diff. infeed, No Tail Stock, 32″ T-Slot Table [BT# 321] S/N: 7035A10
• Gould & Eberhardt 160HWD Dual Column Gear Hobber, Max Dia. 185″, Face 60″, 134″, Dual Worm Drive Table for Fine Pitch & Coarse Pitch table worm, (1) Heavy Duty Head and (1) Fine Pitch Head, Scale on Head, Sony DRO, Several hob Arbors, 12″ Dia Head on right, 8″ Diam.Head on Left Side column, Chip Conveyor,Tailstock, Spare Arbors for left side, 1 arbor for right, Change Gears [BT# 256] S/N: 6525A3
• Gould & Eberhardt 72H (High Column) 72″ Gear Hobber, Max Diameter 72″, Face 36″, 10-3/4″ Hob Diameter, Fine Pitch Table Worm, Differential. Infeed, 1″ Lead, 40″ T-Slot Table, 10″ Min. Gear Dia, [BT# 319] S/N: 3010A2
• Gould & Eberhardt 36HWD 36″ Heavy Duty Gear Hobber, Max Dia 36″, Face 18″, 24″ Table, T-Slot 8″ dia Hob, Steady Rest, Table Hole 5″ , Diff., Infeed. 20/N Tailstock [BT# 322] S/N: 7045A12
• Gould & Eberhardt 24H 24″ Gear Hobber, Max Diameter 24″, Diff. Infeed, Stroke 17″, X-15″, Y-16″ Helical Chain, Universal, Tailstock [BT# 168] S/N: 2509A2
• Gould & Eberhardt 12H 12″ Gear Hobber, Max Diameter 12″, Diff. Infeed, Stroke 13″, Helical, [BT# 4] S/N: 519A7
• Gould & Eberhardt 16H 16″ Gear Hobber, Max Diameter 16″, Diff. infeed, Tailstock, Universal [BT# 138] S/N: 193A2

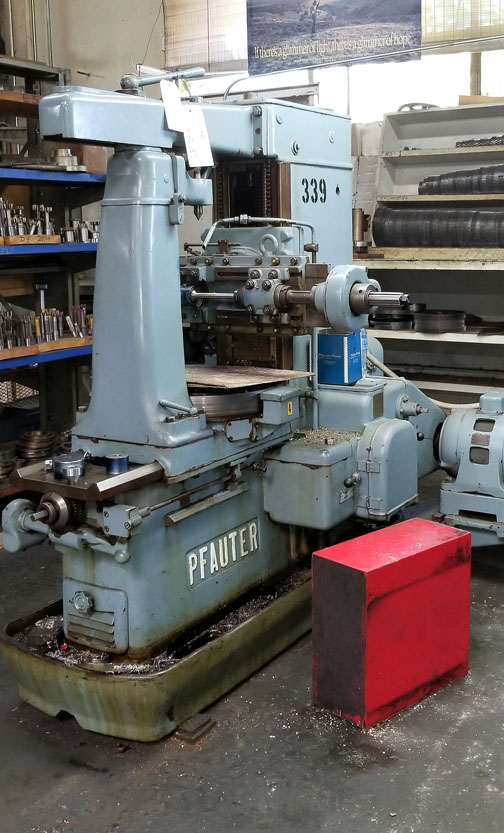

• Pfauter 18 Universial Worm Gear Hobber, Swing 15″, Stroke 12″, X-15″, Y-16″, Universal, Differential, 13 1/2″ Opening for Worm Wheels, Cross Cut Fly Gear, Full Set of Gears [BT# 339] S/N: 10876

BEVEL GEAR GENERATORS:

• Gleason 14 Straight Bevel Coniflex Gear Generator, Coniflex tooth from crown, Cone Distance 0-12″, Diameter of Taper Hole (Large End) 3 29/32″, Taper per Foot 39/64″, Depth of Taper 6″, Diamter of Hole Thru 3 1/16″, Spindle Nose to Center 2 1/2″-15″, Cutter Speed 64-495 spm, Feeds seconds per tooth 10-131, Index Range 5 – 100 inclusive & Up to 200, Diameter pitch (Coarsest) 3 DP, Set of Change Gears and Marked Tooling [BT# 198] S/N: 27778
• Gleason 12 Straight Bevel Gear Generator, Longest Cone Distance on 3-1/2″ Face (Approx.) – 12″, Longest Cone Distance on 1″ Face – 10-1/2″, Shortest Cone Distance – 1/2″, Longest Face 3-1/2″, Length of Stroke 1/2″-4″, Diameter Hole Thru Spindle 3″, Spindle Nose to Centre Line 2-1/2″-15″ [BT# 172] S/N: 19385
• Gleason 12 Straight Bevel Gear Generator Approx Longest Cone Distance on 3-1/2″ Face 12″, Longest Cone Distance on 1″ Face 10-1/2″, Shortest Cone Distance 1/2″, Longest Face 3-1/2″, Length of Stroke 1/2″-4″, Diameter Hole thru Spindle 3″, Spindle Nose to Centre Line 2-1/2″-15″ [BT# 203] S/N: 19669

ADDITIONAL MACHINE SHOP EQUIPMENT:

• Colonial Broach Grinder, Heald ID Grinders, Barber Colman Hob Grinder, Gleason Change Gears, Mitutoyo Coordinate Measuring Machine, Tooling, Change Gears and More!!!
