FEATURED ASSETS:

5-AXIS CNC GUN DRILL

• 2016 Tarus GDTTC510 – 6XRT CNC Gun Drill, Hope Industrial Systems CNC Control, 2″ Maximum Drilling Diameter, 92″ Stroke, Travels: X- 130″, Y- 59″, Z- 44″, 62″ x 96″ Table Dimensions, 48″ Diameter Built-In Magnetic Rotary Table, 60,000 Lb. Table Weight Capacity, +/- 15° Head Tilt, CAT 50, 4,000 RPM Auxiliary Spindle, Koolant Koolers Coolant System, Jorgensen Chip Conveyor, 33 HP, S/N GDCARTTC3115501343, Year: 2016 (Machine #8) VIEW LOT #1

CNC GUN DRILLS

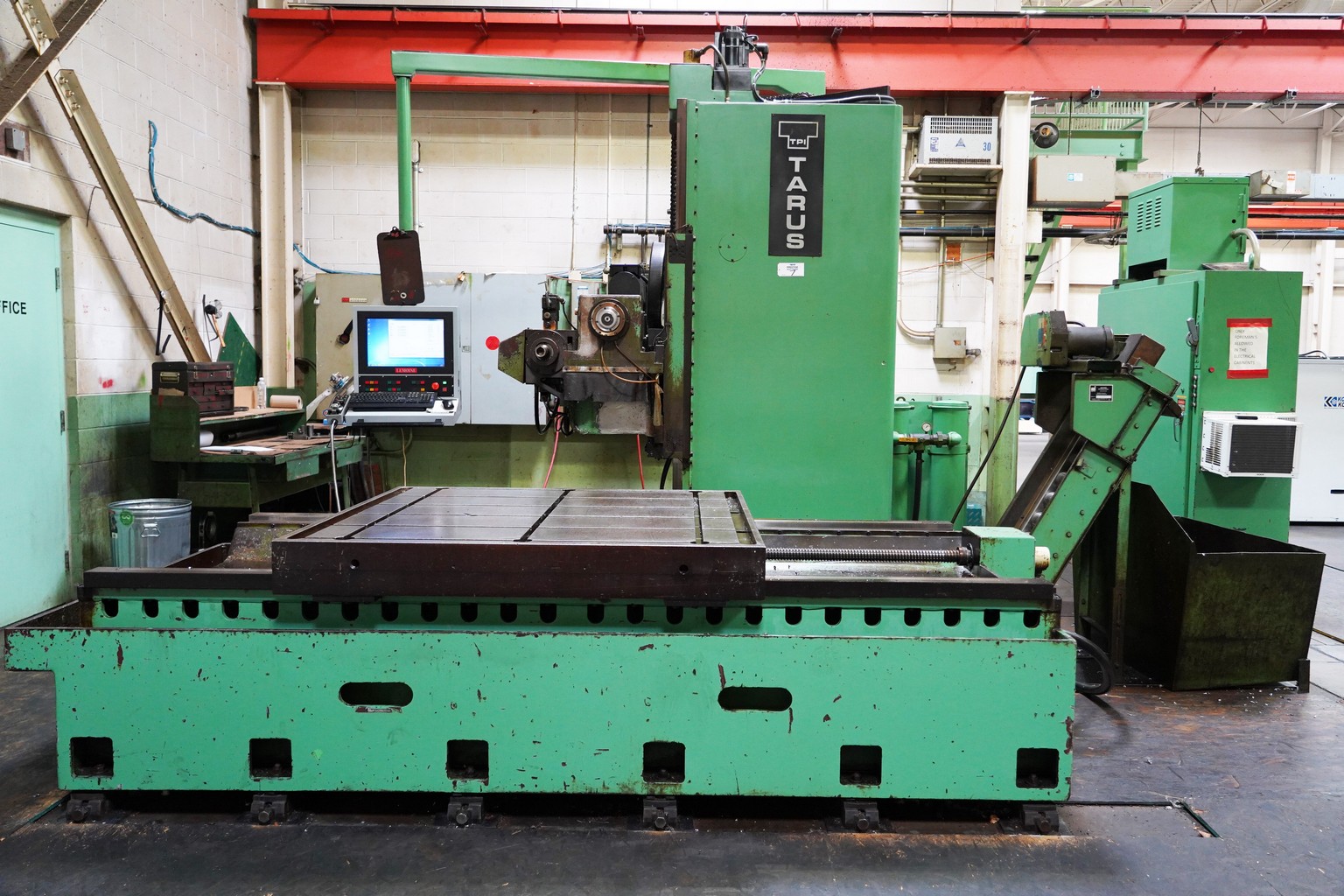

• Tarus TPEXHGD412 CNC Gun Drill, Lemoine CNC Control, 1.5” Maximum Drilling Diameter, 96” Stroke, Travels: X – 60”, Y – 48”, Z – 15”, 60” x 60” Table Dimensions, CAT 50, Auxiliary Spindle, Coolant System, Mayfran Magnetic Chip Conveyor, S/N TPEXHGDCNC621005181 (Machine #1) VIEW LOT #7
• Tarus TPTCGD0408S CNC Gun Drill, Lemoine CNC Control, 2” Maximum Drilling Diameter, 3,500 RPM, 96” Stroke, Travels: X – 60”, Y – 60”, Z – 20” 60” x 60” Table Dimensions, 60,000 Lb. Table Weight Capacity, CAT 50, 2,000 RPM Auxiliary Spindle, 13 HP, S/N TPTCGDCNC1282024289 (Machine #10) VIEW LOT #2
• Tarus TPTCGD512S CNC Gun Drill, Tarus MBX-92 CNC Control, 2” Maximum Drilling Diameter, 8,000 RPM, 96” Stroke, Travels: X- 144”, Y- 61”, Z- 28”, 60” x 144” Table Dimensions, 3,000 RPM Auxiliary Spindle, Coolant, Mayfran Magnetic Chip Conveyor, S/N TPTCGDCNC1375323 (Machine #11) VIEW LOT #3
• Tarus TPTCGD512S CNC Gun Drill, Lemoine CNC Control, 2” Maximum Drilling Diameter, 8,000 RPM, 96” Stroke, Travels: X- 144”, Y- 62”, Z- 28”, 60” x 144” Table Dimensions, 3,000 RPM Auxiliary Spindle, Coolant, Jorgenson Chip Conveyor, S/N TPTCGDCNC1515326 (Machine #12) VIEW LOT #4
• Tarus TPTCGD512 CNC Gun Drill, Tarus CNC Control, 2” Maximum Drilling Diameter, 84” Stroke, Travels: X – 144”, Y – 56”, Z – 22”, 60” x 144” Table Dimensions, CAT 50, 3,000 RPM Auxiliary Spindle, Coolant, Mayfran Magnetic Chip Conveyor, S/N TPTCGDCNC2378061393 (Machine #4) [Not In Service] VIEW LOT #5
• Tarus TPTCGD512 CNC Gun Drill, 2” Maximum Drilling Diameter, 84” Stroke, Travels: X – 144”, Y – 56”, Z – 22”, 60” x 144” Table Dimensions, CAT 50, 3,000 RPM Auxiliary Spindle, Coolant, Mayfran Magnetic Chip Conveyor, S/N TPTCGDCND2377060392 (Machine #5) [Not In Service] VIEW LOT #6

CNC BRIDGE TYPE VERTICAL MACHINING CENTER

• Eumach LBM-2000 CNC Bridge Type Vertical Machining Center, Selca S4000 CNC Control, X- 86.68”, Y-68.95”, Z-25.61”, Spindle Speeds to 15,000 RPM, 13,227 Lbs. Table Capacity, HSK-A63 Taper, 40 HP Spindle Motor, S/N LM-2004 [Located at 5390 Brendan Ln, Oldcastle, ON N0R 1L0, Canada] VIEW LOT #7A

TOOL CUTTERS & GRINDERS

• Deckel Table Top Cutter / Tool Grinder, Max Collet Capacity 1”, Grinding Diameter 4”, Taper Angle 0 – 180 Degrees, Relief Angle 0 – 45 Degrees, Negative Angle 0 – 26 Degrees, Spindle Speed 5200 Rpm, Cup Grinding Wheel 4” X 2” X 3/4”, 110 Volt, 60 Hz, Single Phase VIEW LOT #39
• Ford Smith 41-P Double End Pedestal Grinder, 2 HP, 2.2 AMP, 1740 RPM, 550 Volts, 60 Hz, 3 Phase, S/N NO33-1 VIEW LOT #36
• Jones Shipman 310 Cutter / Tool Grinder, 3 Jaw Chuck, 1/2 HP, S/N 39729 VIEW LOT #37
• Norton #1 Cutter / Tool Grinder, S/N 149497 VIEW LOT #38

ENGINE LATHE

• Chien Yeh CY 405G Engine Lathe, 14” Swing Over Bed, 36” Between Centers, 2” Spindle Bore, 8” Chuck, S/N 86209 [1986] VIEW LOT #33

SAWS

• Delta 28-190 12″ Vertical Band Saw, 1/2 HP, RPM 1725, 115 VOLTS, 60 Hz, Amp 7.6, Single Phase, S/N KC 9734 VIEW LOT #35
• RAM Horizontal Bandsaw, S/N HL108627 VIEW LOT #34


FORKLIFT

• Clark CGC 30 5500 Lbs Propane Forklift, 5500 Lbs Capacity, Side Shift, Type Lp, Solid Tires, Forks Are 4” x 2” x 48” Long, Hours 1794, Mast Type 3 Stage, Max Height 189”, S/N C365LI0023GEF9616 VIEW LOT #44

ADDITIONAL EQUIPMENT

• First LC-1 1/2 VS Milling Machine, 42” X 9” T Slotted Table, T Slot (3 x 0.625” x 2.5”, Travel 38” Longitude, 12” Cross Travel, 16” Vertical Travel, Max Table Load 440 Lbs, Milling Head Vs, 60-4500 Rpms, 2 Hp, R8 Tooling, With 5” Machine Vise, SN 75097967 [1986] VIEW LOT #32

• Joemars TR100 Portable Tap EDM Removal Machine, Auto Feed, Depth Setting, Auto Retract With Alarm, Input Power 3000w, Electrode Chuch Diameter 2-13 Mm, Max Process Depth Of Spindle Servo 70 Mm, Short Hole Process Speed 2mm/min, 110 Volts / 450 Va, 50/60 Hz, Single Phase, SN 101138 VIEW LOT #43

• Heavy Duty Angle Plates, Fixture Plates, Work Benches, Large Quantity of Gun Drill Tooling, Shop Support & More!
