Worldwide Industrial Auctions & Liquidations
Online Auction
Complete Machine Shop & 2012 Water Jet System
Featuring: 2012 8’ x 13’ Jet Edge Water Jet System, Lathes – up to 24” swing, Bridgeport Mills & CNC Profiler, Grinding, Hone, Saws, Large Quantity of Machine Shop Tool Crib, Inspection/Quality Control, Large Quantity of Raw Material, & much more!
August 25, 2020
1:00PM ET
Farmingdale, New York
Enter Auction Share Print
Contact for Sale
Scott Linzer
Email Me
631-249-5566
Inspection Date
August 24, 2020
9:00AM - 4:00PM ET
In Conjunction With
Prestige Auctions
Featured Assets

2012 Water Jet System

  • 8’ x 13’ Jet Edge with IP-6050 Intensifier, 60,000 PSI, 50HP, Bechhoff CNC control, EBBCO abrasive removal system, extra garnet, S/N: 24516 (2012)

Lathes

  • 24” x 60” Victor Gap Bed Lathe, approximately 33” swing thru gap, 12-spindle speeds, inch/mm, 21-1500 RPM, camloc spindle, steady rest, acu-rite III digital readout, S/N: 98052
  • 21” x 100” Clausing Colchester Lathe, 16-spindle speeds, 18-1400 RPM, camloc Spindle, 3-1/2” hole thru spindle, inch/mm threading, steady rest, S/N: 8/0017/02517

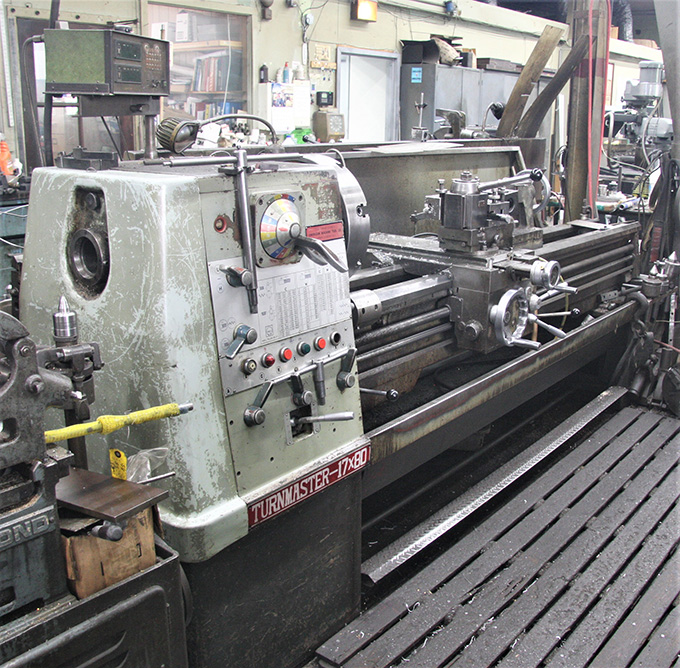

  • 17” x 80” Turn Master Gap-bed Lathe, approximately 24” thru gap, inch/mm, 16 spindle speeds, 20-1600 RPM, camloc spindle, 3” spindle bore, steady rest, 4-jaw & 3-jaw chucks, Mitutoyo digital readout, S/N: 18800106
  • 17” x 60” Graziano “SAG 17” Lathe, 12-spindle speeds, 40-1500 RPM, camloc spindle, inch/mm, steady rest, 4-jaw chuck, 22” swing thru built-in gap, S/N: N/A
  • 14” x 40” Graziano “Sag-14” Lathe, inch/mm, 12-spindle speeds, 40-1500 RPM, camloc spindle, 19” swing thru built in gap, S/N: N/A
  • 12” x 30” Gallin Mdl. 3601 Lathe, inch/mm, 8-spindle speeds, 105-2000 RPM, camloc spindle, S/N: N/A

Knee Type Milling Machines – Including CNC

  • Bridgeport “Series I” CNC Vertical Knee-type Mill with Bandit III controls, quick change spindle, 3-axis, 9” x 42” table, S/N: BR 194084
  • Bridgeport 1-1/2HP Vari-speed Mill, 9” x 42” hand feed table, R8 spindle, S/N: 169476
  • (2) Bridgeport 1HP Vertical Mill, 9” x 42” table, 8-spindle speeds, R8 spindle, 80-2720 spindle RPM, S/N: 12BR-58400, 12BR-199280
  • Bridgeport 1HP Vertical Mill, 9” x 42” table, 7” riser block, 8-spindle speeds, R8 spindle, 80-2720 spindle RPM, S/N: 12BR-89785
  • Excello Mdl. 662 Vertical Mill, vari-speed, 1-1/2HP motor, SCR power feed on table, 9” x 42” table, S/N: 662-210105

CNC Profiler & Miller

  • Pratt & Whitney CNC Vertical Miller & Profiler, 29-1/2” x 35” T-slotted table, Mach III CNC retrofit control, Bridgeport 1-1/2HP vari-speed head, 18” under rail, 42” between housing, S/N: 27571
  • Also Available – 12” Yuasa CNC Rotary Table, S/N: 550-052

Grinders – All Types

  • 12” x 27-1/2” Blohm “Simplex 7” Automatic Surface Grinder, over the wheel dresser, permanently magnetic chuck, neutrofier, coolant, finimatic control, S/N: 1892
  • 6” x 12” Boyar Schultz Hand Feed Surface Grinder, 3/4HP
  • 10-1/2” x 30” Grisetti Mdl. 800 Universal Cylindrical Grinder, motorized vari-speed, work head, S/N: 275 (1966)
  • 4” x 15” Van Norman RE-LI-O OD Cylindrical Grinder, swivel motorized work head, 1/3HP

Hone

  • Sunnen Mdl. MBB1600 Hone, 1/2HP motor, S/N: 43642
  • Also – Assorted Mandrels & Stones

Saws

  • 24” Grob Mdl. NS24 Vertical Bandsaw, welder, 24” x 28” tilting table, S/N: 1579
  • 8” x 14” Kalamazo Horizontal Bandsaw

Brake & Presses

  • 4’ x 11-Ton Chicago Mdl. 131 Mechanical Press Brake, bottom rail adjustment, vari-speed, S/N: LW-8423
  • 50-Ton Dake Mdl. 50H H-Frame Hydraulic Shop Press, 33” between housing, manual lever, adjustable lower rail, S/N: 157312
  • Benchmaster 3-Ton OBI Flywheel Type Punch Press, S/N: 74619838

Miscellaneous Machinery & Equipment

  • 1-Ton Abell-Howe Floor Mounted Jib Arm, 10’ approximately, 1-Ton chain block
  • Miller Syncrowave 351 CC AC/DC welder with Coolmate 4
  • 40HP Quincy Rotary Screw Type Air Compressor
  • 17” Rockwell Mdl. 17-600HP Floor Type Drill Press, 1HP, 3-phase, T-slotted base, S/N: 152 0073
  • 16” Delta 2-Gang Production Drill, (1) high column head, 23-1/2” x 36” table, belt drive, single phase
  • Patterson-Kelly 3/4HP Twin Shell Dry Blender, plastic body, S/N: CB-6921
  • 6” Belt & 12” Disc HDT Mdl. SB-6X12 Combination Sander
  • 1” Belt x 8” Disc Mdl. H8192 Combination Sander, 1/3HP, single phase, (2018)

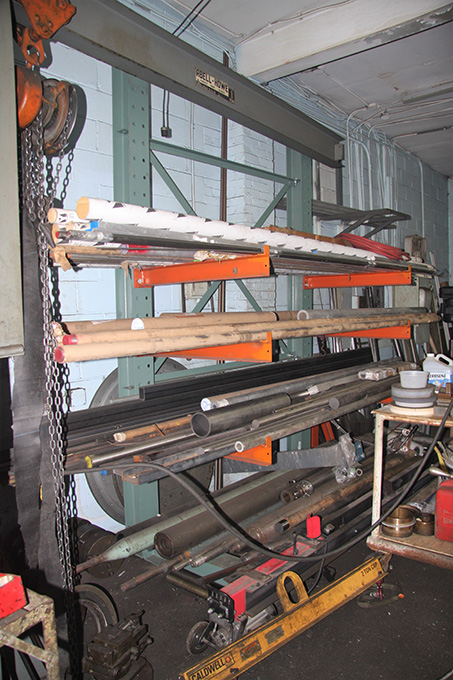

  • Cantilever Stock Rack, 72” wide x 120” high, 36” arms, adjustable arms
  • 20” diameter Vibratory FinisherMiller Welder
  • 1/2HP Delta Mdl. 23-105 6” Double End Grinder, single phase
  • 1/2HP Delta Mdl. X-1650-B 6” Double End Carbide Grinder, 3-phase
  • Rockwell Mdl. 438-2-31-0298 Double End Carbide Grinder, single phase
  • Filematic Mdl. FIL-50 Threading Unit, 600 RPM threading, S/N: 7602020
  • Duplomatic TA-120 Tracing Attachment, S/N: 7704157
  • Greenerd #3-1/2 Arbor Press
  • Famco #3 Arbor Press
  • Burton #1 Arbor Press
  • 20KVA Alphil Mdl. VPTF Spot Welder, 12” throat, S/N: 5236
  • C-Frame Punch, 11-1/2” throat
  • 31” Niagara Jump Shear

Inspection & Quality Control

  • 13” Mitutoyo PH-350 Comparator, surface illumination, 5-7/8” x 15-3/4” table, Mitutoyo 2-axis readout, S/N: 10547
  • 14” Tumico Optical Comparator, S/N: 1250
  • Misawa Seiki Hardness Tester, S/N: 72527
  • Rockwell Mdl. 300R Hardness Tester, S/N: 608
  • Miscellaneous Including Scherr Tumico & Mitutoyo Calipers & Verniers up to 60”, assorted height gauges, Brown & Sharpe 5851-12 “Hiteicator”, Cadillac gauges, pin gauge sets, Jo-blocks, micrometers, granite surface plates, bore gauges, ID bore gauages, verniers, surface testers, plus much more

Miscellaneous Tool Crib & Shop Support

Spacers, Dividing Heads, 10” Gorton Rotary Table, 12” Troyke Rotary Table, Kurt Vises, Air-mic, Scales, Presto Die-Lift Cart, 6” x 6” T-slotted X-Y table, Drill Presses, 8” TST Vertical/Horizontal Rotary Table, Dumore 44-011 Toolpost Grinder, Bronze Bushings, Hout Drill Boxes, Angle Plates, Bridgeport Right Angle Heads, Bridgeport Quill Attachment, 5C Collets, R8 Collets, Bench Vises, Tilting T-slotted tables, Bridgeport Boring Heads, Milling Vises, Drills, Taps, Reamers, Keyway Cutters, Broaches, Tapping Heads, Kuroda UFB-35 Boring Head, End Mills, Scissor Clamps, Aloris Toolposts, Boring Bars, Live Lathe Centers, Jacobs Speed Chucks, Steinel “PK” Hand Press, Flex Collets, Lathe Chucks, Swivel Vises, Cabinets, Tables, Rolling Carts, plus much more

Assorted Metals & Material

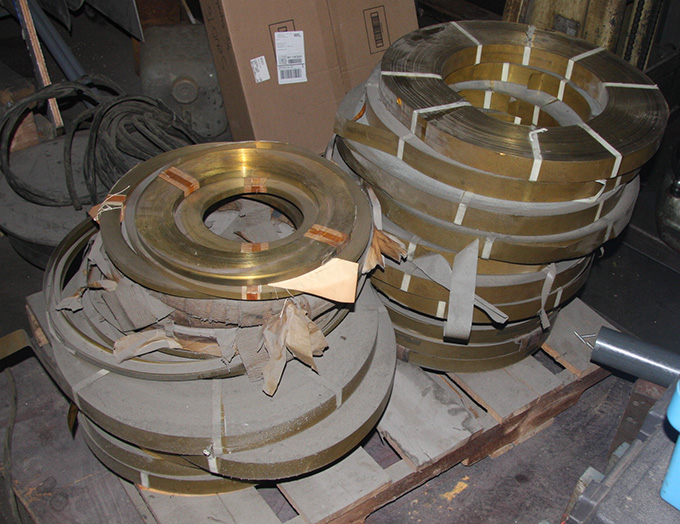

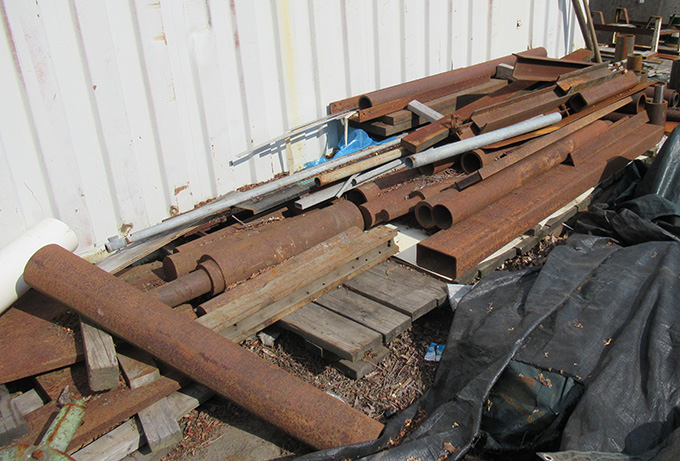

Approximately 1,500lbs of Brass Coils, (2) Trailers with stainless steel, steel, polished shafts, etc., Miscellaneous throughout shop
