Worldwide Industrial Auctions & Liquidations

Online Auction

CBT Manufacturing – Premier Fabricator and Manufacturer of Steel Plate Tanks & Vessels

Complete Plant Closure Featuring (21) Overhead Bridge Cranes 3 Ton to 50 Ton, Pangborn Plate Blast System, Fabricating Equipment, (25) Welders, Machine Tools, Vehicles & Plant Support
November 18th, 2021
11:00AM ET
Chattanooga, Tennessee
Share Print
Contact for Sale
Frank DiSalvo
Email Me
631-249-5566
Inspection Date
By Appointment
In Conjunction With
Prestige Auctions
Sale Information

** Accepting Pre-Auction Offers on Bridge Cranes & Major Equipment Sales **



(Qty) 21 OVERHEAD BRIDGE CRANES:

  • Deshazo Bridge Crane, 50 Ton x 66’11”’ Span, 39’ Lift, 101 FPM Max. Variable Bridge Speed, 62 FPM Max. Variable Trolley Speed, 1.6/10 FPM Hoist Speed, Radio Control, Class D Rated, 5’6” Height Runway Rail to Top of Crane, 46,000 Lb. Crane Weight Serial No: 40465-1, 2011
  • (2) Meco Matic Bridge Cranes, 25 Ton x 72′ Span, Radio Control
  • EMH Double Trolley Bridge Crane, 10 Ton x 75′ Span, (2) 5 Ton Hoists, 28’ Lift, 120 FPM Max. Variable Speed Bridge, 80/20 FPM Trolley Speed, 16/2.6 FPM Hoist Speed, Radio Control, 42” Overhead Clearance, 29,214 Lb. Crane Weight, Serial Number S6601
  • Demag Bridge Crane, 10 Ton x 72’ Span, Radio Control
  • Deshazo Bridge Crane, 7.5 Ton x 36’7” Span, Pendant Control
  • (2) Dwight Foote Bridge Cranes, 5 Ton x 67′ Span, Demag Hoists, Radio Control
  • Demag Bridge Crane, 5 Ton x 75′ Span, 28’ Lift, Radio Control
  • (2) Dixie Bridge Cranes, 5 Ton x 36’7” Span, Radio and Pendant Controls
  • (3) Able Howe /Konecranes/ Engineered Systems Over Head Bridge Crane, 5 Ton x 36’7” Span
  • Kone Crane, 5 Ton x 36’7” Span, Pendant Control
  • (2) Sheppard Niles Over Head Bridge Crane, 3 Ton x 36’7” Span
  • (2) Seco Bridge Cranes, 5 Ton x 36’7” Span

NOTE: There will be Copper Buss Duct and Runway Rail available on some of the crane bays



PANGBORN PLATE BLAST SYSTEM:

  • Pangborn 4 Wheel Vertical Plate Blast System, 120″ Plate Width, Kone Overhead Trolley System W/ 2 Kone Hoist, (4) 30 HP 1800 RPM Roto-Blast Motors, Shot Recover System, Manganese Steel Lined Cabinet, Shot Recover System, Dust Collector, Full Documentation Available

WELDING:

  • (Qty 12) Thermal Arc Powermaster 500P Mig Welders
  • Lincoln DC 1500 DC Arc Welder
  • Lincoln 5350 Tig Welder w/ Lincoln Electric K2536-5 Power Feed
  • Miller 6 Pack Welding Machine

SUB-ARC WELDING MANIPULATOR:

  • Ransome SHD 16×16 Dual Wire Sub-Arc Weld Manipulator, 16’ Vertical Travel, 16’ Horizontal Travel, 4.1 – 165 IPM Ram Speed, 41 IPM Elevation Speed, Dual Wire Feed, (2) Lincoln DC1000 Weld Power Supplies, Stationary Base, Serial Number: 9420475

ANGLE BENDING & PLATE ROLL:

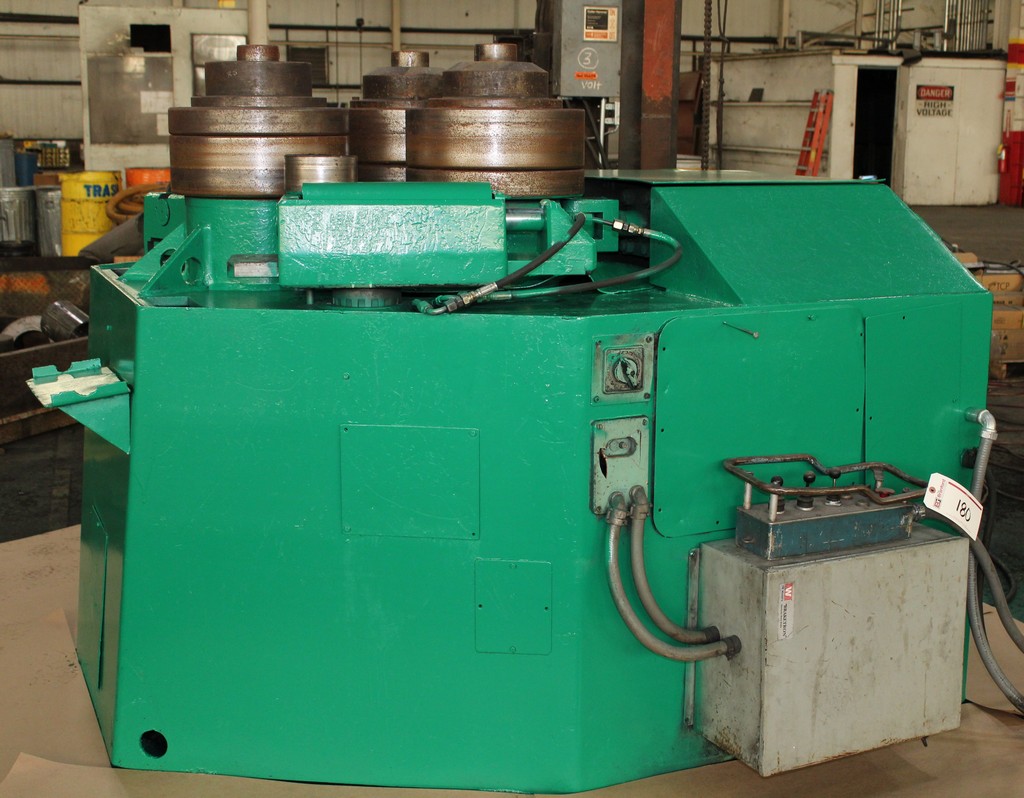

  • Pullmax Model Z41, 5” x 5” x 1/2” Vertical/Horizontal Angle Bending Roll, 15-3/4” Dia. Rolls, Adjustable Guide Rolls, 20 HP Main Motor, Pendant Control, 68” x 59” x 75”, 12,000 Lbs.
  • Montgomery 3/8” x 6’ 4-Roll Hydraulic Plate Roll, Model 4R7237, 8” Roll Dia., 10 HP Motor, Operator Pendant Ctrl., 140” x 44”, 9,600 Lbs., Serial No. 090027

TANK TURNING ROLLS:

  • Large Quantity of Tank Turning Rolls, 60 to 120 Ton

PLASMA CUTTING SYSTEM:

  • 2007 Koike Aronson Plasma Cutting System Model MGM3100, 10′ x 50′ Mastergraph Millennium Series, with Hypertherm HPR260 Plasma Power Supply, 1 Plasma Head, Water Cutting Table

PLATE FAB, BEVEL, SAWING, DISHING PRESS:

  • Cincinnati Hydraulic Plate Shear Model 5 FL 12, 12′ x 5/8
  • PH 8 Ton Welding Positioner
  • Marvel Band Saw Series 8 Mark II
  • Pullmax Plate Beveler
  • Circle Cutter
  • Kling Shear
  • Baldwin Southwork Dishing Press

HEAVY DUTY MACHINE SHOP:

  • TRM S2500 8’ Radial Arm Drill, Serial Number: 1086
  • American Hole Wizard Radial Arm Drill
  • Archdale Radial Arm Drill
  • Cincinnati Model 26 Hydrashift Toolroom Engine Lathe, 18″ diameter 4-jaw chuck, 230V 3 phase, Tail stock, 26″ swing, quick change tool holder, Power feed, 640 RPM max. spindle speed
  • Also Portage Table Type Horizontal Boring Mill, Pittsburg Lathe, King Vertical Boring Mill
  • Mazak Hercules AJAX 18 Gap Engine Lathe, 18.5” Swing (26.5 with Gap Removed) X 84” Manual Gap-Bed Engine Lathe with 7.5HP Drive Motor, 2.062” Spindle Bore, 9” Swing Over Cross-Slide, Tool Post, 4 Jaw Chucks,

PLANT SUPPORT, BLAST EQUIPMENT, VEHICLES:

  • (5) Lifting Beams
  • (3) Sure, Flame Direct Fired Dual Fuel Heater/Wagon, Model S1505B, Cap 1500000 BTU
  • Empire Dust Collection System, Model HDFT4-48, 24 Cartridge, Siemens Nema GP100 60 HP, Cincy Fan HBDI 330/Late
  • (2) Empire Blast Pots w/ Guns and Recovery System
  • (7) Weld Rod Ovens
  • Ford F80 Flat Bed Truck
  • Chevy Silverado Pickup Truck
  • Large Quantity of tools/plant support/maintenance



Videos, Photos, and Catalog Asset Listing Coming Soon!
