5-AXIS CNC VERTICAL MACHINING CENTERS

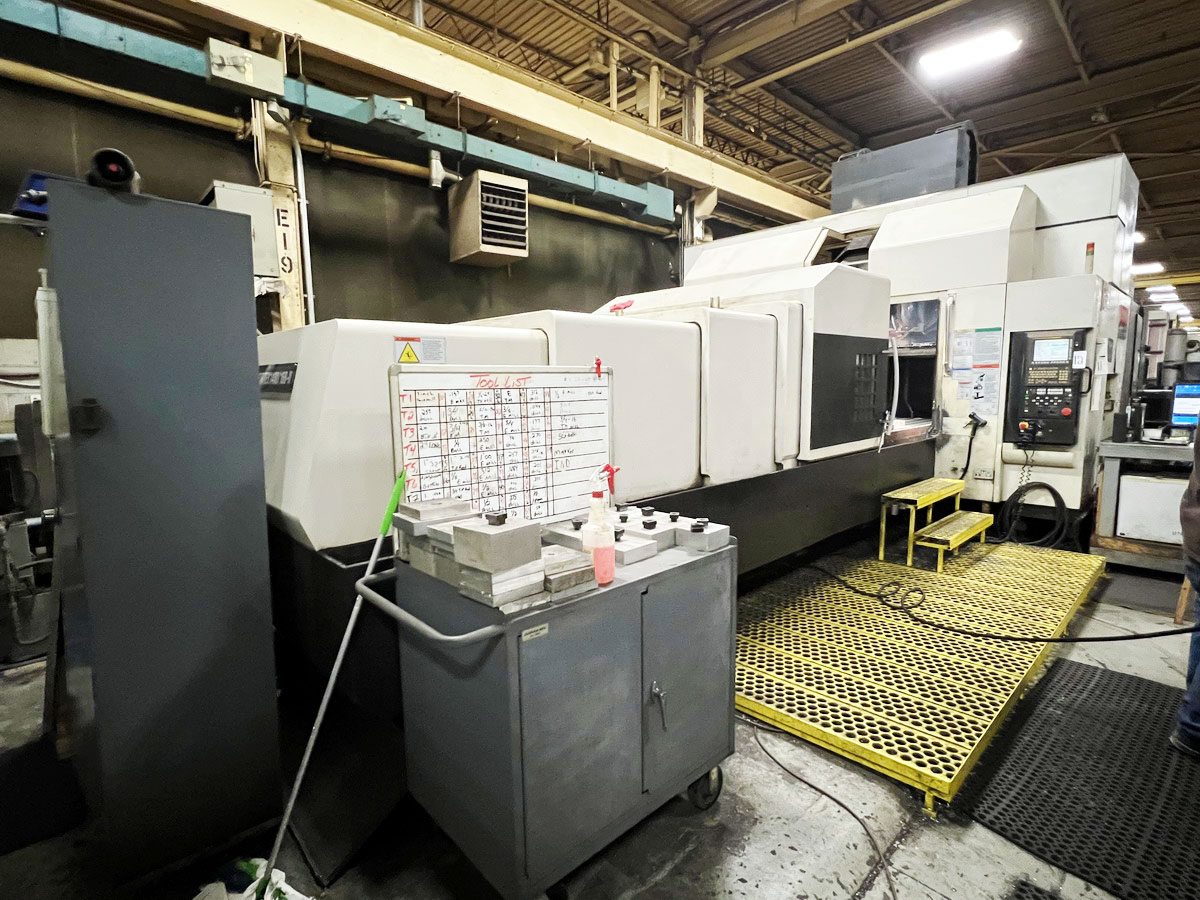

• Mazak Vortex 1400/160-II CNC Vertical Machining Center, Fanuc 31i-AB, Travels: X: 163”, Y: 55”, Z: 24”, A: +/- 30°, B-+/- 30°, 157” x 49” Table, 11,023 Lb. Table Weight Capacity, Spindle Speeds to 18,000 RPM, HSK 100, 60-Station Automatic Tool Changer, A/B-Axis Head, Coolant Thru Spindle, Chip Conveyor, 50 HP, S/N: 182725 (2006) VIEW LOT #12
• Mazak Vortex 815/120 CNC Vertical Machining Center, Fanuc 15i-M, Travels: X: 120”, Y: 31”, Z: 24”, A: +/- 30°, B: +/- 30°, 127” x 31” Table, 6,600 Lb. Table Weight Capacity, Spindle Speeds to 10,000 RPM, CAT 50, 60-Station Automatic Tool Changer, A/B-Axis Head, Coolant Thru Spindle, Chip Conveyor, 50 HP, S/N: 177233 (2005) VIEW LOT #9

BRIDGE-TYPE VERTICAL MACHINING CENTERS

• Okuma MCV-20A-II CNC Bridge-Type CNC Vertical Machining Center, Okuma OSP-7000, Travels: X: 157.48”, Y: 78.74”, Z: 17.72”, W: 45”, Distance Between Columns: 80”, 59.06” x 149.60” Table, 26,400 Lbs Table Weight Capacity, 30 – 4,000 RPM, CAT 50, 24-Station Automatic Tool Changer, 30 HP, S/N: 0806214 VIEW LOT #13
• Cincinnati Milacron 30V 5-Axis CNC Bridge-Type Profiler, Heidenhain 510C, Travels: X: 340”, Y:94”, Z:29”, A: +/- 30°, B: +/-30°, Distance Between Columns: 94”, 340” x 86” Table Dimensions, Spindle Speeds to 4,000 RPM, CAT 50, Remote Hand Pendant, 50 HP, S/N: 3239E0191-0012 VIEW LOT #14
• Rambaudi VAR-107 5-Axis Gantry Mill, Fidia C-20, Travels: X: 314”, Y: 177”, Z: 57”, A : +/-105°, C :360°, 177” x 470” Table Dimensions, Spindle Speeds to 3,000 RPM, CAT 50, 23” x 23” Ram Dimensions, 2-Axis Nutating Head, 60 HP, S/N: 7-309-423 VIEW LOT #10

TABLE-TYPE HORIZONTAL BORING MILLS

• 3.9” Kuraki KBT-1003W Table Type Horizontal Boring Mill, Pendant Controls, Travels: X: 59”, Y: 49”, Z: 27.6”, W: 47”, 41” x 47” Table Dimensions, 8,800 Lb. Table Weight Capacity, 17 – 1,200 RPM, #50 Taper, Accu-Rite Digital Readouts, 15 HP, S/N: KK1800 VIEW LOT #8
• 5” DeVlieg 5K96 CNC Jig Mill, Vega Windows Based CNC Control, Travels: X: 96”, Y: 60”, Z: 24”, 96” x 50” Table, Spindle Speeds 1 – 1,425 RPM, Remote Pendant Control, 20 HP, S/N: 10081 VIEW LOT #6

• 4” DeVlieg 4K96, Operator Pendant Control, Travels: X: 96”, Y: 48”, Z : 20”, 96” x 40” Table, Spindle Speeds 14 – 1,450 RPM, Accu-Rite Digital Readout, Power Draw Bar, 15 HP, S/N: 8955 VIEW LOT #4

ADDITIONAL EQUIPMENT

• (3) Trak DPM5 CNC Vertical Milling Machines VIEW LOT #1 / VIEW LOT #2 / VIEW LOT #3

RIGGING INFORMATION:

Phoenix Machinery Movers
Bart Santamaria
(810) 217-5113

Winfield Rigging
Dave Winfield Jr.
(586) 419-5277

Lee Industrial Contracting
Vadim Beginin
(248) 860-7190
