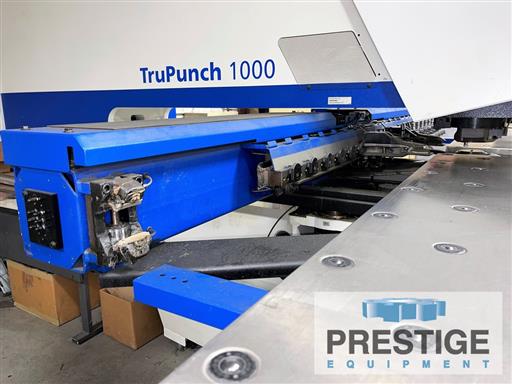

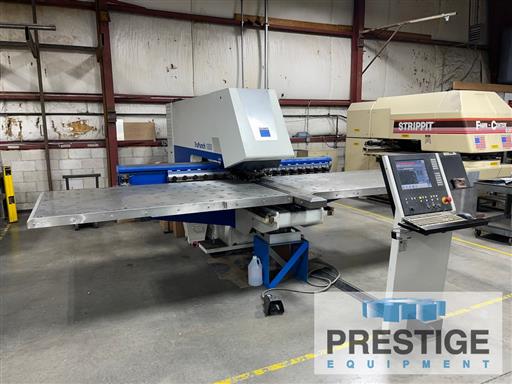

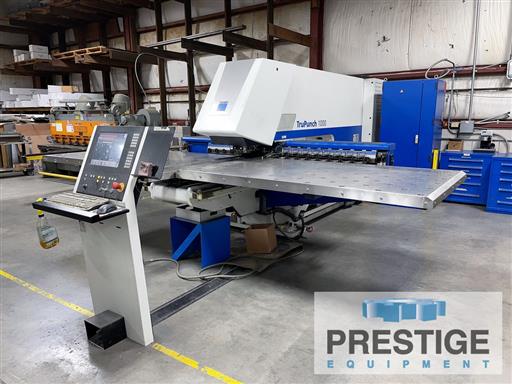

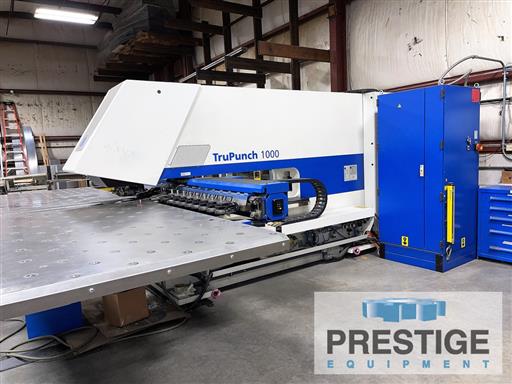

TRUMPF TruPunch 1000 19 Ton CNC Punch & Contouring Machine
Model:
TruPunch 1000
Age:
2008
Ref#:
32478
Prestige Equipment is the world's leading provider of TRUMPF TruPunch 1000 19 Ton CNC Punch & Contouring Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Punch Laser Combination Turret Punches for sale.
Product Specifications
Product Specifications
CAPACITY:
Maximum Tonnage Capacity
19 Tons
Table Travel
50" x 80"
Maximum Sheet Thickness
1/4"
Maximum Work Piece Weight
330 Lbs.
Maximum Punch Diameter
3"
Axis Speed, Simultaneous (X & Y)
3819 IPM
Maximum Stroke Rate Punching
600 1/min
Maximum Stroke Rate Marking
1300 1/min
C-Axis Rotation Speed
180 RPM
Rotation Of All Tools
360 degrees
Tool Change Time
4.4 Sec
Approximate Floor Space Required
236" x 229"
Equipped With:

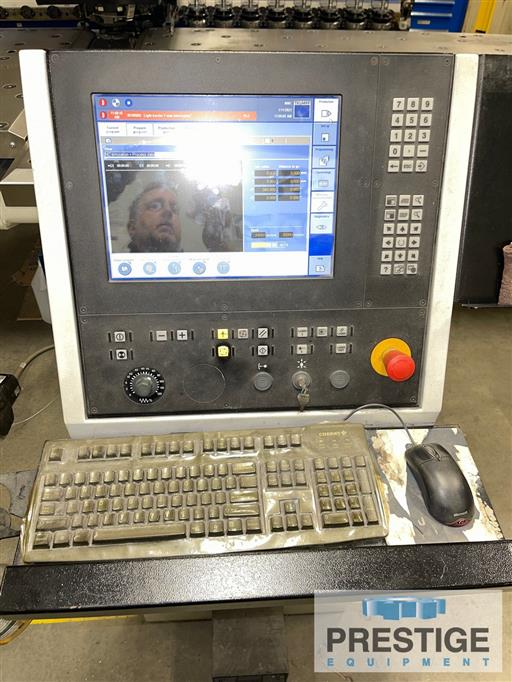

Trumpf CNC Control

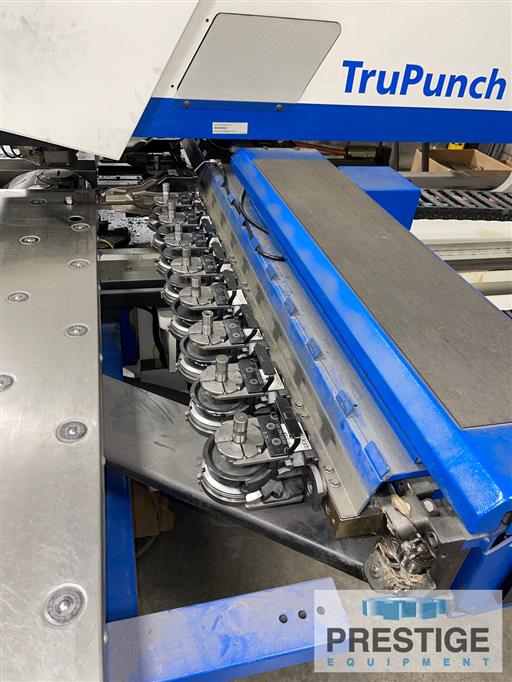

15 Tool Linear Magazine with (2) Work Clamps
Programmable Tool Rotation

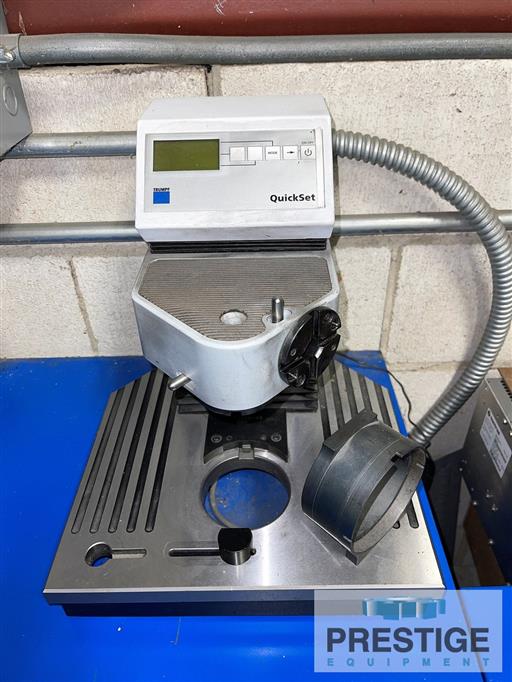

Trumpf Quick Set

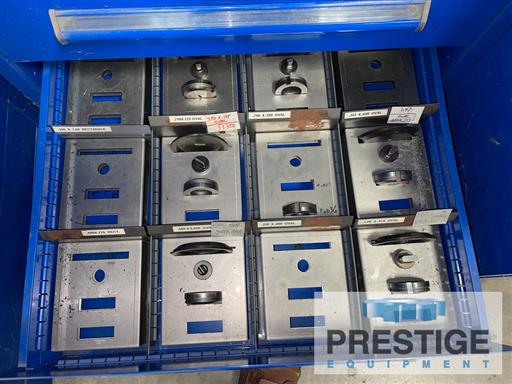

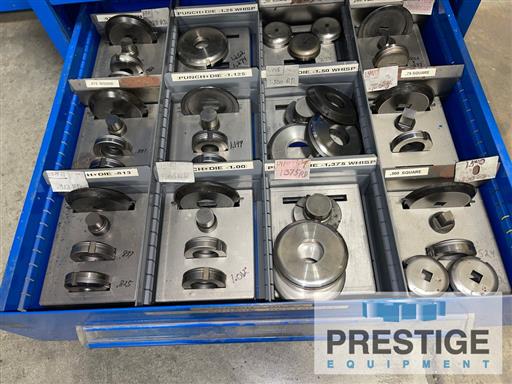

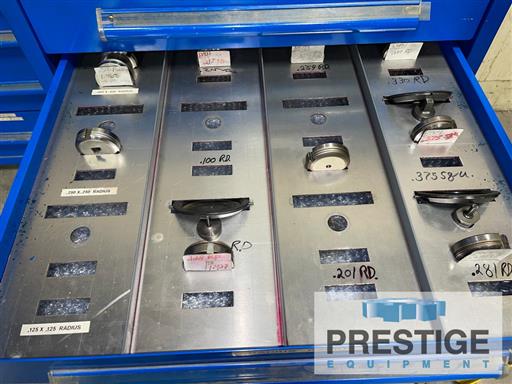

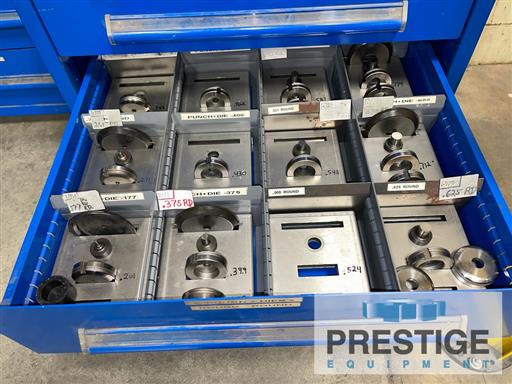

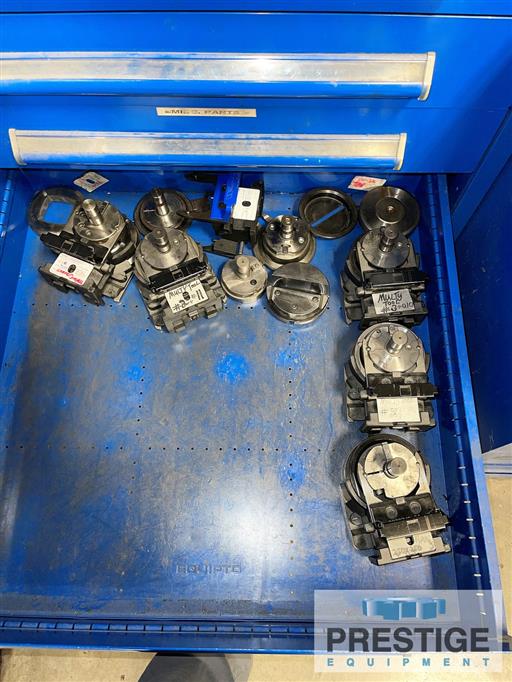

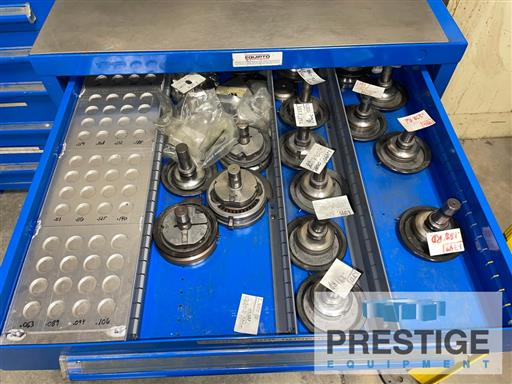

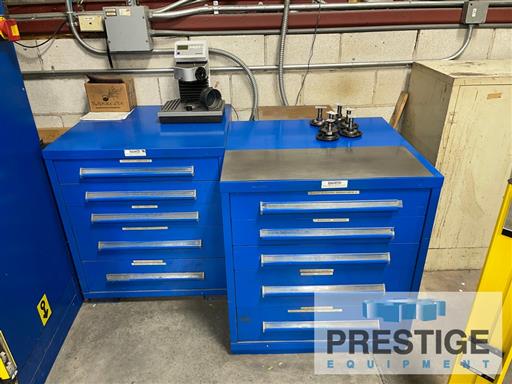

Tooling Package
HOURS: 8,000
NOTE:
Inspect Under Power in Plant
