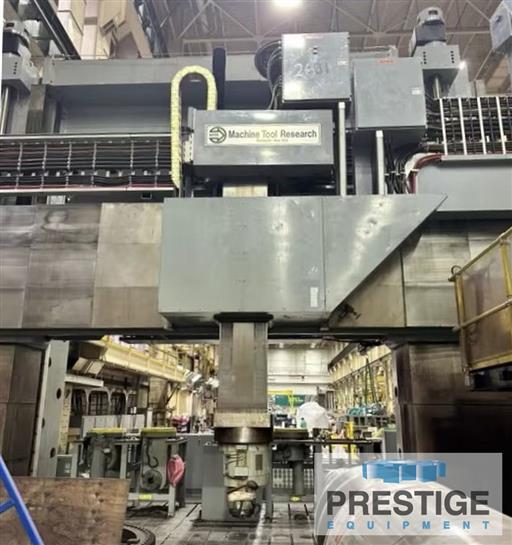

Ingersoll CNC Bridge Mill
Model:
CNC Bridge Mill
Age:
N/A
Ref#:
44935
Prestige Equipment is the world's leading provider of Ingersoll CNC Bridge Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓

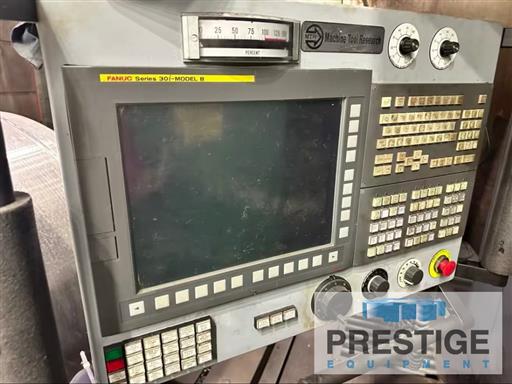

Fanuc 30i CNC Control
✓

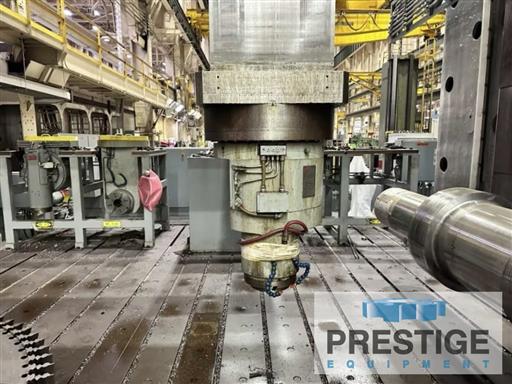

134 HP Milling Head
✓
Right Angle Head Attachment, #50 Taper
✓
Long Reach Straight Head Attachment, #60 Taper
✓
Short Reach Straight Head Attachment, #50 Taper
✓
672" x 206" T-Slotted Table
✓
Through Spindle Coolant
✓

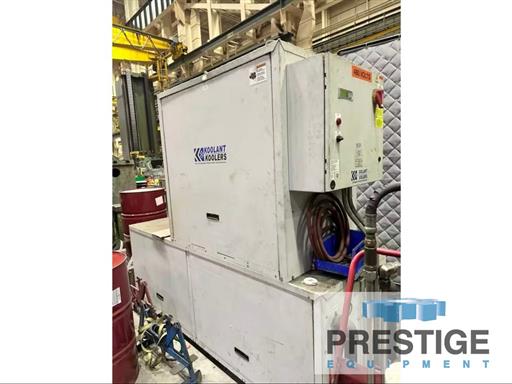

Koolant Koolers Chiller
✓
Adjustable Rail
✓
Chip Conveyor
Product Specifications
SPECIFICATION:
Table Travel, X-Axis
684"
Head Travel, Y-Axis
275"
Ram Stroke, Z-Axis
60"
Rail Travel, W-Axis
172"
Ram Rotation, C-Axis
.001 degrees
Distance Between Housings
222"
Height Under Rail
204"
Table Size
672" x 206"
Table Capacity
450,000 lbs
Spindle Speeds (Variable)
0-2,500 RPM
Vertical Milling Head
134 HP
Equipped With:
Fanuc 30i CNC Control
134 HP Milling Head
Right Angle Head Attachment, #50 Taper
Long Reach Straight Head Attachment, #60 Taper
Short Reach Straight Head Attachment, #50 Taper
672" x 206" T-Slotted Table
Through Spindle Coolant
Koolant Koolers Chiller
Adjustable Rail
Chip Conveyor
Features:
✓
Fanuc 30i CNC Control
✓
134 HP Milling Head
✓
Right Angle Head Attachment, #50 Taper
✓
Long Reach Straight Head Attachment, #60 Taper
✓
Short Reach Straight Head Attachment, #50 Taper
✓
672" x 206" T-Slotted Table
✓
Through Spindle Coolant
✓
Koolant Koolers Chiller
✓
Adjustable Rail
✓
Chip Conveyor
