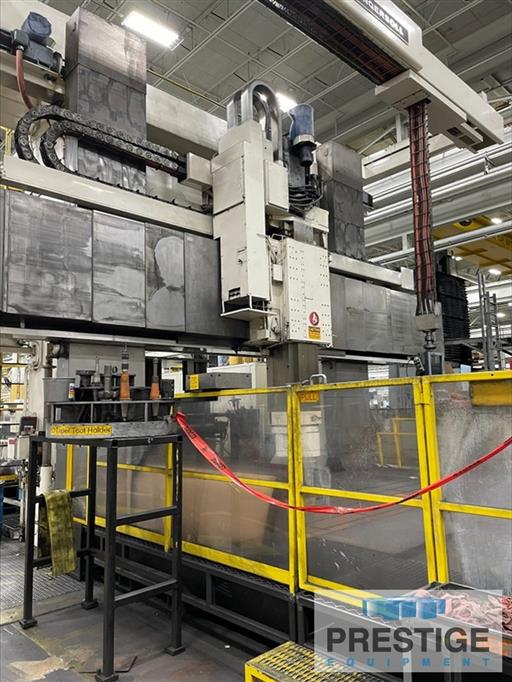

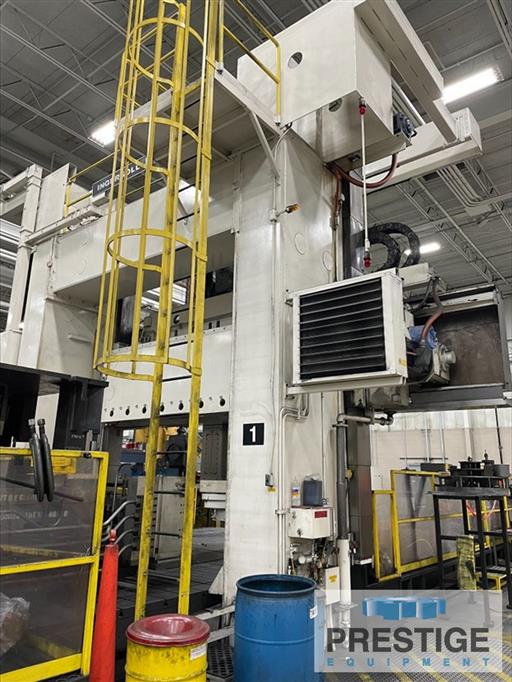

INGERSOLL 5-Axis CNC Planer Milling Machine
Model:
5-Axis
Age:
1986
Ref#:
44772
Prestige Equipment is the world's leading provider of INGERSOLL 5-Axis CNC Planer Milling Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓
Fidia C-20 5-Axis CNC Control (Retrofit 2000)
✓
Ram Type Vertical Milling Head
✓
88 Station Automatic Tool Changer (ATC)
✓
10 Station Automatic Head Changer (AAC)
✓
2-Axis Articulating Head w/ Cat 50 Taper
✓
Assorted Right Angle and Vertical Millng Heads
✓
Split Table
✓
Steel Sliding Way Covers on All Axes
✓
Thru Spindle Coolant
✓
Chip Conveyors
Product Specifications
SPECIFICATIONS:
X-Axis, Combined Tables
13398 MM
Y-Axis, Horizontal Head Travel
5875 MM
Z-Axis, Ram Travel
1001 MM
W-Axis, Travel of Cross Rail
2450 MM
A-Axis, Head Movement
360,000 Positions
B-Axis, Head Movement
360,000 Positions
SPECIFICATIONS:
Distance Between Columns
3900 MM
Distance Between Columns Way Covers
3750 MM
Height Under Spindle
3249 MM
Table Size, #1
3500 MM x 6000 MM
Table Size, #2
3500 MM x 6000 MM
Table Size, 1 & 2 Combined
3500 MM x 11994 MM
Ram Cross Section
600 MM x 600 MM
Feeds: X,Y,Z Axes
11989 MM/MIN
Rapid Traverse,
11989 MM/MIN
Spindle Speeds
2 to 2500 RPM
Spindle Drive Motor
93 KW
Spindle Taper
CAT 50
Table Weight Capacity
176 Tones
Equipped With:
Fidia C-20 5-Axis CNC Control (Retrofit 2000)
Ram Type Vertical Milling Head
88 Station Automatic Tool Changer (ATC)
10 Station Automatic Head Changer (AAC)
2-Axis Articulating Head w/ Cat 50 Taper
Assorted Right Angle and Vertical Millng Heads
Split Table
Steel Sliding Way Covers on All Axes
Thru Spindle Coolant
Chip Conveyors
Condition: Excellent
Features:
✓
Fidia C-20 5-Axis CNC Control (Retrofit 2000)
✓
Ram Type Vertical Milling Head
✓
88 Station Automatic Tool Changer (ATC)
✓
10 Station Automatic Head Changer (AAC)
✓
2-Axis Articulating Head w/ Cat 50 Taper
✓
Assorted Right Angle and Vertical Millng Heads
✓
Split Table
✓
Steel Sliding Way Covers on All Axes
✓
Thru Spindle Coolant
✓
Chip Conveyors
