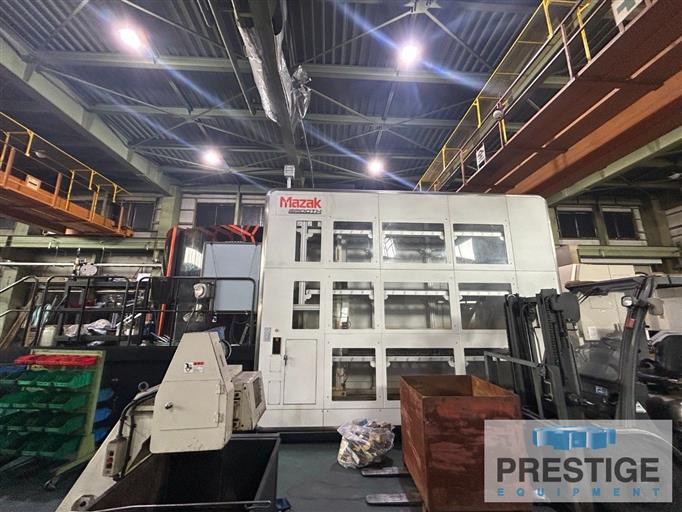

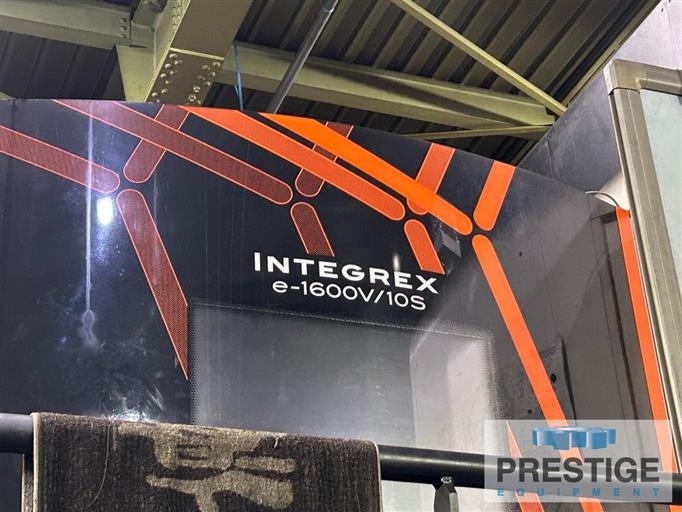

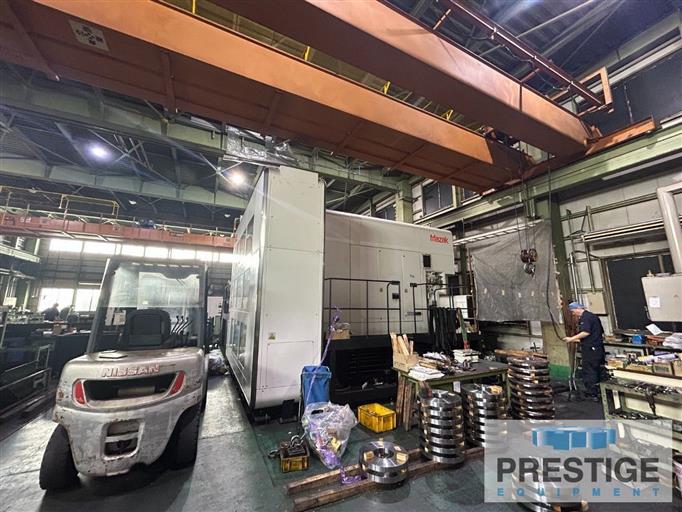

Mazak Integrex e-1600V/10S 5-Axis CNC Multi-Tasking Machine
Model:
Integrex e-1600V/10S
Age:
2020
Ref#:
44984
Prestige Equipment is the world's leading provider of Mazak Integrex e-1600V/10S 5-Axis CNC Multi-Tasking Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓

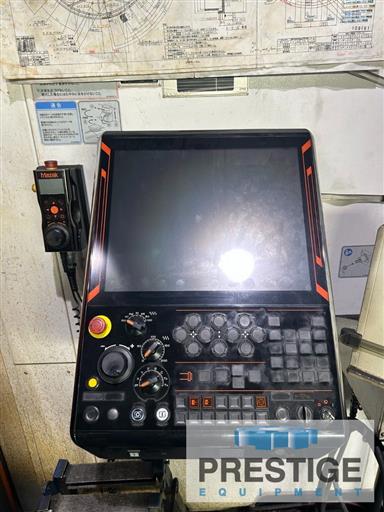

Mazatrol Matrix SmoothX CNC Control with 483 MM LCD
✓
Full C-Axis Contouring Table
✓
Full B-Axis 150 Degree Tilt Spindle
✓
120-Station Automatic Tool Changer
✓
Thru Spindle Coolant
✓
Air Thru Milling Spindle
✓
Spindle Chiller Unit
✓
Chip Conveyor
Product Specifications
CAPACITY:
Maximum Machining Diameter
2300 MM
Maximum Workpiece Size
2300 MM x 1684 MM
Table Load Capacity
6985 KG .
Spindle Speeds
300 RPM
Main Motor
40 KW
C-Axis Table Rotation
.001 Degree
Milling Spindle Speed
10,000 RPM
Spindle Taper
#50
X-Axis Travel
2165 MM
Y-Axis Travel
1600 MM
Z-Axis Travel
1345 MM
B-Axis Travel
150 Deg.
C-Axis Travel
360 Deg.
Rapid Traverse (X,Y,Z)
41986 MM/MIN
Milling Spindle Motor
37 KW
Approximate Machine Dimensions
6985 MM x 8712 MM x 4547 MM
Approximate Machine Weight
47037 KG .
Equipped With:
Mazatrol Matrix SmoothX CNC Control with 483 MM LCD
Full C-Axis Contouring Table
Full B-Axis 150 Degree Tilt Spindle
120-Station Automatic Tool Changer
Thru Spindle Coolant
Air Thru Milling Spindle
Spindle Chiller Unit
Chip Conveyor
Features:
✓
Mazatrol Matrix SmoothX CNC Control with 483 MM LCD
✓
Full C-Axis Contouring Table
✓
Full B-Axis 150 Degree Tilt Spindle
✓
120-Station Automatic Tool Changer
✓
Thru Spindle Coolant
✓
Air Thru Milling Spindle
✓
Spindle Chiller Unit
✓
Chip Conveyor
