Linmax Compact 1625 CNC Gantry Type Vertical Milling Machine
Model:
Compact 1625
Age:
2015
Ref#:
44953
Prestige Equipment is the world's leading provider of Linmax Compact 1625 CNC Gantry Type Vertical Milling Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Heidenhain iTNC 530 CNC Control
✓

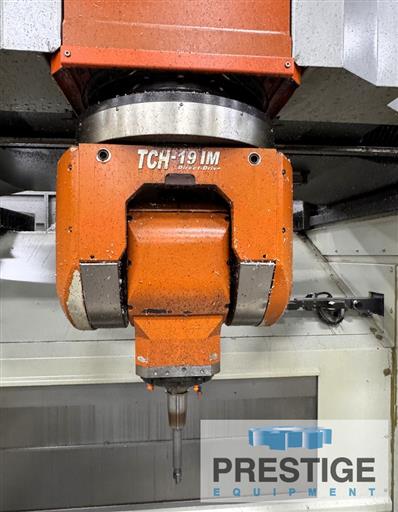

TCH-19 2-Axis Milling Head
✓

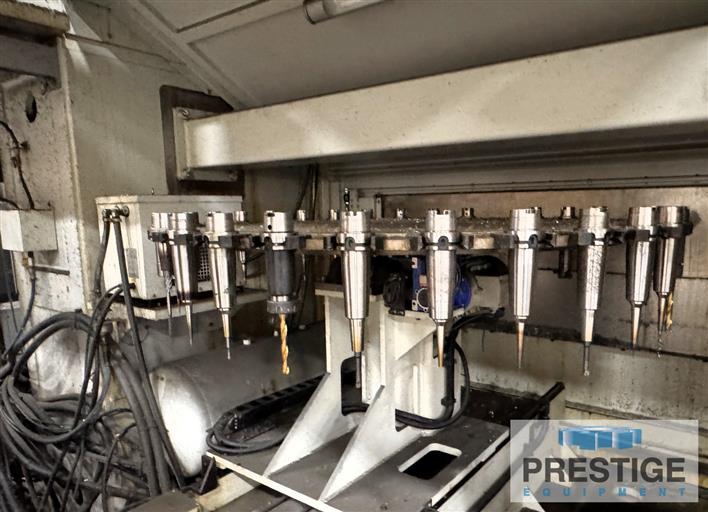

20-Station Automatic Tool Changer
✓
Blum Tool Registration
Product Specifications
SPECIFICATIONS:

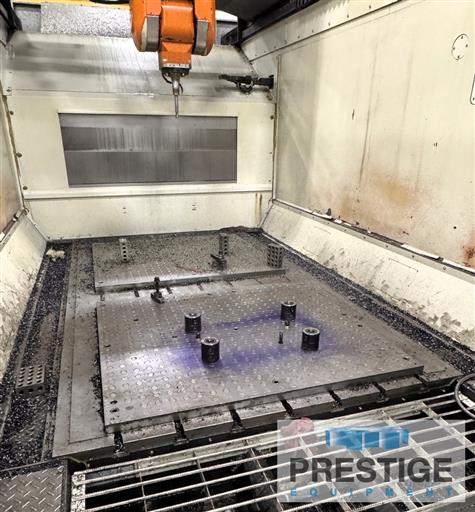

Table Dimensions
2500 MM x 1600 MM
X-Axis Travel
2500 MM
Y-Axis Travel
1600 MM
Z-Axis Travel
1000 MM
B-Axis Rotation
+/- 105°
C-Axis Rotation
+/- 270°
Spindle Speed
24,000 RPM
Spindle Taper
HSK-A63
Max. Work Piece Weight
15966 KG
Distance Between Columns
2350 MM
Distance Spindle Nose - Table
198 MM - 1199 MM
Feedrate, X/Y/Z Axes
60000 MM/MIN
Max. Tool Weight
8 KG
Max. Tool Length
350 MM
Max. Tool Diameter
63 MM
Equipped With:

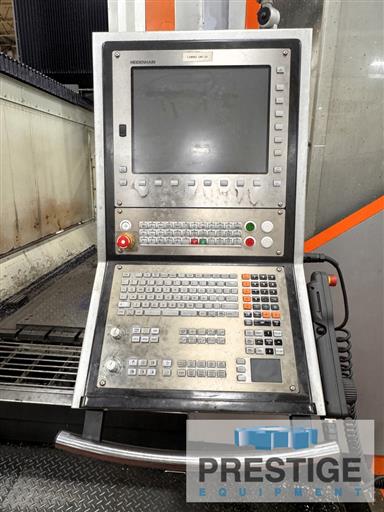

Heidenhain iTNC 530 CNC Control with Handwheel
TCH-19 2-Axis Milling Head
20-Station Automatic Tool Changer
Blum Tool Registration
X/Y Axes Linear Motor Direct Drive
Roller Linear Guideways

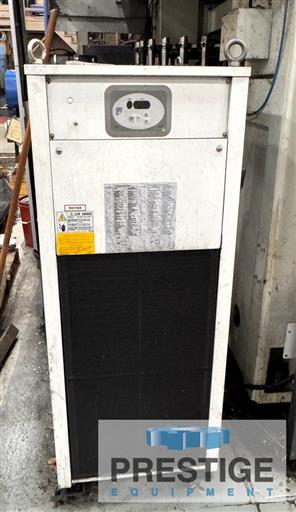

Spindle Chiller
Oil Mist Lubrication
Auction Message:
This Machine is Being Offered at Our Upcoming July 23rd & 24th Auction Sale - Model Die & Mold Inc
View The Auction
Features:
✓
Heidenhain iTNC 530 CNC Control
✓
TCH-19 2-Axis Milling Head
✓
20-Station Automatic Tool Changer
✓
Blum Tool Registration
