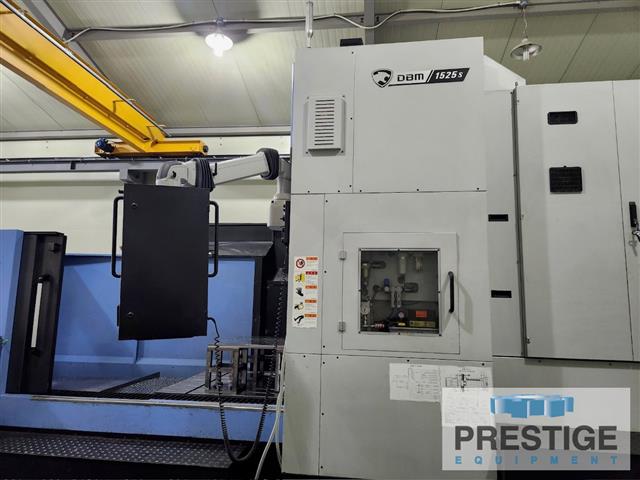

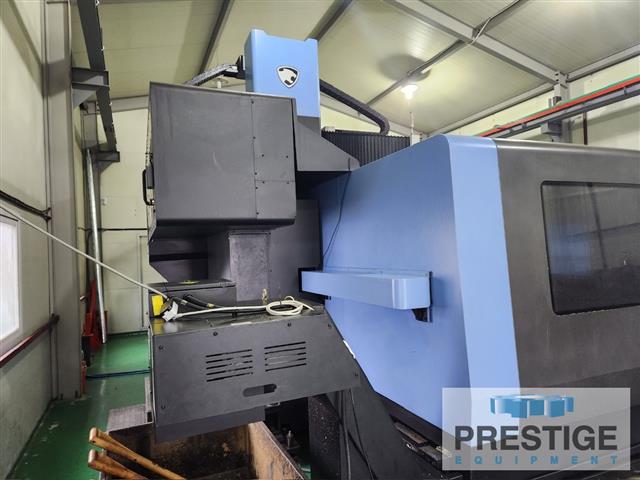

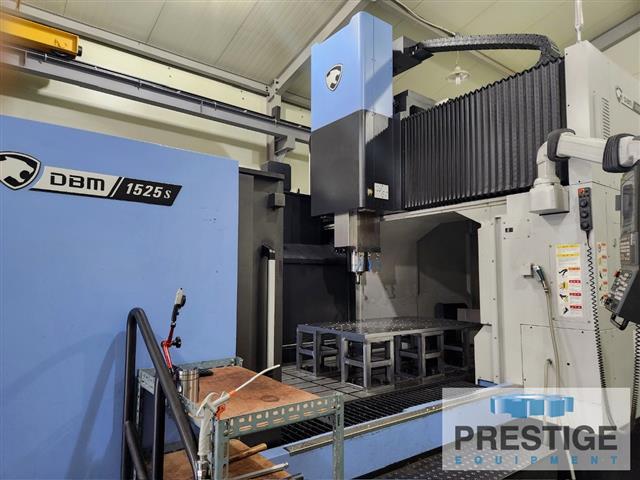

Doosan DBM-1525S CNC Double Column Vertical Machining Center
Model:
DBM-1525S
Age:
2022
Ref#:
44463
Prestige Equipment is the world's leading provider of Doosan DBM-1525S CNC Double Column Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Fanuc 31iB CNC Control
✓
40-Station Automatic Tool Changer
✓
Linear Scales X,Y & Z Axis
✓
TS27R Tool Setter
✓
300 MM Riser Block
✓
Semi Splash Guard wtih Rear Top Cover
✓
Chip Conveyor
Product Specifications
SPECIFICATIONS:
X-Axis Travel
2800 MM
Y-Axis Travel
1350 MM
Z-Axis Travel
750 MM
Table to Spindle Nose
250 MM -1300 MM
Distance Between Columns
1550 MM
Table Size
2800 MM x 1250 MM
Table Capacity
9979 KG
Spindle Speeds
12,000 RPM
Spindle Drive Motor
30 KW
Spindle Taper
#50
Machine Electrics
220/3/60
Approximate Weight
28939 KG .
Equipped With:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
Linear Scales X,Y & Z Axis
TS27R Tool Setter
300 MM Raised Column
Semi Splash Guard wtih Rear Top Cover
Chip Conveyor
NOTE: This DBM1525S has Z-axis Box Ways & double ball screws to secure heavy duty machining.
Features:
✓
Fanuc 31iB CNC Control
✓
40-Station Automatic Tool Changer
✓
Linear Scales X,Y & Z Axis
✓
TS27R Tool Setter
✓
300 MM Riser Block
✓
Semi Splash Guard wtih Rear Top Cover
✓
Chip Conveyor
