940 MM x 3988 MM Hankook Protec 9NC CNC Hollow Spindle Lathe
Model:
Protec 9NC
Age:
2010
Ref#:
45168
Prestige Equipment is the world's leading provider of 940 MM x 3988 MM Hankook Protec 9NC CNC Hollow Spindle Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Oil Field & Hollow Spindle Lathes for sale.
Product Specifications
Features:
✓
Fanuc 21i-TB CNC Control
✓
254 MM Spindle Bore
✓
800 MM 4-Jaw Front & Rear Chucks
Product Specifications
CAPACITY:
Maximum Swing Over Bed
950 MM
Maximum Swing Over Slide
630 MM
Distance Between Centers
4000 MM
Maximum Workpiece Weight
4990 KG
Bed Width
630 MM
Spindle Speeds, 3 Ranges
2-630 RPM
Spindle Bore
254 MM
Spindle Drive Motor
37 KW
X-Axis Travel (Cross)
536 MM
Z-Axis Travel (Longitundinal)
3835 MM
X-Axis Rapid Traverse
3988 MM/MIN
Z-Axis Rapid Traverse
5994 MM/MIN
Tailstock Quill Diameter
160 MM
Tailstock Spindle Taper
#6 MT
Approx Overall Machine Weight
9172 KG .
Equipped With:

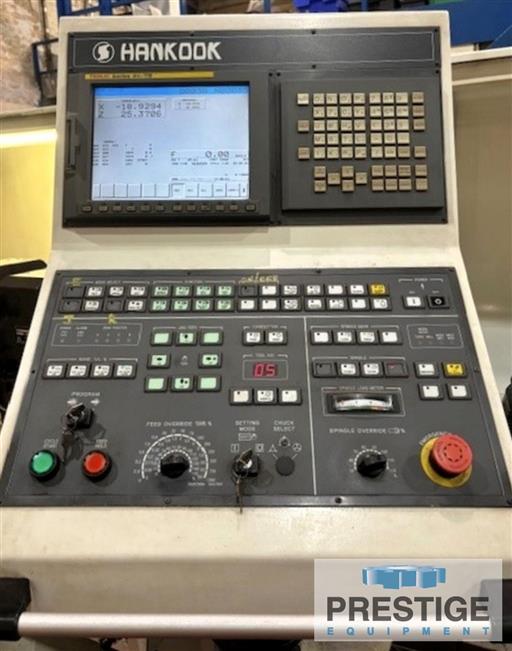

Fanuc 21i-TB CNC Control

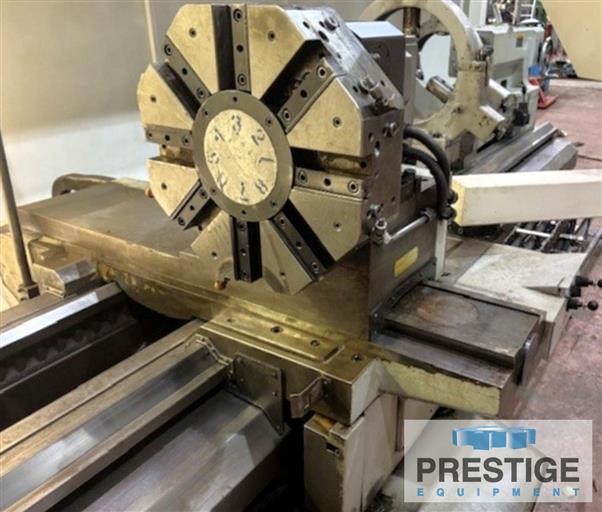

Duplomatic 8-Station Auto Indexing Turret

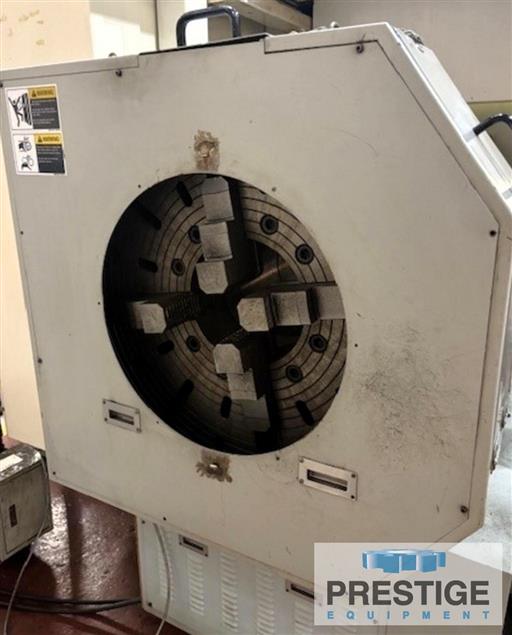

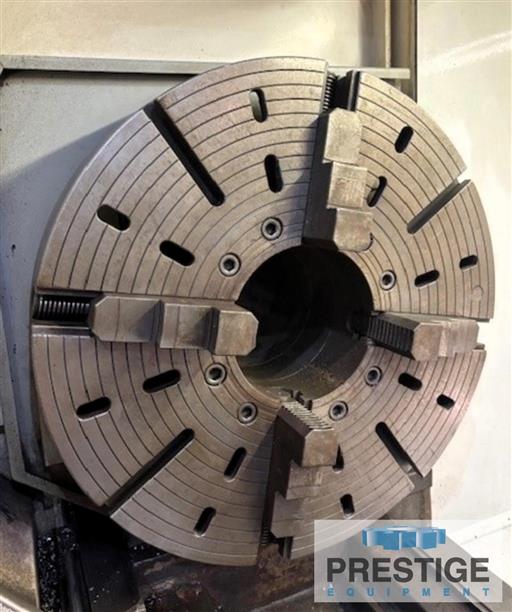

800 MM 4-Jaw Front & Rear Chucks

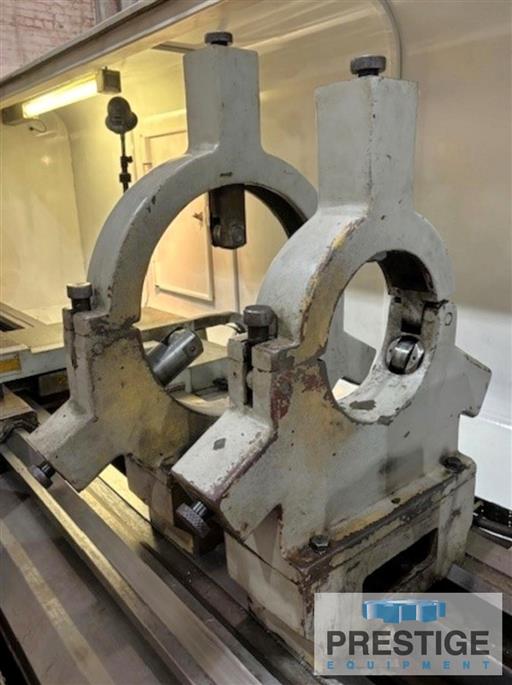

249 MM Steady Rest
450 MM Steady Rest
Tailstock

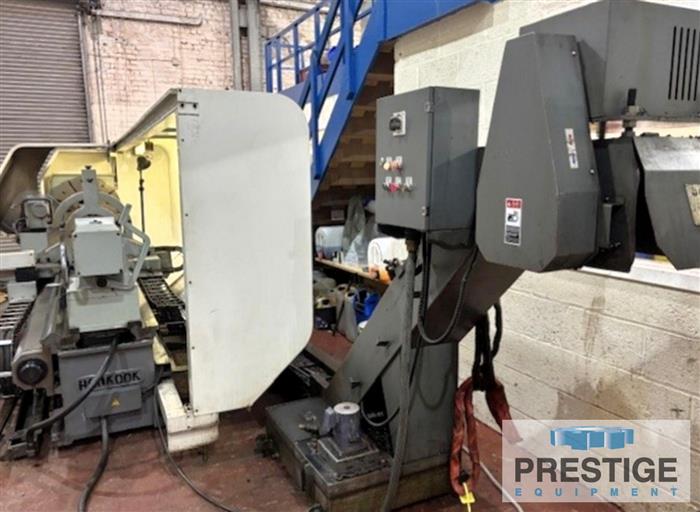

Chip Conveyor
Features:
✓
Fanuc 21i-TB CNC Control
✓
254 MM Spindle Bore
✓
800 MM 4-Jaw Front & Rear Chucks
