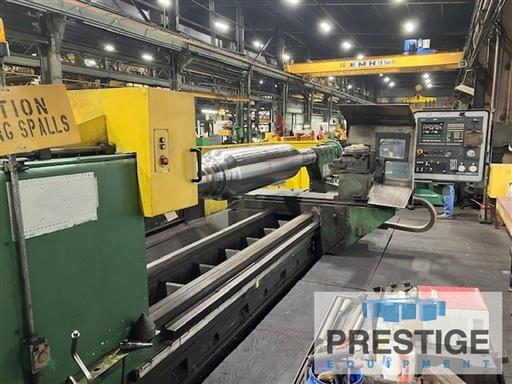

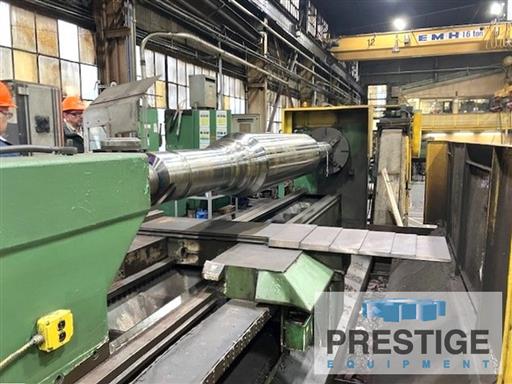

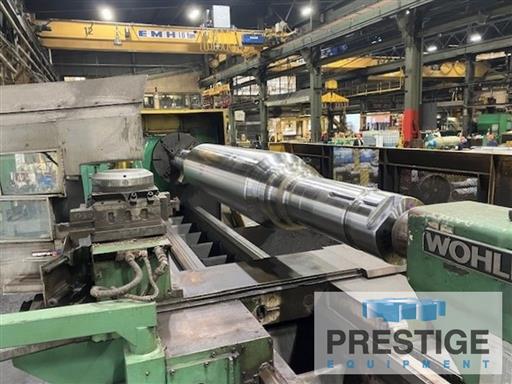

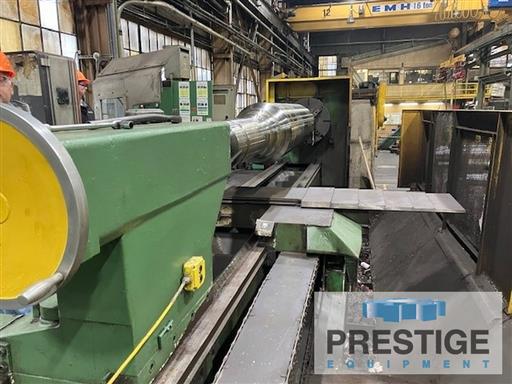

Wohlenberg PT-250 II 1295 MM x 5309 MM Heavy Duty CNC Lathe
Model:
PT-250 II
Age:
1996
Ref#:
43886
Prestige Equipment is the world's leading provider of Wohlenberg PT-250 II 1295 MM x 5309 MM Heavy Duty CNC Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓

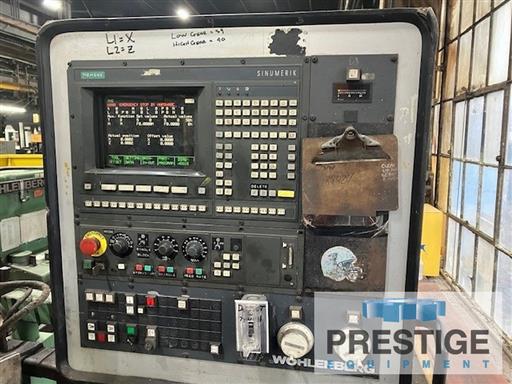

Siemens 820T CNC Control
✓

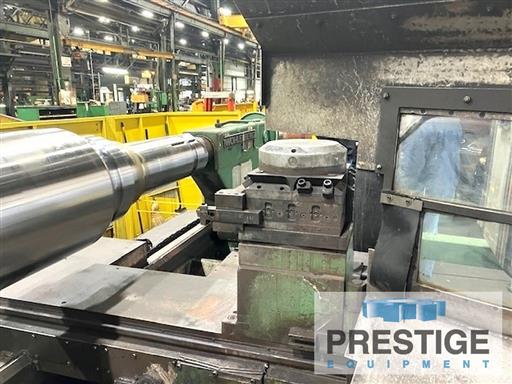

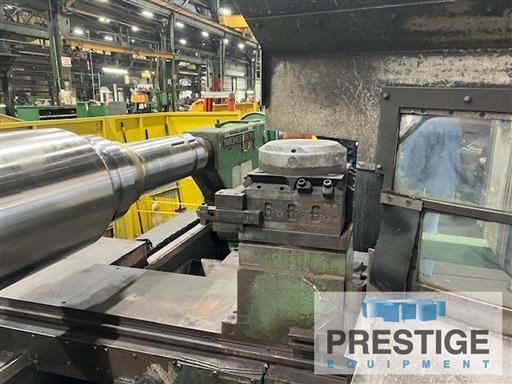

4-Position Sauter Turret
✓
60 KW
Product Specifications
SPECIFICATIONS:
Maximum Swing Over Bedways
1310 MM
Swing Over Cross Slide
900 MM
Cutting Diameter
900 MM
Distance Between Centers
5309 MM
Spindle Speed Range, Low
3.55-180 RPM
Spindle Speed Range, High
14-710 RPM
Feed Range
6000 MM/MIN
Feed Override Rate
6000 MM/MIN
X-Axis Rapid Traverse
6000 MM/MIN
Y-Axis Rapid Traverse
6000 MM/MIN
Threading
CNC Control
Chuck Capacity
102 MM to 546 MM
Distance Tool Can Approach Chuck
305 MM
Maximum Roll Weight Between Centers
8001 KG
Maximum Weight in Chuck Only
2500 KG
Tailstock Center Taper
MK6 Metric
Coolant Tank Capacity
150 Gallons
Machine Weight
19958 KG
Main Motor
60 KW
Equipped With:
Siemens 820T CNC Control
4-Position Sauter Turret
Spindle Speed Indicator
Coolant
60 KW Main Motor
Features:
✓
Siemens 820T CNC Control
✓
4-Position Sauter Turret
✓
60 KW
