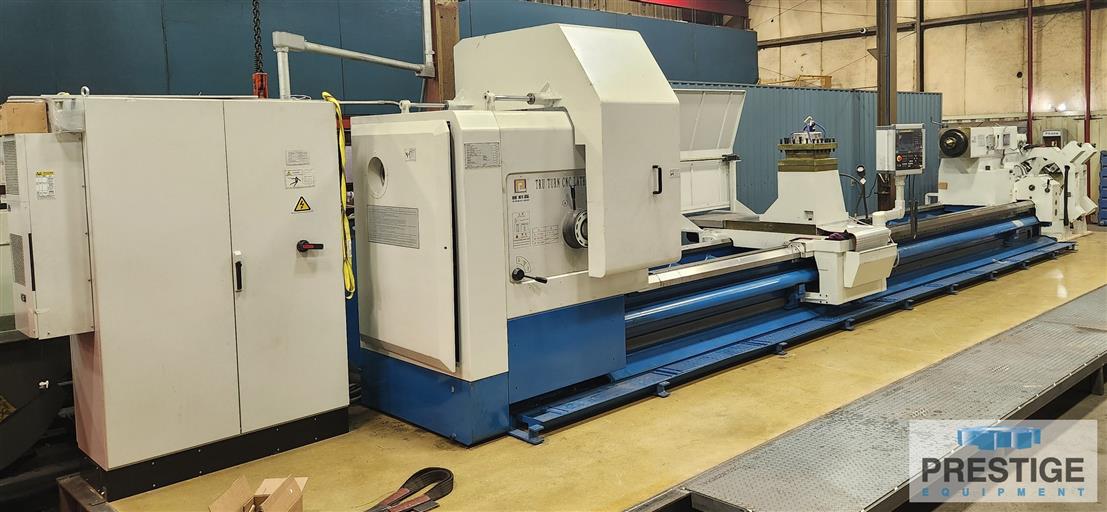

Tru Turn 1640 MM x 6000 MM CNC Lathe
Model:
CKD61160H
Age:
2026
Ref#:
44563
Prestige Equipment is the world's leading provider of Tru Turn 1640 MM x 6000 MM CNC Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Product Specifications
Chuck Diameter
1600 MM
Max Swing over Bed
1640 MM
Max Swing Over Carriage
1250 MM
Width of Bed
1100 MM
Max Workpiece length
6000 MM
Max Weight Between Centers
20 Ton
Spindle Speeds
3.15-315 RPM
Spindle Bore
130 MM
Max Strole, X-Axis
750 MM
Max Stroke Z-Axis
5800 MM
Rapids, X-Axis
4000 MM
Rapids, Z-Axis
4000 MM
Diameter of Tailstock Quill
280 MM
Travel of Tailstock Quill
300 MM
Tailstock Speed, Motorized
1000 MM/MIN
EQUIPPED As Follows:
FANUC TF1 & Fanuc Spindle Motor
Electrical power four position tool post
Manual 4 gears shift spindle speed
Main motor is 37 KW Fanuc servo motor and feed motors are FANUC
1600mm four jaw chuck
Z axis ball screw
NSK headstock spindle bearings
NSK tailstock spindle bearings
NSK bearings of X axis ball screw
Motorized tailstock
400-700mm steady rest
120-480mm Steady Rest
4:1 Taper Center to 60 degree
Chip Conveyor
Warranty:
1 Year Parts Warranty
