Prestige Equipment is the world's leading provider of 78" x 236" PD 2000/6000 CM CNC Heavy Duty Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓

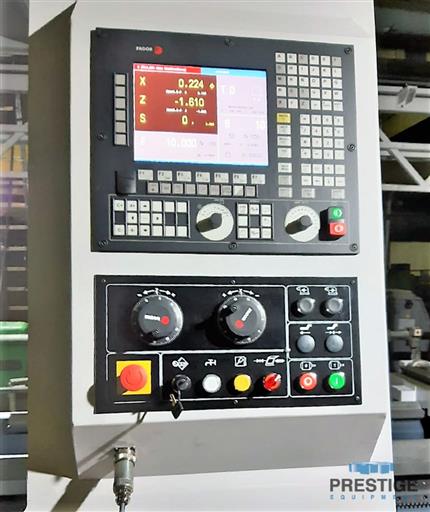

Fagor 8055T CNC Control
✓

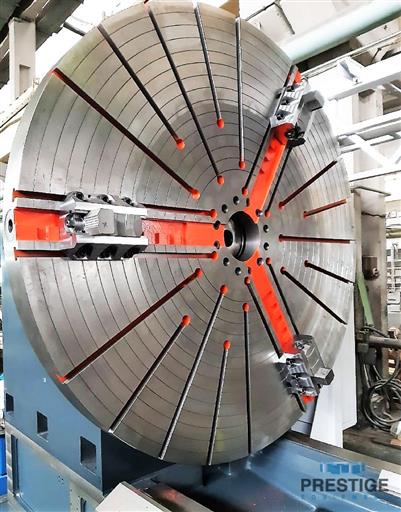

78.74" Diameter Face Plate Type Chuck
✓
15.7" - 31.5" Steady Rest
✓
Manual Tailstock with Electrical Displacement
Product Specifications
CAPACITY:
Swing Over Bed
78.74"
Swing Over Carriage
62.99"
Distance Between Centers
236.22"
Spindle Speeds, 3-Range
1 - 500 RPM
Spindle Bore
8.26"
Bed Width
44.09"
Tailstock Quill Diameter
8.66"
Tailstock Quill Taper
ME80
Max. Workpiece Weight, Unsupported
13,200 Lbs
Max. Workpiece Weight, Supported
55,000 Lbs
Main Spindle Motor
68 HP / 95 HP
Approximate Machine Weight
70,400 Lbs
Equipped With:
Fagor 8055T CNC Control
78.74" Diameter Face Plate Type Chuck
15.7" - 31.5" Steady Rest
Manual Tailstock with Electrical Displacement
Central Lubrication System
Rear Splash Guard
Coolant System
AXA K55 4-Position Tool Post
NOTE:
Machine is Brand New
Features:
✓
Fagor 8055T CNC Control
✓
78.74" Diameter Face Plate Type Chuck
✓
15.7" - 31.5" Steady Rest
✓
Manual Tailstock with Electrical Displacement
