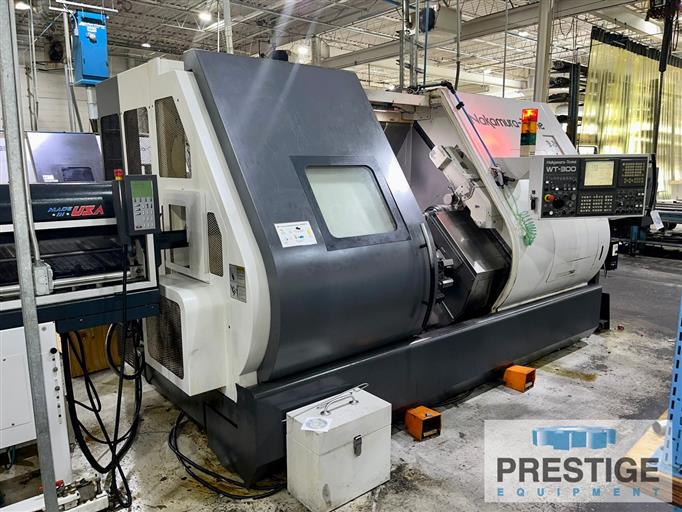

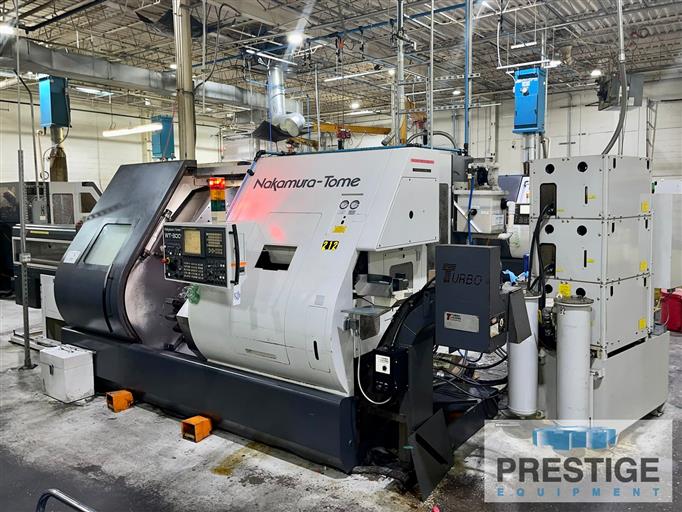

Prestige Equipment is the world's leading provider of Nakamura Tome WT-300 Multi Axis CNC Turning & Milling Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used Three Axis Or More CNC Lathes for sale.
Product Specifications
Features:
✓

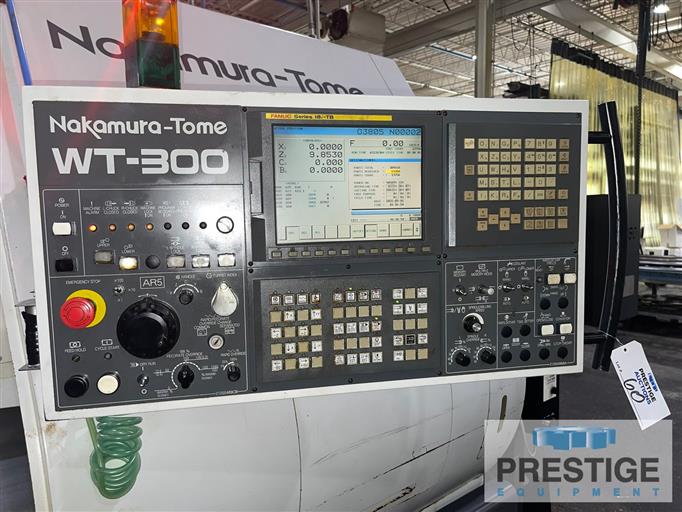

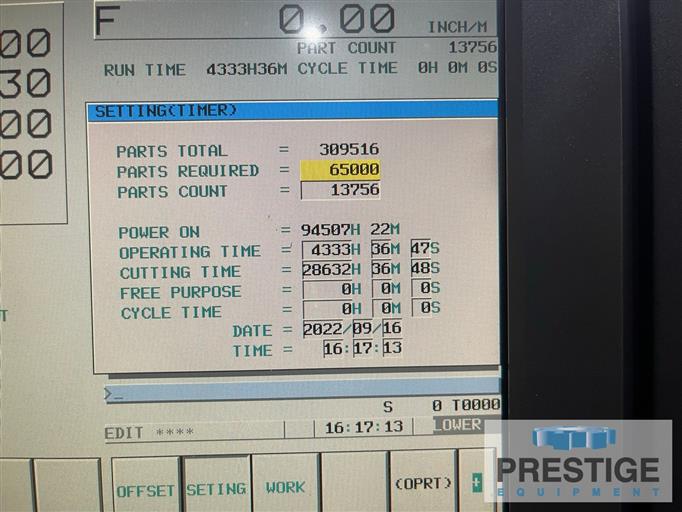

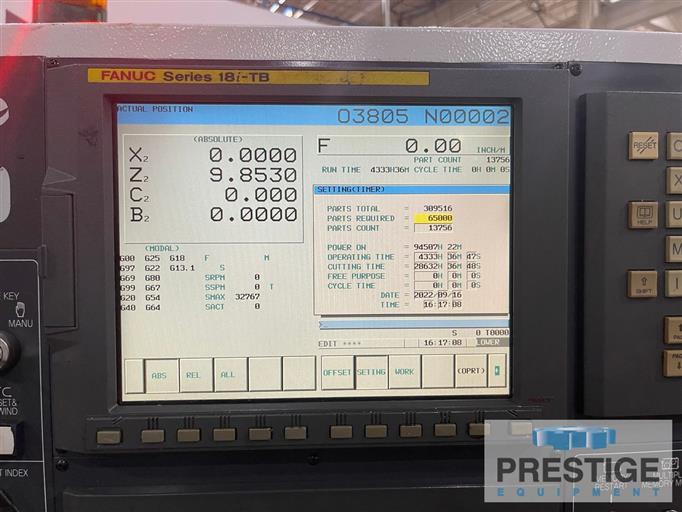

Fanuc 18i-TB CNC Control
✓
Twin 24-Station Turrets With Milling
✓
Twin Opposed Spindles
✓
C-Axis Both Spindles
✓
Y-Axis Upper Turret
✓

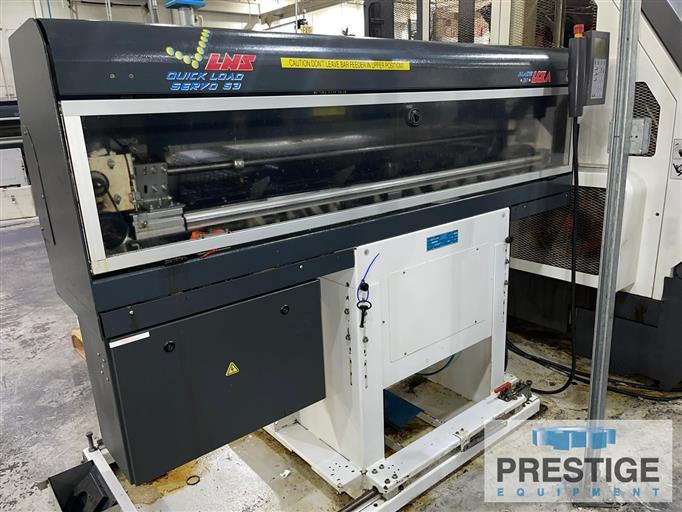

LNS QL Servo S3 Magazine Bar Feed
✓

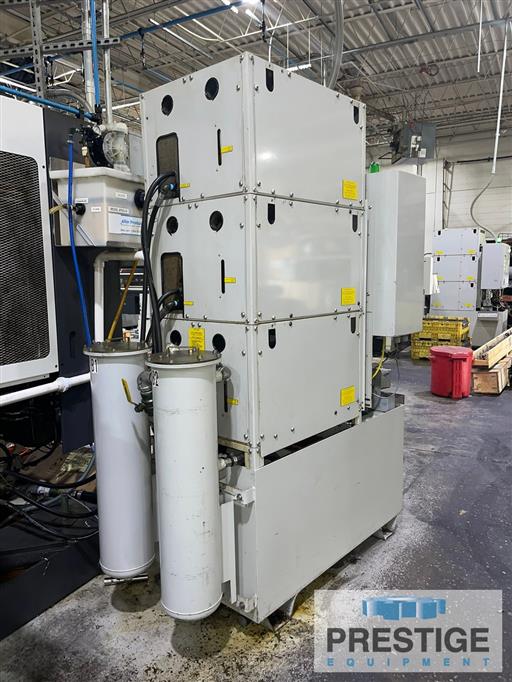

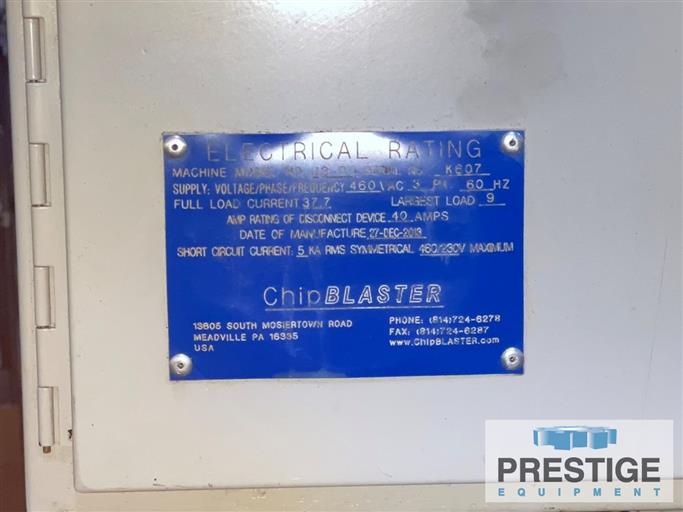

Chip Blaster High Pressure Coolant
Product Specifications
SPECIFICATION:
Maximum Swing
9.84"
Maximum Turning Diameter
10.62"
Maximum Turning Length
30.71"
Distance Between Spindles
43.3"
Bar Capacity
2.5"
MAIN SPINDLE:
Main Spindle Speeds
45-4500 RPM
C-Axis Rotation
0.001 Degree
Main Spindle Bore
3.15"
Main Spindle Motor
25 HP
Main Spindle Nose
A2-6

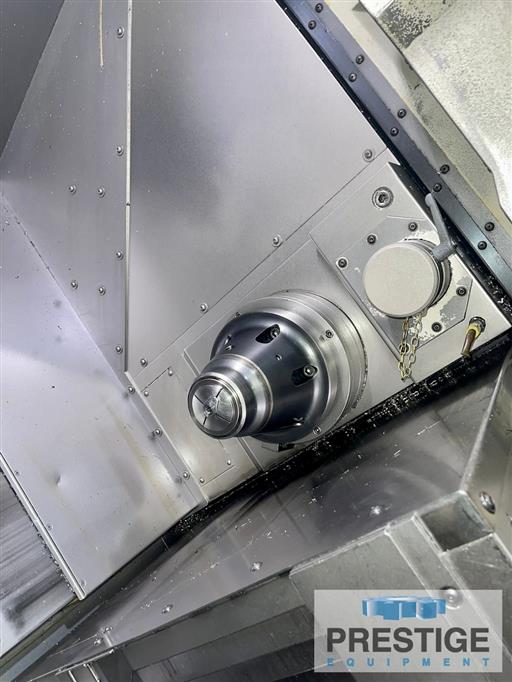

COUNTER-SPINDLE:
Sub Spindle Speed
4500 RPM
C-Axis Rotation
0.001 Degree
B-Axis Travel
33.46"
Sub Spindle Bore
3.15"
Sub Spindle Motor
25 HP
Spindle Nose
A2-6

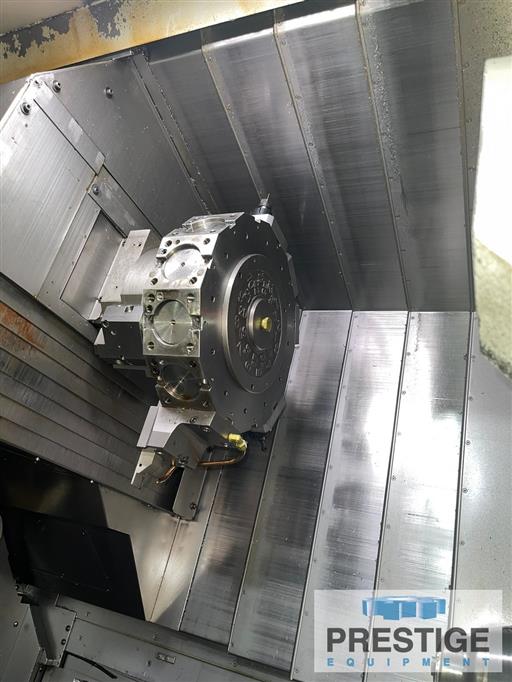

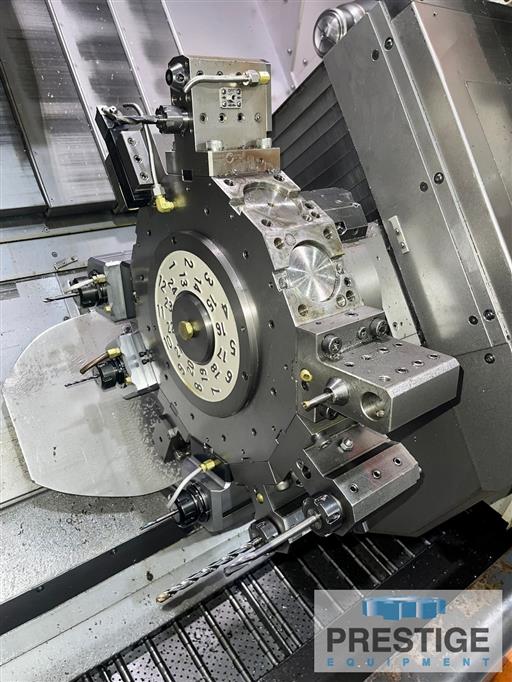

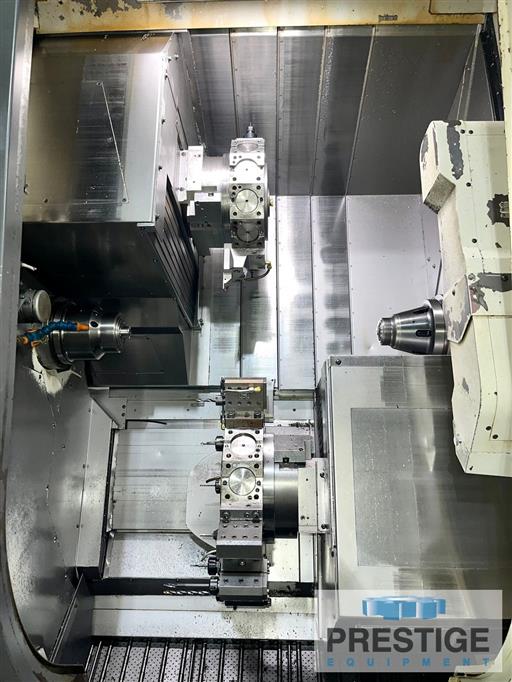

UPPER & LOWER TURRETS:
Number of Turning Stations
12 Each
Number of Rotary Tool Stations
12 Each
Rotary Tool Speeds
3600 RPM
Rotary Tool Motor
7.5 HP
X1/X2 Travel
7.68"
Z1/Z2 Travel
30.71"
Y1 Travel (Upper Turret)
2.36"
DIMENSIONS & WEIGHTS:
Approx. Machine Dimensions
190" x 99" x 90"
Approx. Machine Weight
26,400 Lbs
Equipped With:
Fanuc 18i-TB CNC Control
Twin 24-Station Turrets With Milling
Twin Opposed Spindles
C-Axis Both Spindles
Y-Axis Upper Turret
Chip Blaster High Pressure Coolant

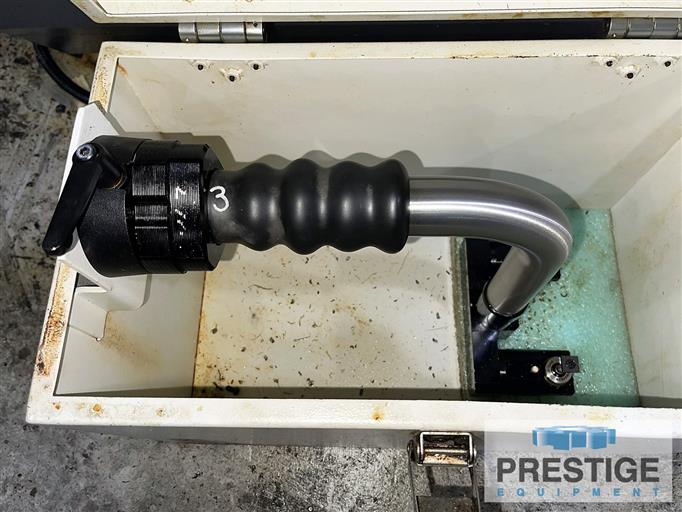

Tool Pre-Setter
Parts Catcher

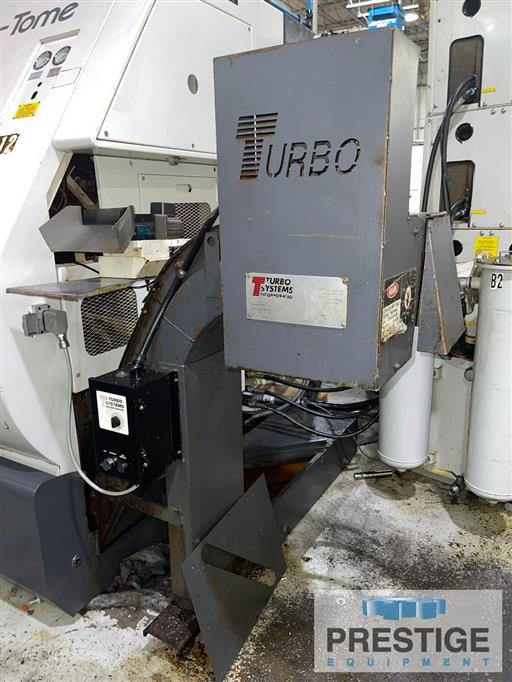

Parts Conveyor

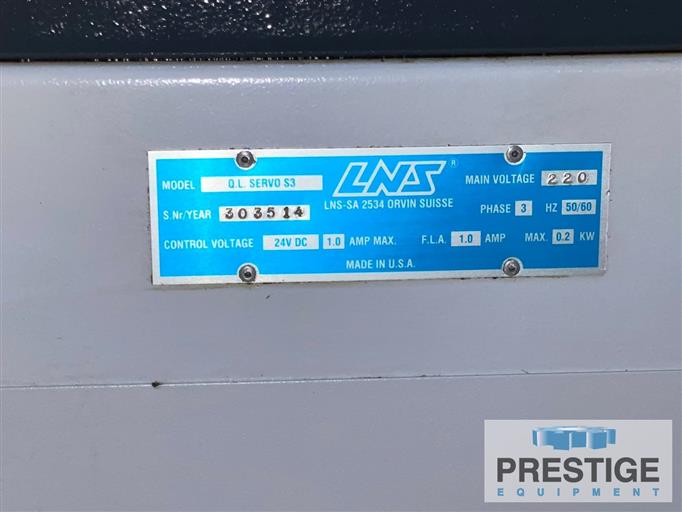

LNS QL Servo S3 Magazine Bar Feed
LNS Chip Conveyor
Features:
✓
Fanuc 18i-TB CNC Control
✓
Twin 24-Station Turrets With Milling
✓
Twin Opposed Spindles
✓
C-Axis Both Spindles
✓
Y-Axis Upper Turret
✓
LNS QL Servo S3 Magazine Bar Feed
✓
Chip Blaster High Pressure Coolant
