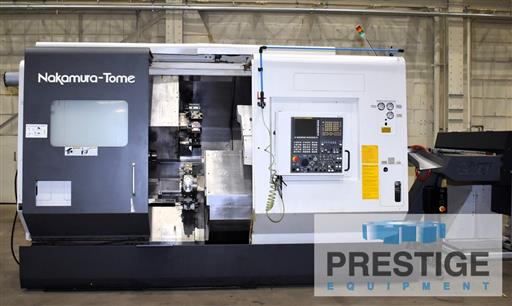

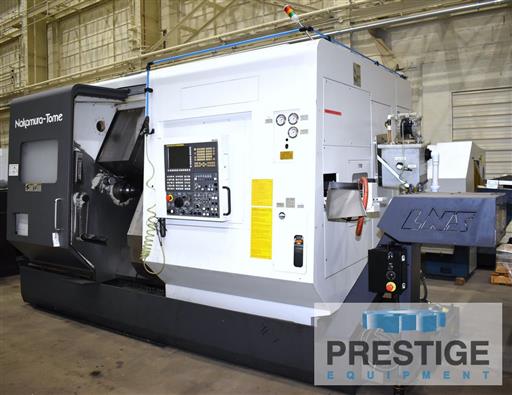

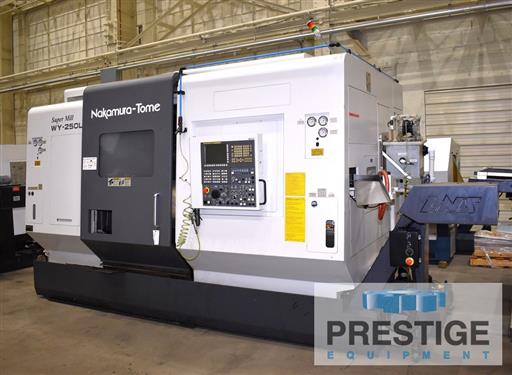

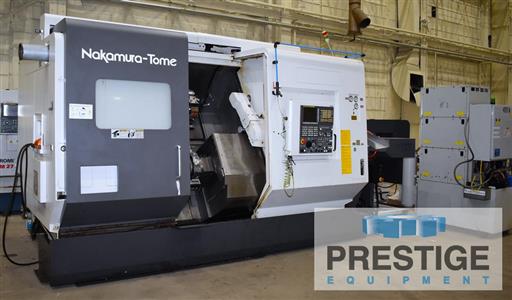

Nakamura Tome Super-Mill WY-250L CNC Multi-Axis Turning/Milling Center
Model:
Super-Mill WY-250L
Age:
2012
Ref#:
32284
Prestige Equipment is the world's leading provider of Nakamura Tome Super-Mill WY-250L CNC Multi-Axis Turning/Milling Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used Three Axis Or More CNC Lathes for sale.
Product Specifications
Features:
✓
Fanuc 31i-A CNC Control
✓
Dual Opposed Spindles With C-Axis
✓
Upper & Lower Turrets With Y-Axis
✓
Live Milling On Both Turrets
✓
Chip Blaster
✓
LNS QL Servo S3 Bar Loader
✓
Chip Conveyor
Product Specifications
Serial Number
N280204
SPECIFICATIONS:
Distance Between Spindles
47.24"
Maximum Turning Diameter
8.9"
Maximum Turning Length
35.8"
X-Axis Travel, X1/X2
6.3" / 6.5
Z-Axis Travel, Z1/Z2
35.8"
Bar Capacity
1"
MAIN SPINDLE:
Main Spindle Speed
3500 RPM
Main Spindle Motor
25 HP
Main Spindle Bore
2.6"
Main Spindle Nose
A2-8
C-Axis Rotation
0.001 Degree

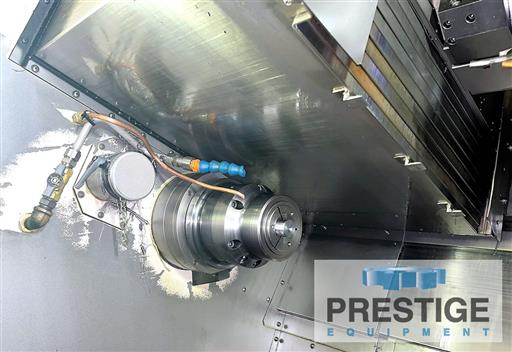

SUB-SPINDLE:
Sub Spindle Speed
4500 RPM
Sub Spindle Bore
2"
Sub Spindle Motor
20 HP
Sub-Spindle Nose
A2-6
C-Axis Rotation
0.001 Degree
B-Axis Travel
37.2"
UPPER & LOWER TURRETS:
Driven Tool Speeds
6000 RPM
Driven Tool Motor
7.5 HP
Y-Axis Movement
4"/2"
Equipped With:

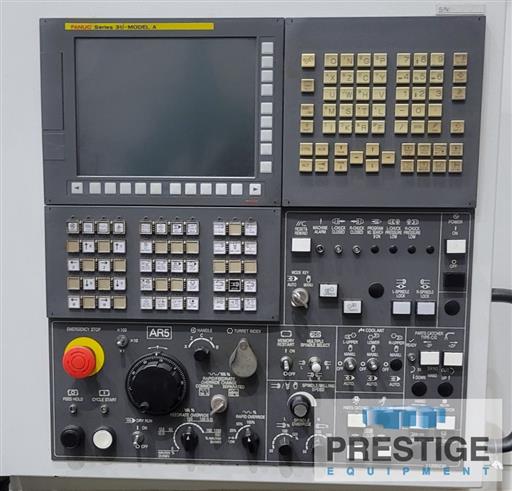

Fanuc 31i-A CNC Control
Twin Opposed Spindles With C-Axis

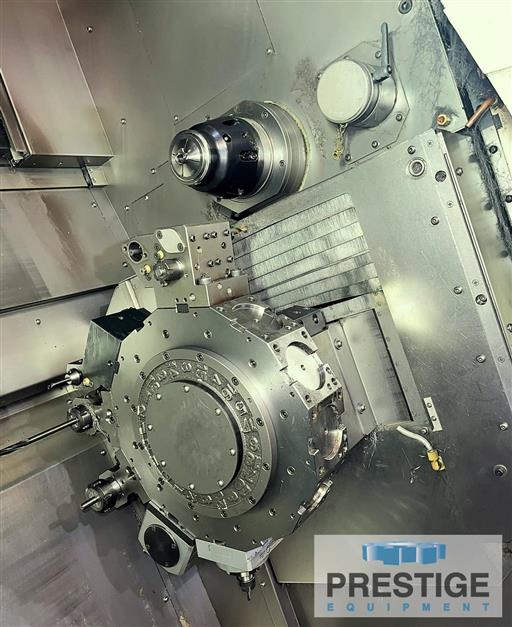

Upper Turret With 12-Turning & 12-Rotary Stations

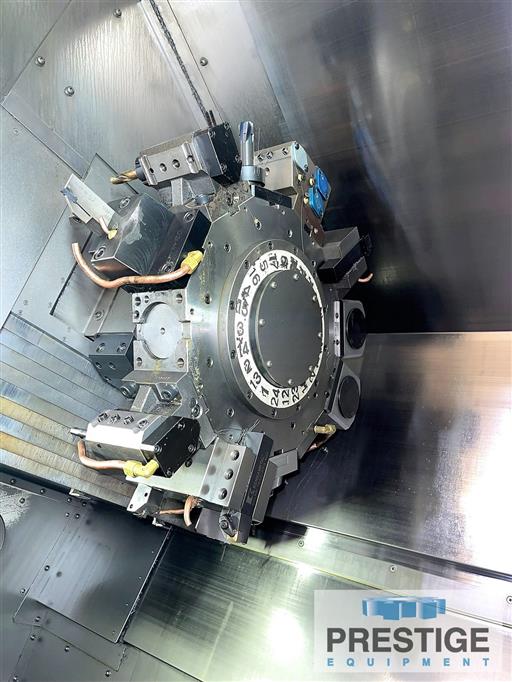

Lower Turret With 12-Turning & 12-Rotary Stations
C-Axis On Both Spindles
Y-Axis On Upper & Lower Turrets
Tool Setter
Parts Catcher
Parts Conveyor

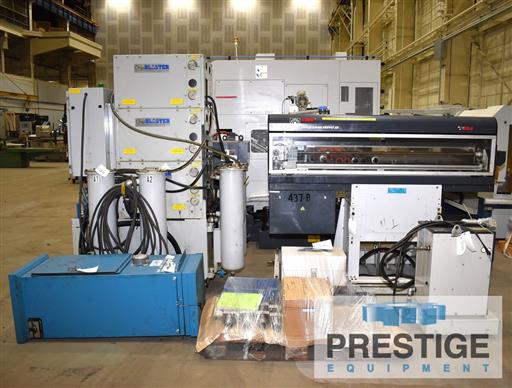

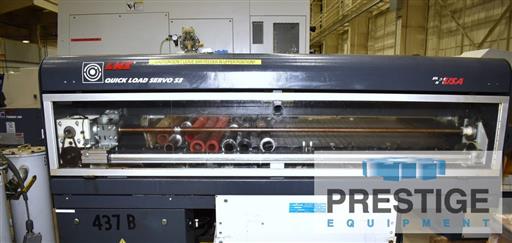

LNS QL Servo S3 Magazine Bar Feed
LNS Chip Conveyor

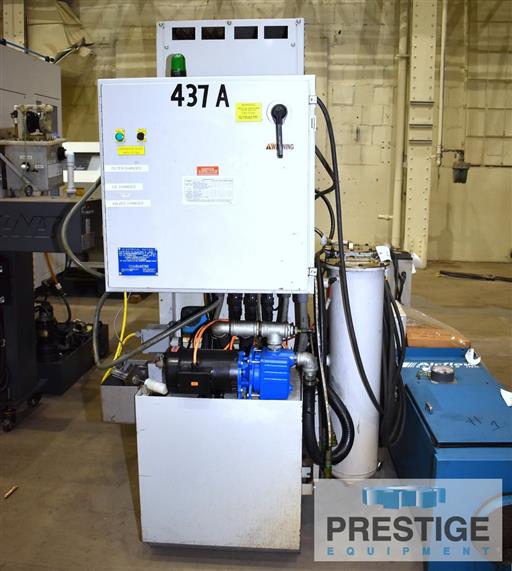

Chip Blaster High Pressure Coolant
Airflow Mist Collector
Features:
✓
Fanuc 31i-A CNC Control
✓
Dual Opposed Spindles With C-Axis
✓
Upper & Lower Turrets With Y-Axis
✓
Live Milling On Both Turrets
✓
Chip Blaster
✓
LNS QL Servo S3 Bar Loader
✓
Chip Conveyor
