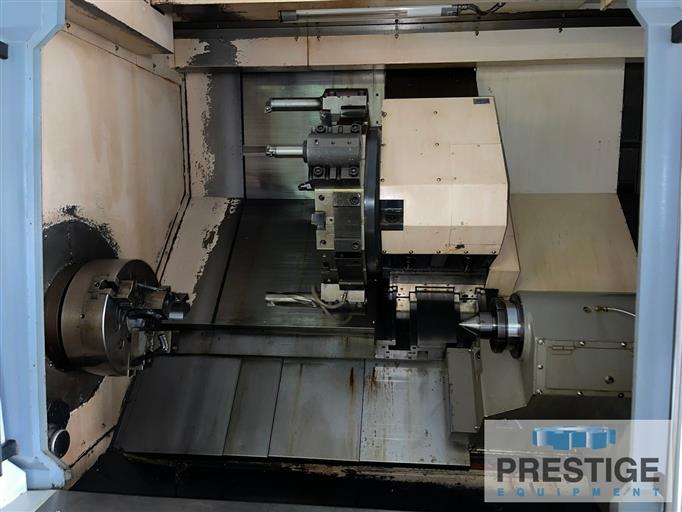

MIGHTY VIPER VT40A-1000 CNC Turning Center
Model:
VT40A-1000
Age:
2009
Ref#:
32195
Prestige Equipment is the world's leading provider of MIGHTY VIPER VT40A-1000 CNC Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
✓

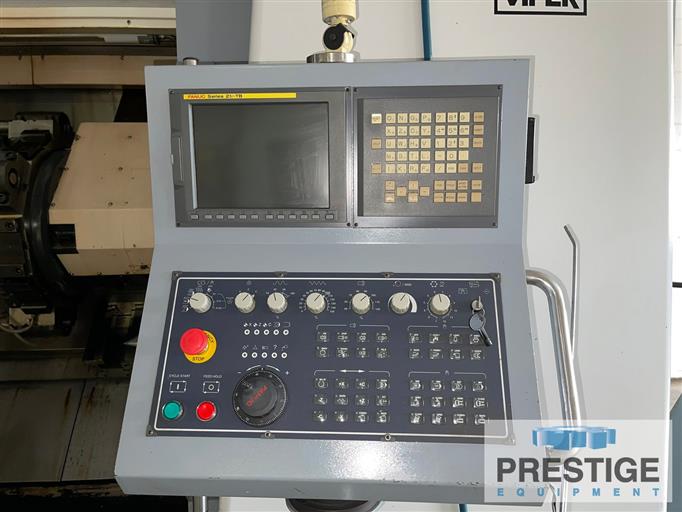

Fanuc 21i-TB CNC Control
✓

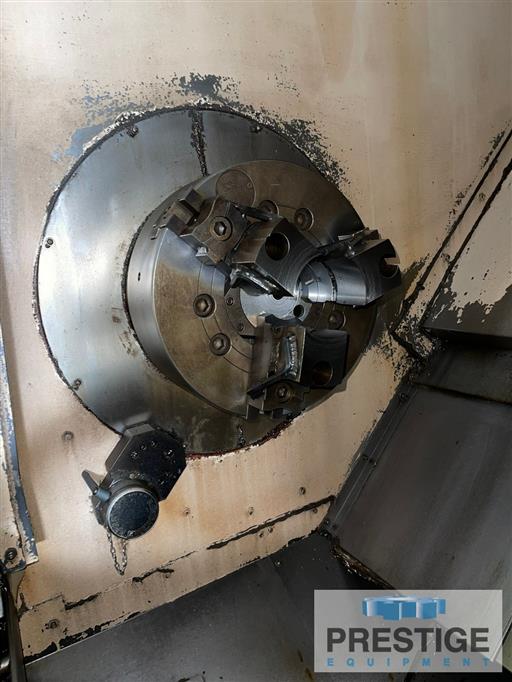

15" 3-Jaw Chuck
✓

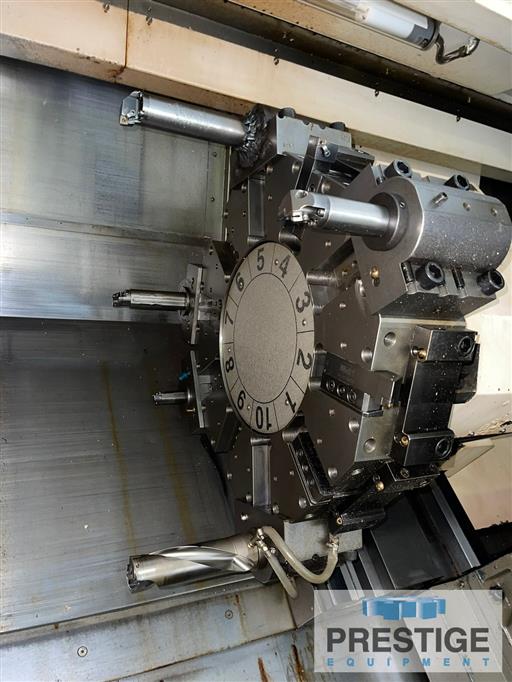

10-Position Turret
✓

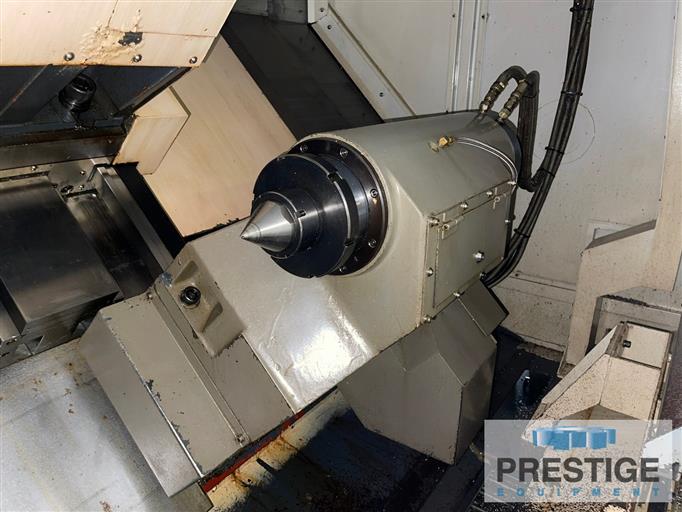

Programmable Tailstock
✓
Chip Conveyor
Product Specifications
CAPACITIES:
Swing Over Bedways
39.37"
Maximum Turning Diameter
34.64"
Swing Over Cross Slide
29.13
Maximum Turning Length
37.79"
Slideway Slant Angle
45 Degrees
X-Axis Travel
17.72"
Z-Axis Travel
39.37"
Spindle Nose
A2-11
Spindle Hole Diameter
5.15"
Bar Capacity
4.52"
Spindle Drive Motor (Updgraded......... 60 HP
60 HP
Spindle Speed Range (2-Speed Gearbox).. 1-2000 RPM
1-2000 RPM
X-Axis Rapid Traverse
590 IPM
Z-Axis Rapid Traverse
629.92 IPM
Approximate Floor Space
161" x 110"
Approximate Weight
28,600
Equipped With:
Fanuc 21i-TB CNC Control
15" 3-Jaw Chuck
10-Position Turret
Programmable Tailstock
Automatic Lubrication
Coolant System

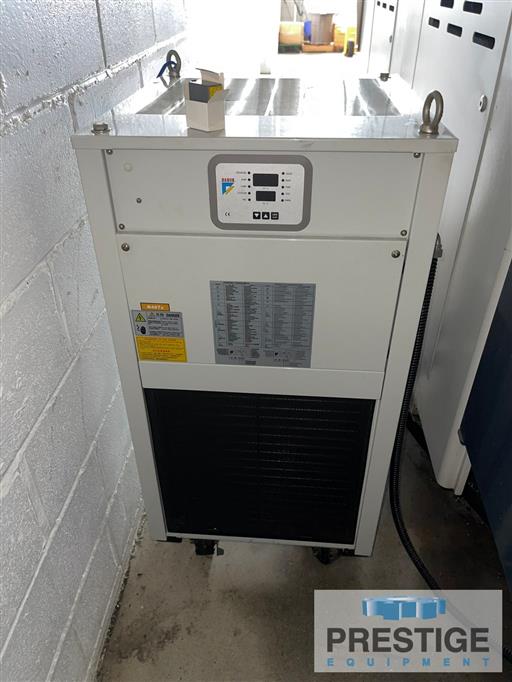

Heat Exchanger
Built in Work Light
Front Door Safety Lock
Chip Conveyor
NOTE:
Inspect In Plant Under Power
Features:
✓
Fanuc 21i-TB CNC Control
✓
15" 3-Jaw Chuck
✓
10-Position Turret
✓
Programmable Tailstock
✓
Chip Conveyor
