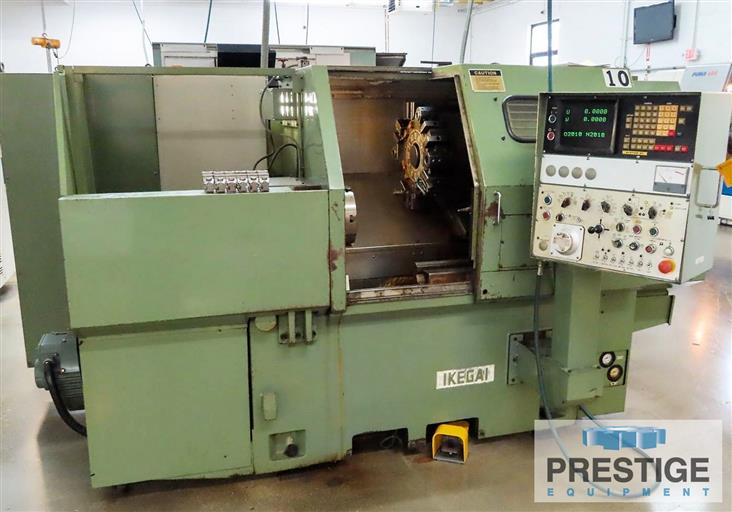

Prestige Equipment is the world's leading provider of Ikegai AX20N 20" x 22" CNC Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Product Specifications
FEATURE:
Fanuc 6T CNC Control

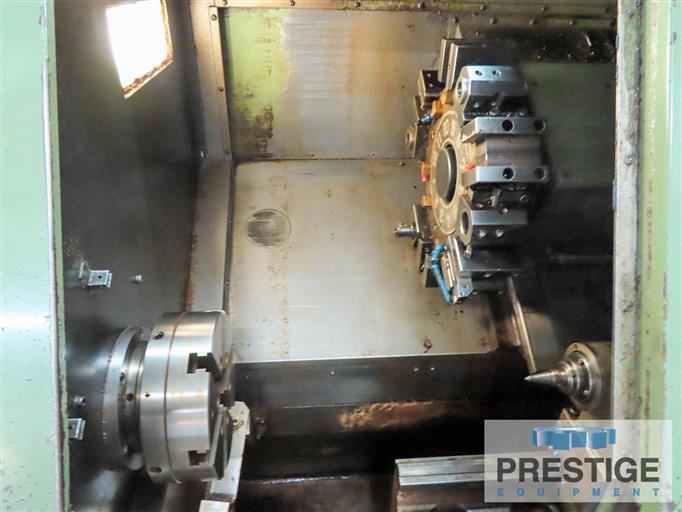

12-Station Auto Indexing Turret
8" Chuck
Tailstock
SPECIFICATION:
Maximum Swing
20"
Swing Over Carriage
14.25"
Distance Between Centers
22.25"
Spindle Speed
4,000 RPM
X-Axis Stroke
9.81"
Z-Axis Stroke
27.5"
Spindle Thru Hole
3.03"
Tailstock Quill Diameter
4"
Tailstock Quill Travel
4"
Tailstock Quill Taper
#4MT
Equipped With:
Fanuc 6T CNC Control
12-Station Auto Indexing Turret
8" Chuck
Tailstock
