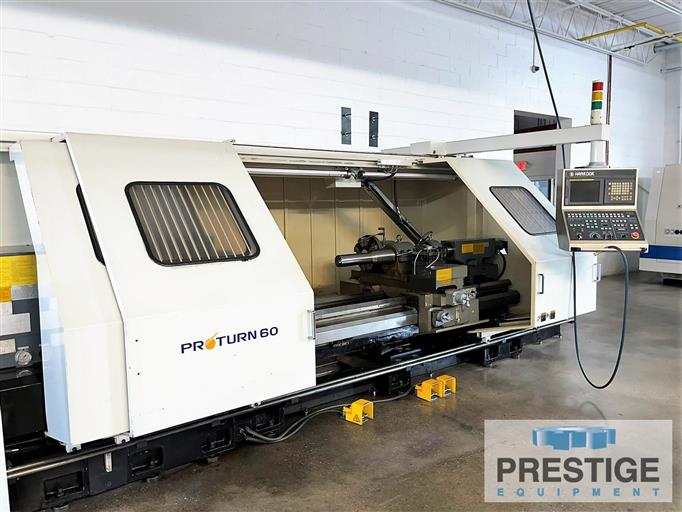

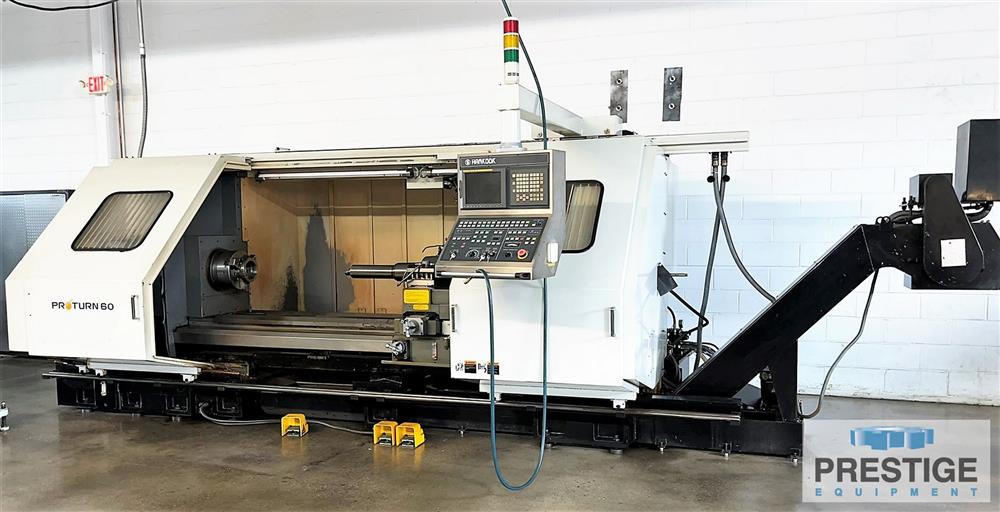

Hankook 30" x 80" Proturn-60x2000 CNC Flat Bed Lathe
Model:
Proturn-60x2000
Age:
2005
Ref#:
32188
Prestige Equipment is the world's leading provider of Hankook 30" x 80" Proturn-60x2000 CNC Flat Bed Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
View Additional Specs
Features:
✓

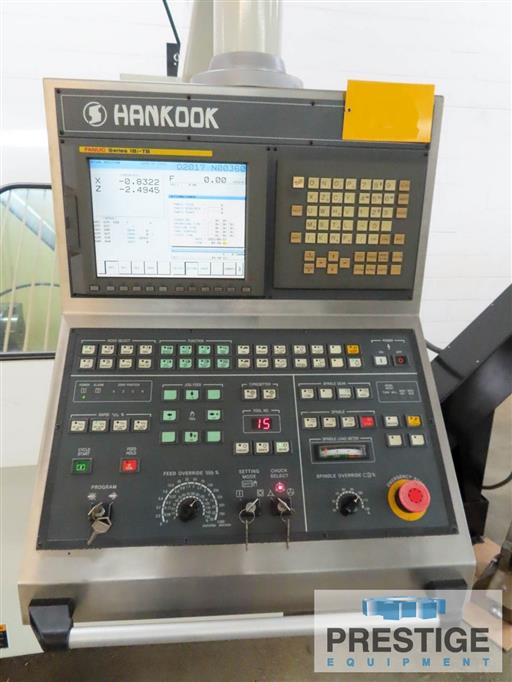

Fanuc 21i-TB CNC Control
✓

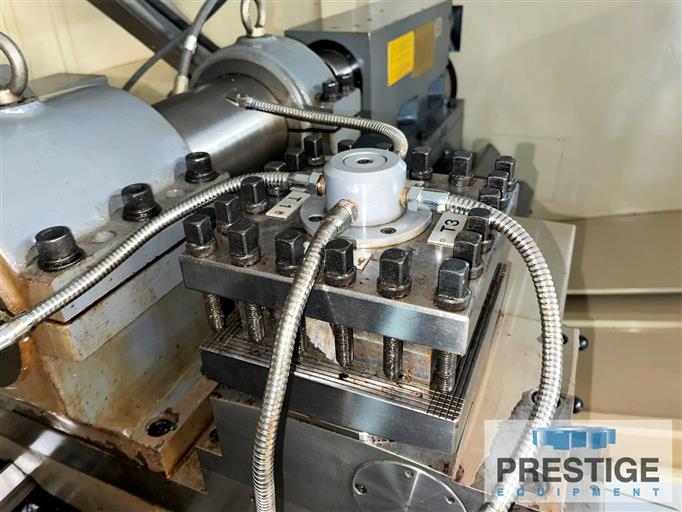

4-Position Tool Post
✓

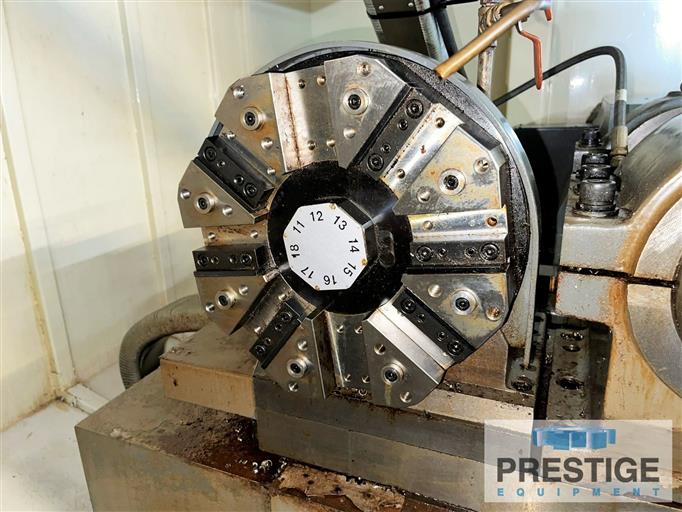

8-Position Turret
✓

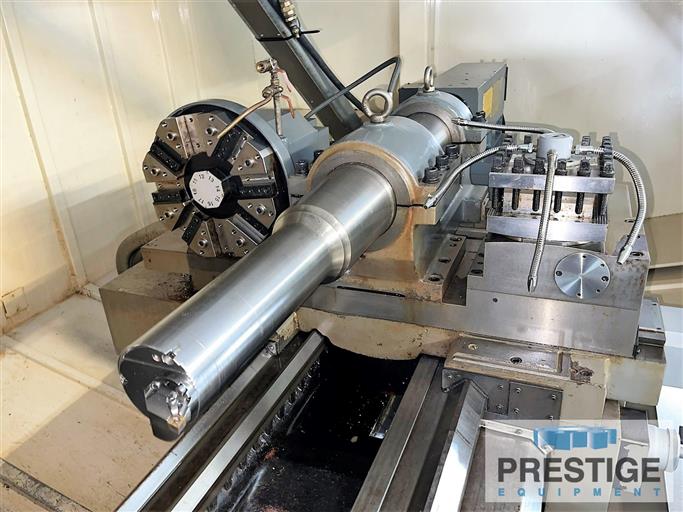

Boring Carriage
✓

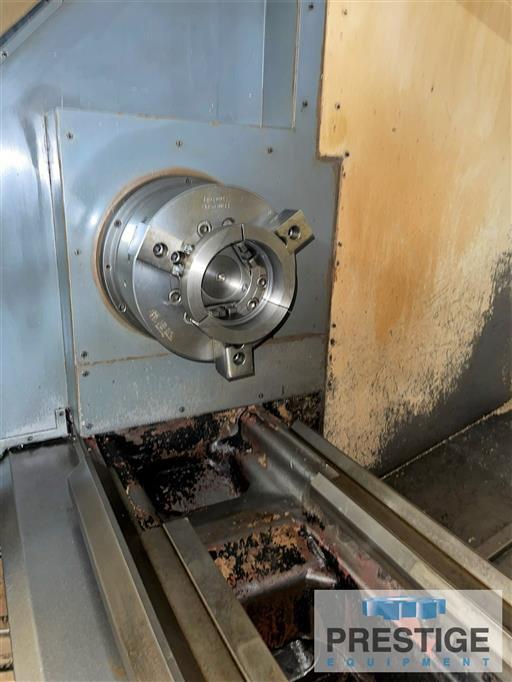

12" 3-Jaw Chuck
✓
Hydraulic Tailstock
Product Specifications

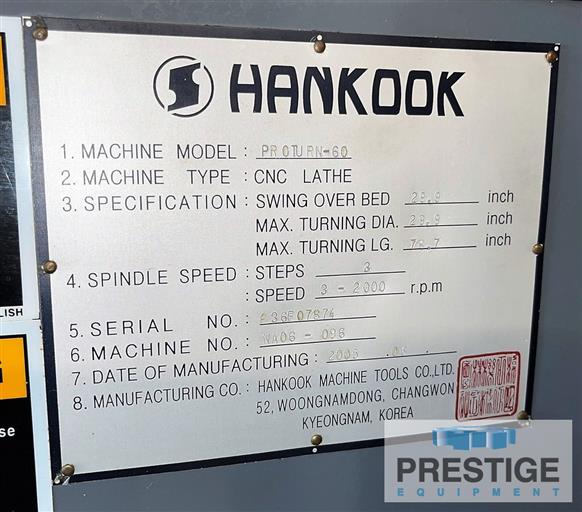

Serial Number
36F07874
CAPACITIES:
Swing Over Bed
28"
Swing Over Carriage
19"
Distance Between Centers
80"
Max. Machining Diameter
12"
Max. Machining Length
83"
Spindle Nose to Turret Face
5"-89.7"
Maximum Load Between Centers
6600 Lbs.
Maximum Load Capacity, Chuck Only
1650 Lbs.
Spindle Speeds, 3-Step
2.8-2000 RPM
Spindle Nose
A-11"
Front Bearing I.D.
5.9"
Hole Thru Spindle
4.13"
Width of Bed
19.7"
Length of Bed
152"
Spindle Motor, Continuous/30-Minute
25 HP/30 HP
Tailstock Quill Stroke
7.9"
Taper in Tailstock
#6MT
Tailstock Quill Diameter
4.4"
Dimensions, Machine Only
207" x 91"
Approximate Weight
16,000
Equipped With:
Fanuc 21i-TB CNC Control
12" 3-Jaw Chuck
4-Position Tool Post
8-Position Turret
Boring Carriage
Steady Rest
Hydraulic Tailstock

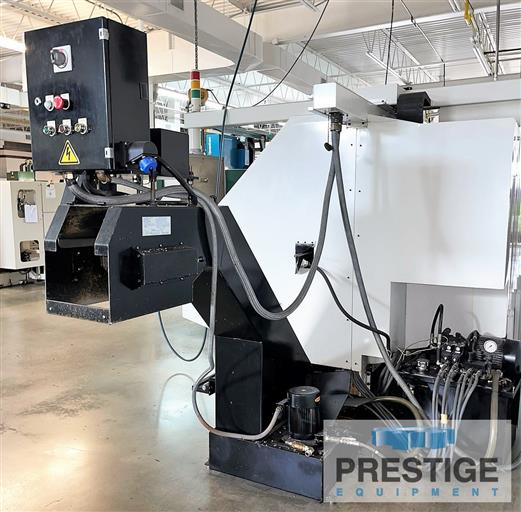

Chip Conveyor
Full Enclosure
NOTE:
Inspect in Plant Under Power
Features:
✓
Fanuc 21i-TB CNC Control
✓
4-Position Tool Post
✓
8-Position Turret
✓
Boring Carriage
✓
12" 3-Jaw Chuck
✓
Hydraulic Tailstock
