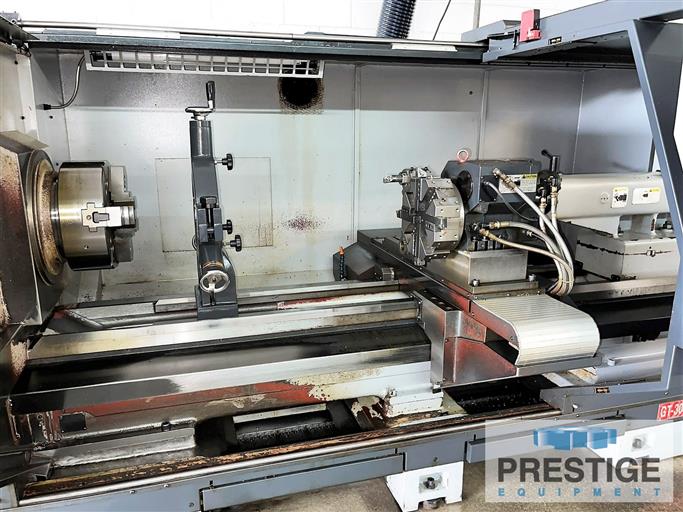

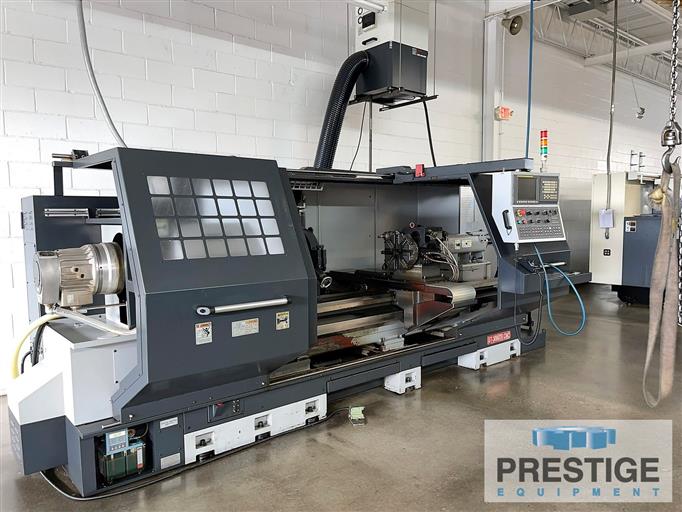

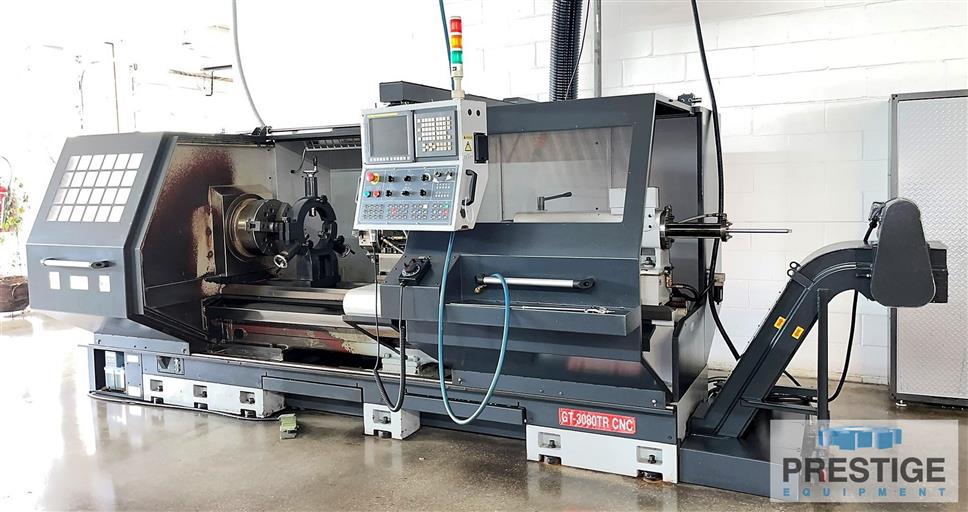

Ganesh 30" x 80" GT-3080TRCNC CNC Flat Bed Lathe
Model:
GT-3080TRCNC
Age:
2009
Ref#:
32190
Prestige Equipment is the world's leading provider of Ganesh 30" x 80" GT-3080TRCNC CNC Flat Bed Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
View Additional Specs
Features:
✓
Fanuc 0i-TD CNC Control
✓
16" 3-Jaw Hydraulic Chuck
✓
8-Position Turret
✓
Tailstock
✓
Chip Conveyor
Product Specifications

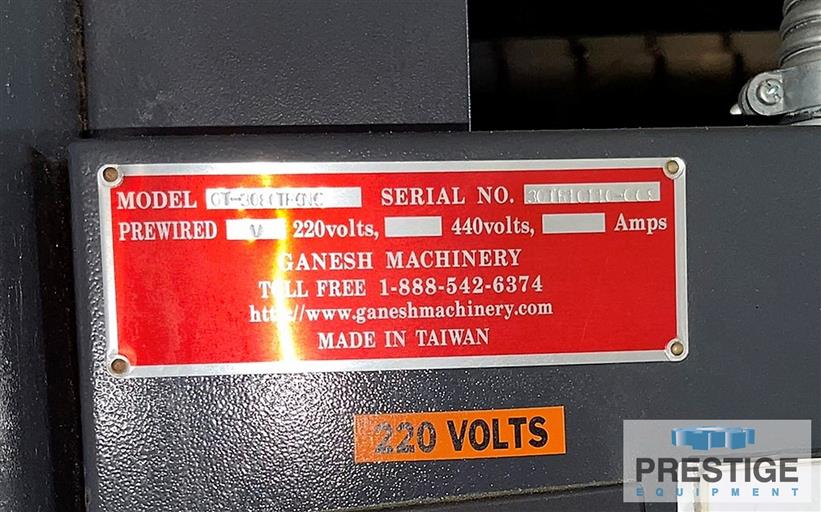

Serial Number
30TR10110-009
SPECIFICATION:
Swing Over Bed
30"
Swing Over Cross Slide
19"
Center Height
15"
Distance Between Centers
78.75"
Spindle Speeds
10-1000 RPM
Spindle Nose
A2-11"
Spindle Bore
6.63"
Spindle Bearing
Taper Roller
Main Motor
25 HP
Bed Width
18"
Bed Length
137.75"
Tailstock Quill Diameter
3.5"
Tailstock Quill Travel
7.87"
Tailstock Quill Taper
MT#5
Approx. Dimensions
78.75" x 185" x 71"
Equipped With:

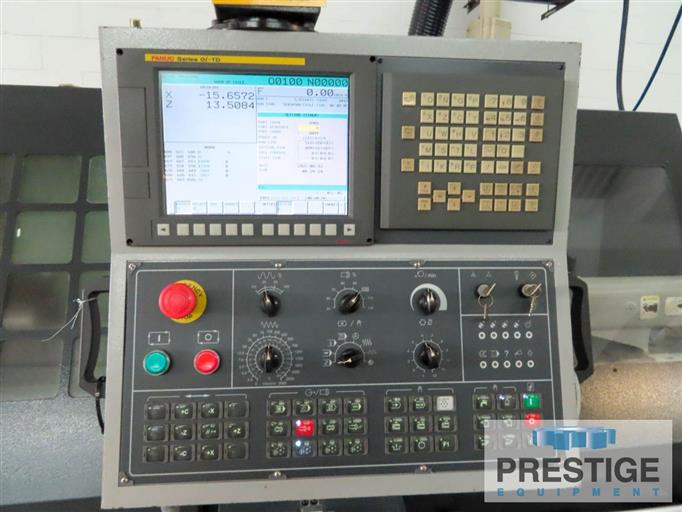

Fanuc 0i-TD CNC Control
16" 3-Jaw Hydraulic Chuck

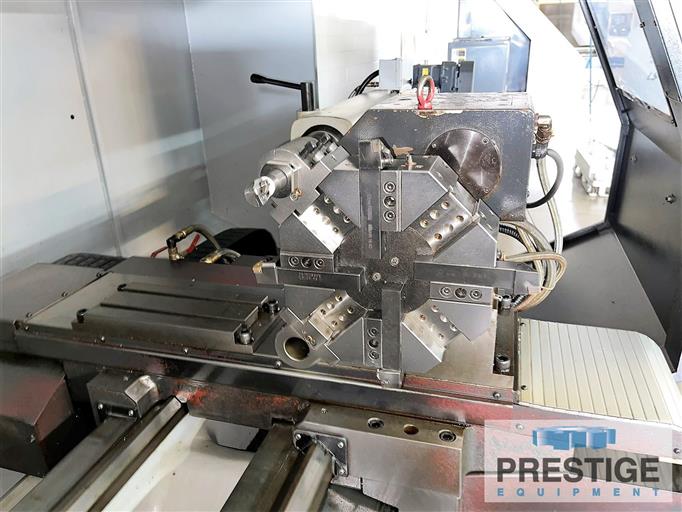

8-Position Turret
LNS FOX WS1020 Mist Collector

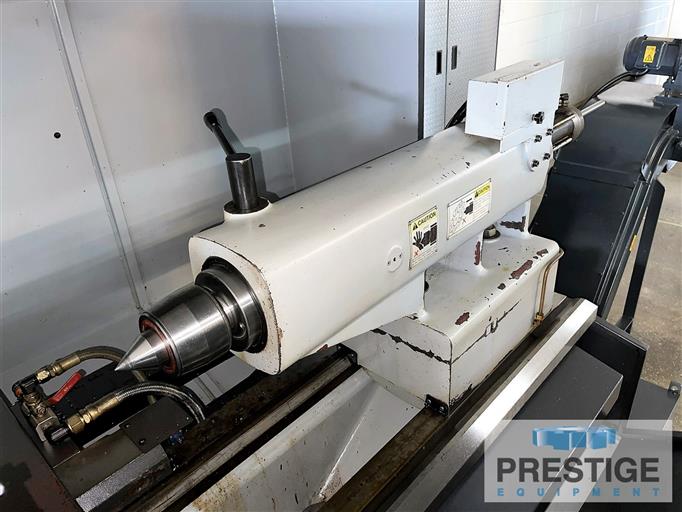

Tailstock

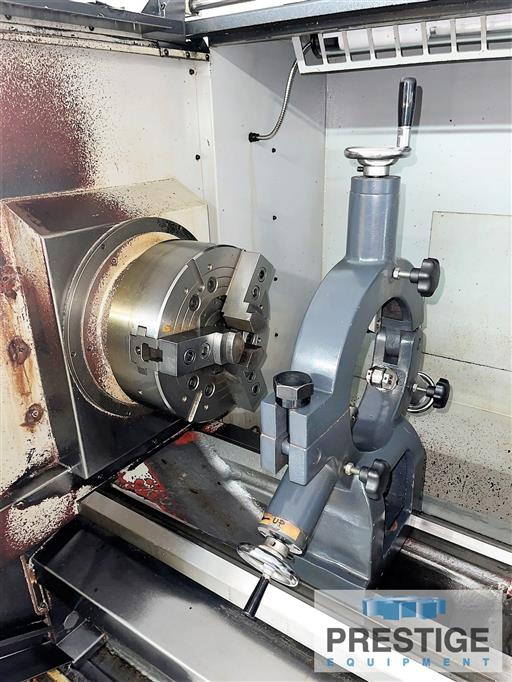

Steady Rest
Chip Conveyor
NOTE:
Inspect in Plant Under Power
Features:
✓
Fanuc 0i-TD CNC Control
✓
16" 3-Jaw Hydraulic Chuck
✓
8-Position Turret
✓
Tailstock
✓
Chip Conveyor
