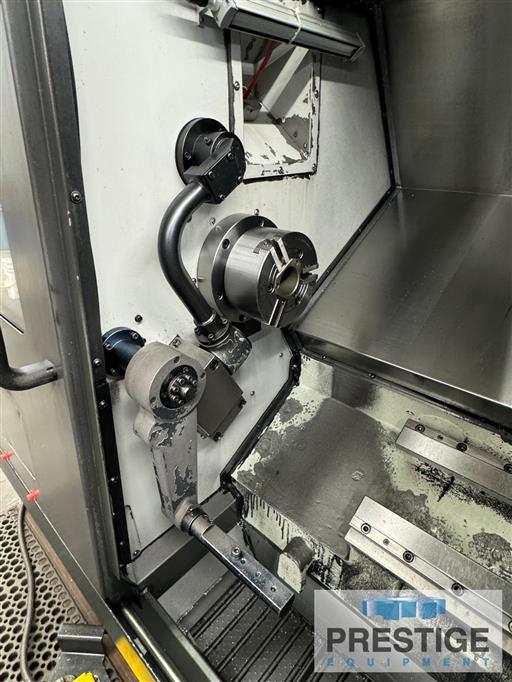

Doosan Lynx 220LMA CNC Turning Center with Live Milling

Model:
Lynx 220LMA
Age:
2007
Ref#:
43296
Prestige Equipment is the world's leading provider of Doosan Lynx 220LMA CNC Turning Center with Live Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used Three Axis Or More CNC Lathes for sale.
Product Specifications
Features:
Fanuc 0i-TC Series CNC Control
12/24-Position Turret
Live Milling & C-Axis
Part Catcher
Tailstock
Product Specifications
CAPACITIES:
Swing Over Bed
20.1"
Swing Over Saddle
11.4"
Max. Turning Diameter
9.8"
Distance Between Centers
20.1"
Max. Turning Length
20.1"
Chuck Capacity
6"
Bar Capacity
2"
X-Axis Travel
6.9"
Z-Axis Travel
21.7"
Spindle Speed
6000 RPM
Spindle Motor
20 HP/15 HP
Spindle Nose
A2-5
Number of Tool Stations
12
Number of Indexing Stations
24
Rotary Tool Speed
6000 RPM
Rotary Tool Motor
5 HP
Tailstock Quill Diameter
2.6"
Tailstock Quill Bore Taper
MT #4
Tailstock Quill Travel
3.1"
Rapid Traverse, X-Axis
1181 IPM
Rapid Traverse, Z-Axis
1417 IPM
Cutting Feed Rate
19.7 IPM
Machine Dimensions
103.5" x 63" x 65.2"
Approximate Machine Weight
3300 Lbs.
Equipped With:
Fanuc 0i-TC Series CNC Control
12/24-Position Turret
Live Milling & C-Axis
Part Catcher
Tool Eye
Tailstock
Turbo Chip Conveyor
Features:
Fanuc 0i-TC Series CNC Control
12/24-Position Turret
Live Milling & C-Axis
Part Catcher
Tailstock
