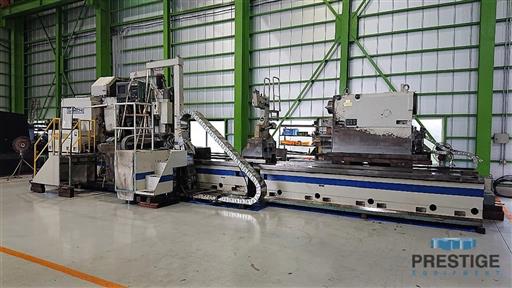

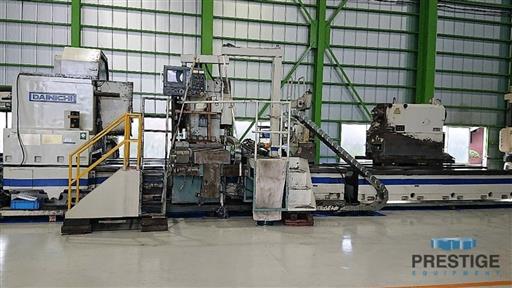

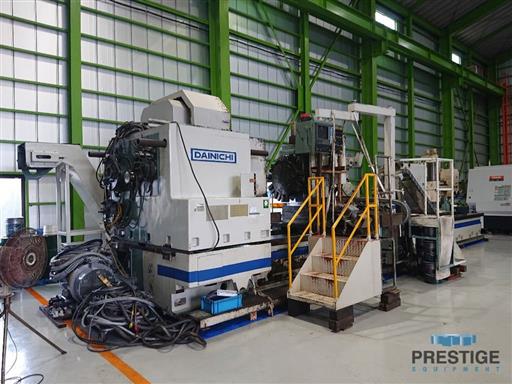

Dainichi W160R-200x600 70" x 236" CNC Lathe
Model:
W160R-200x600
Age:
1992
Ref#:
31570
Prestige Equipment is the world's leading provider of Dainichi W160R-200x600 70" x 236" CNC Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓
Fanuc 15-TF CNC Control
✓
4-Jaw Chuck
✓

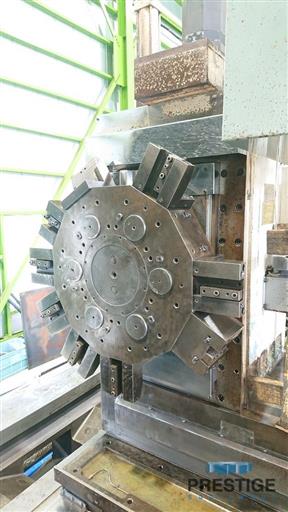

12 Station Turret
✓

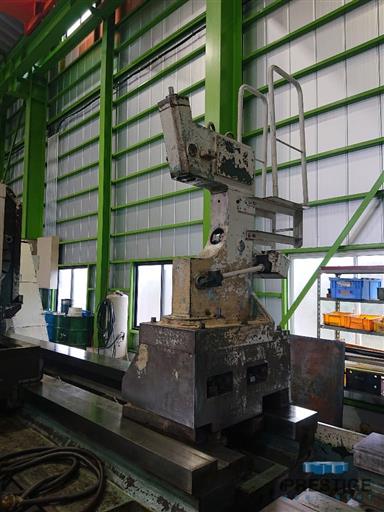

Steady Rest
✓

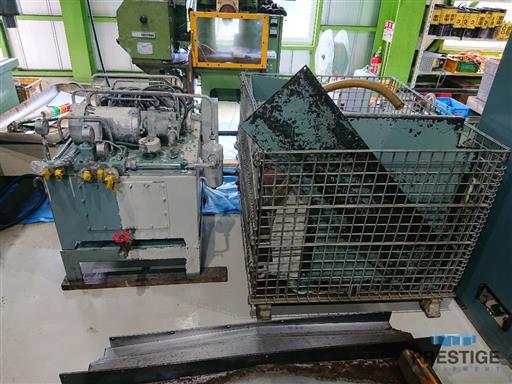

Chip Conveyor
Product Specifications
CAPACITIES:
Maximum Swing Over Bedways
70.86"
Maximum Swing Over Carriage
57.08"
Maximum Work Diameter
51.18"
Distance Between Centers
236.66"
Spindle Speeds (Inf. Variable)
1.6-500 RPM
Spindle Bore
4.09"
Spindle Nose
JIS A2-20

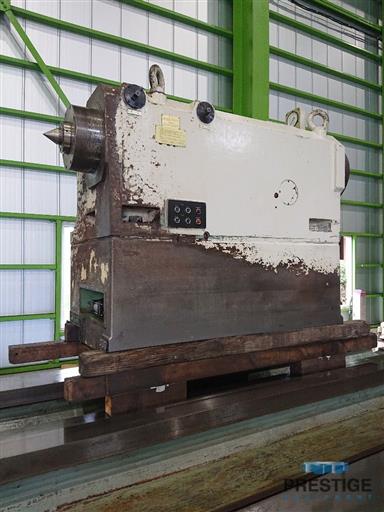

Tailstock Diameter
12.40"
Weight Capacity Between Centers
35,200 Lbs.

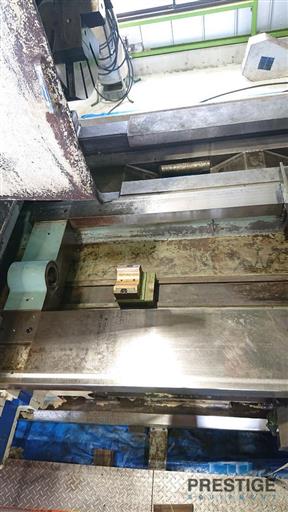

Bed Width/Bed Height................... 78.74"/30.70"
78.74"/30.70"
X-Axis Travel
33.46"
Z-Axis Travel
236.66"

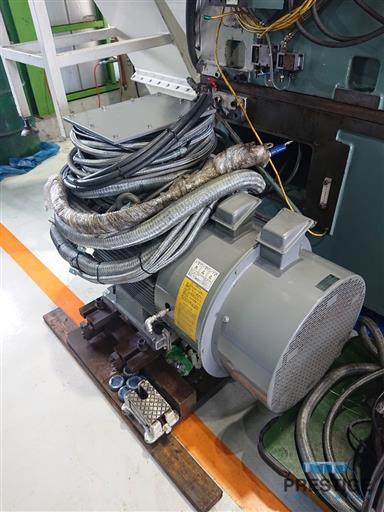

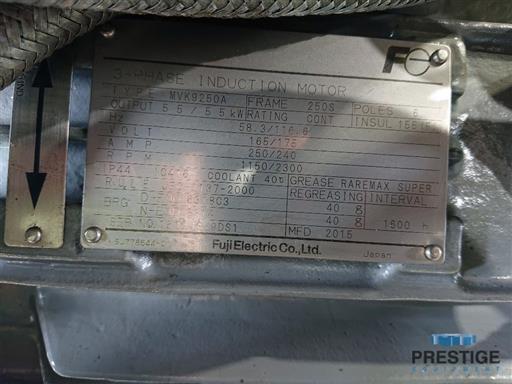

Spindle Motor
73 HP
Equipped With:

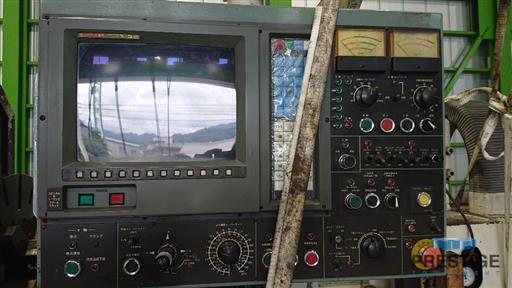

Fanuc 15-TF CNC Control

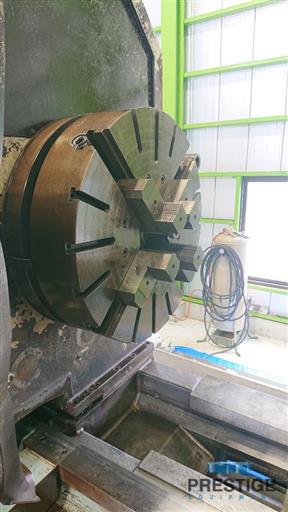

39" 4-Jaw Chuck
12 Station Turret
Steady Rest
Chip Conveyor
Features:
✓
Fanuc 15-TF CNC Control
✓
4-Jaw Chuck
✓
12 Station Turret
✓
Steady Rest
✓
Chip Conveyor
