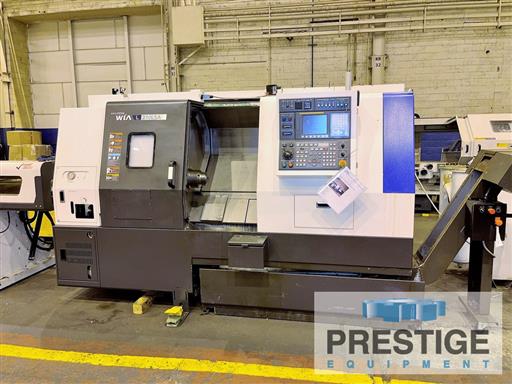

Hyundai Wia L210-LSA CNC Turning Center With Sub-Spindle

Model:
L210-LSA
Age:
2013
Ref#:
32280
View Video
Prestige Equipment is the world's leading provider of Hyundai Wia L210-LSA CNC Turning Center With Sub-Spindle & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
Fanuc i-Series CNC Control
Main & Sub Spindle
12-Position Turret
LNS Servo QLS-80 S2 Bar Feed
Chip Conveyor
Chip Blaster
Product Specifications
SPECIFICATIONS:
Swing Over Bed
551 MM
Swing Over Carriage
351 MM
Maximum Turn Diameter
351 MM
Maximum Turning Length
20.9
MAIN SPINDLE:
Bar Capacity
66 MM
Spindle Bore
78 MM
Spindle Speed
4000 RPM
Spindle Motor
15 KW / 11 KW
Spindle Nose
A2-6

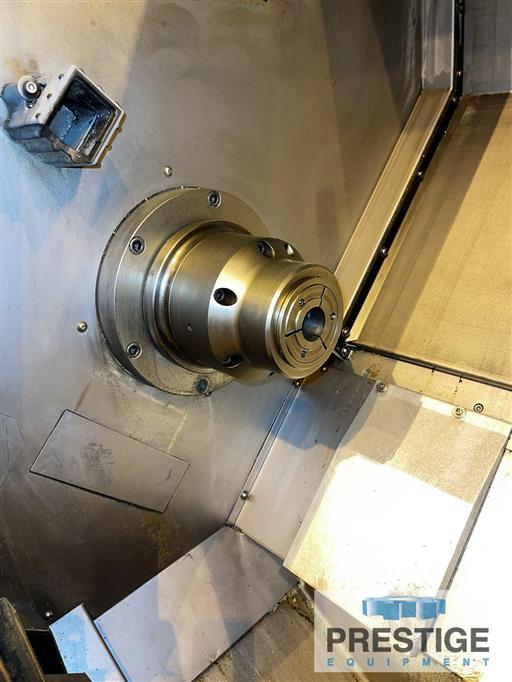

SUB-SPINDLE:
Bar Capacity
33 MM
Spindle Bore
43 MM
Spindle Speed
6000 RPM
Spindle Motor
4 KW / 2 KW
Spindle Nose
Flat 110 MM
TRAVELS:
X-Axis Travel
211 MM
Z-Axis Travel
551 MM
B-Axis Travel
749 MM

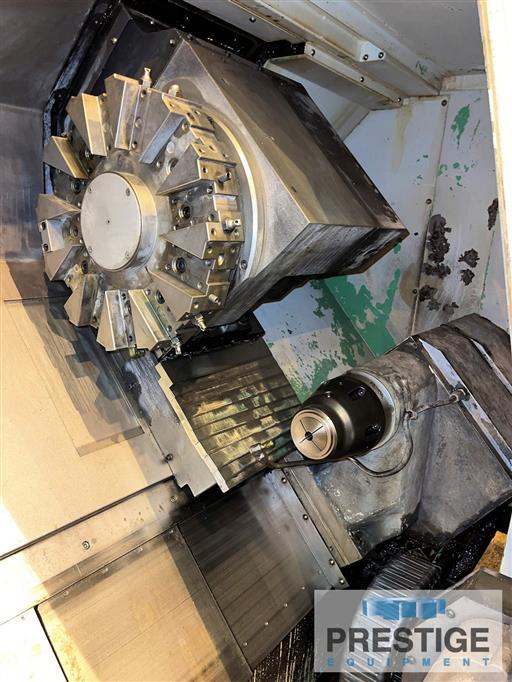

TURRET:
Number of Stations
12
0.D. Tool Size
25 MM x 25 MM
I.D. Tool Size
41 MM
DIMENSIONS & WEIGHTS:
Floor Space, Machine Only
2901 MM x 1651 MM
Machine Height
1869 MM
Machine Weight
4300 KG .
Equipped With:

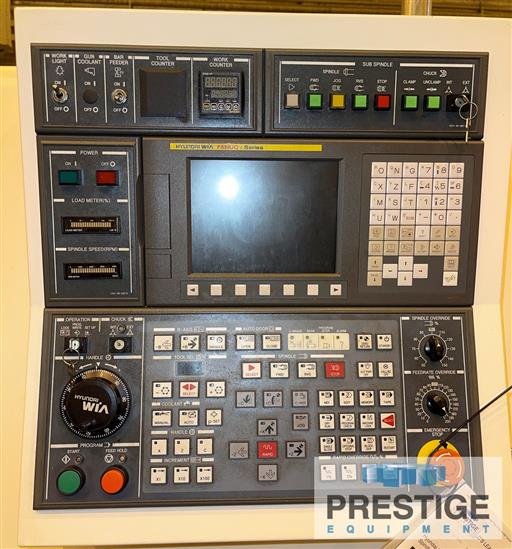

Fanuc i-Series CNC Control
Main Spindle
Sub-Spindle
12-Position Auto Indexing Turret

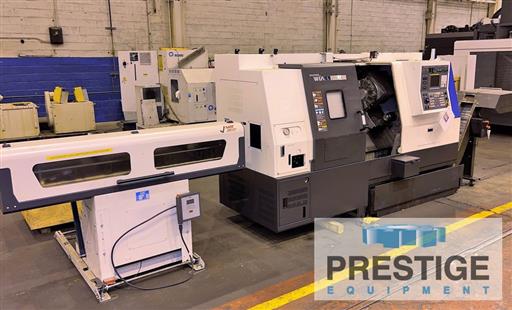

LNS Servo QLS-80 S2 Bar Feed

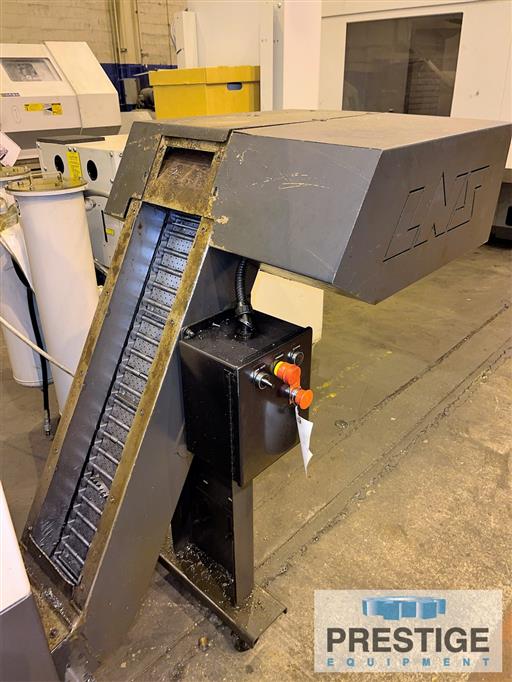

Chip Conveyor

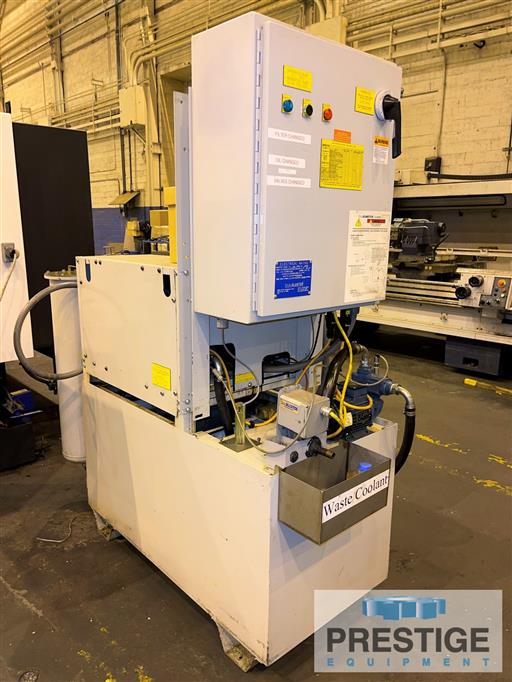

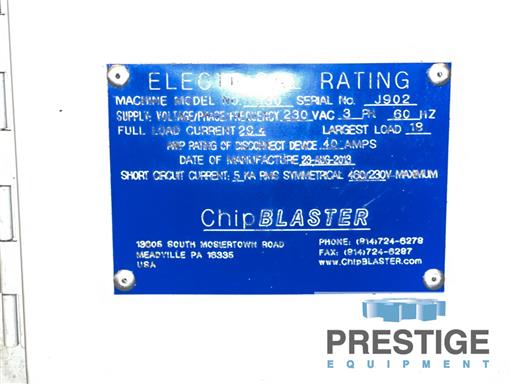

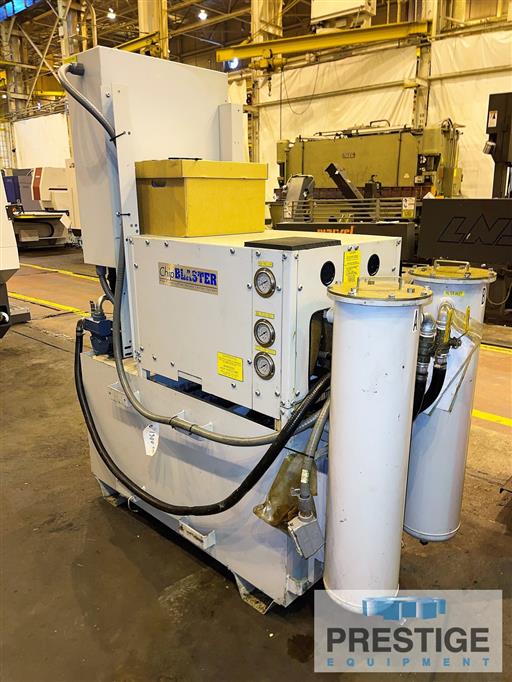

Chip Blaster High Pressure Coolant System
Tooling
NOTE:
Under Power In Philadelphia, PA
Features:
Fanuc i-Series CNC Control
Main & Sub Spindle
12-Position Turret
LNS Servo QLS-80 S2 Bar Feed
Chip Conveyor
Chip Blaster
