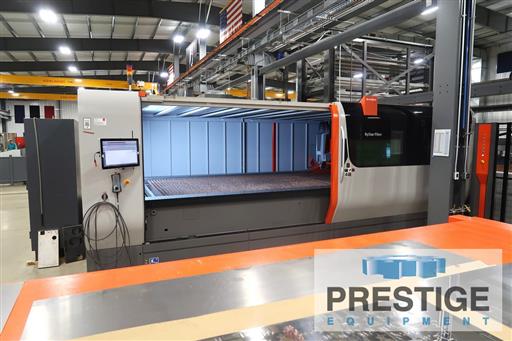

Bystronic Fiber 4020 Dynamic Edition 10KW Fiber Laser with FMS System
Model:
Bystar Fiber 4020 Dynamic Edition
Age:
2021
Ref#:
44117
Prestige Equipment is the world's leading provider of Bystronic Fiber 4020 Dynamic Edition 10KW Fiber Laser with FMS System & machine tools & fabricating equipment. Take a look at our wide selection of new and used Tube CO2 Fiber Lasers for sale.
Product Specifications
Features:
✓
Bystronic ByVision CNC Control with 21.5" Touch Screen
✓

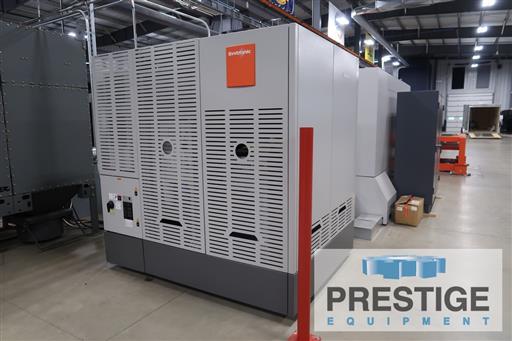

Fiber 10000 Laser Source
✓
Automatic Nozzle Changer with 64 Positions
✓
NCT & KerfScan
✓
Position Electrical Cabinet: Rear Side
✓
Dust Extraction System
✓
Single Tower Storage Solution, 6 Raw Material and 2 Cut Parts Cassettes
✓
ByTrans Modular-FLEX Module
✓
ByTrans Module Extension (2-Levels)
✓
ByTrans Modular-Connection to Storage System
✓
ByTrans Modular 4020 Over/Under Shuttle
Product Specifications
CAPACITY:
Laser Output
10 KW
Nominal Sheet Size, X-Axis
160"
Nominal Sheet Size, Y-Axis
80"
Cutting Area, X-Axis
162"
Cutting Area, Y-Axis
83"
Cutting Area, Z-Axis
4"
Maximum Work Piece Weight
4,190 Lbs.
Positioning Speed Parallel Axis X/Y
4,724 IPM
Positioning Speed Simultaneous
6,681 IPM
Max. Material Thickness - Mild Steel
1"
Max. Material Thickness - Stainless
1.18"
Max. Material Thickness - Aluminum
1.18"
Max. Material Thickness - Copper
.47"
Max. Material Thickness - Brass
.59"
Approximate Dimensions
559" x 248" x 126"
Approximate Machine Weight
32,000 Lbs.
Equipped With:
Bystronic ByVision CNC Control with 21.5" Touch Screen
VFD and Touchscreen Controller for DC
Fiber 10000 Laser Source
Automatic Nozzle Changer with 64 Positions
Assist Gas Filter System
Detection Eye
NCT & KerfScan
2nd High Pressure Cutting Gas Channel
Preparation for N2-Generator
Position Electrical Cabinet: Rear Side

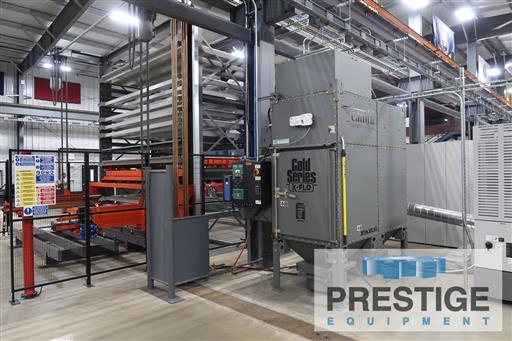

Dust Extraction System
FMS SYSTEM:

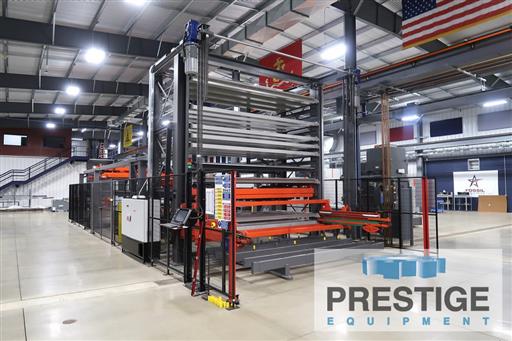

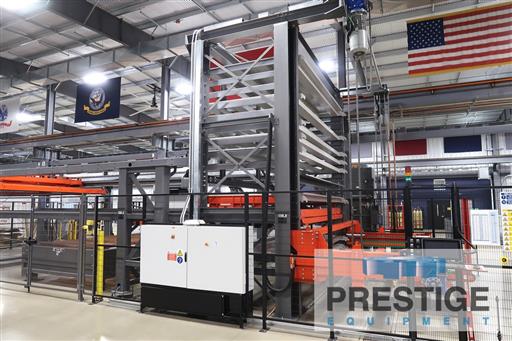

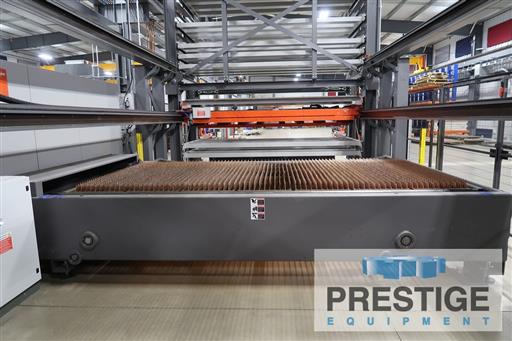

Single Tower Storage Solution, 6 Raw Material and 2 Cut Parts Cassettes
ByTrans Modular-FLEX Module
ByTrans Module Extension (2-Levels)
ByTrans Modular-Additional Control Panel
ByTrans Modular-Connection to Storage System
ByTrans Modular UL Management

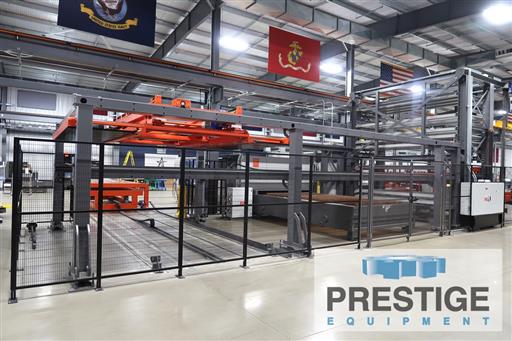

ByTrans Modular 4020 Over/Under Shuttle

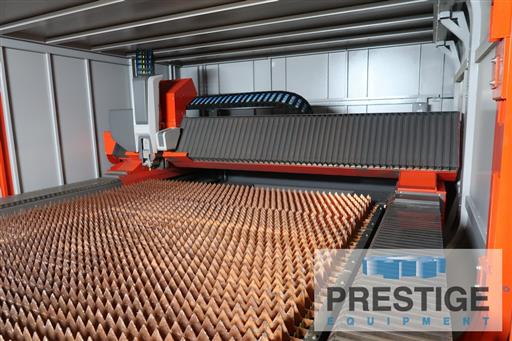

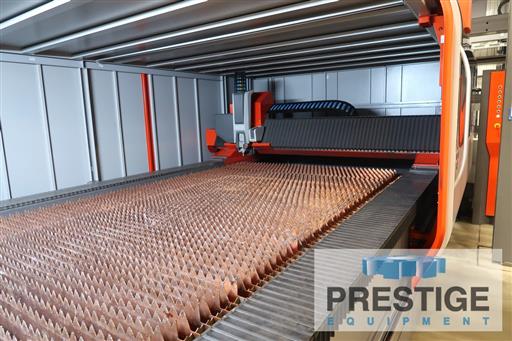

Taller Copper Grates (110 mm) One Set for Both Tables
NOTE:

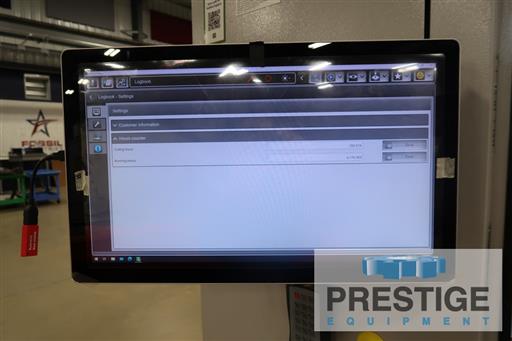

Like New, In Plant Under Power, Only 349 Cutting Hours
Auction Message:
To be sold at the Fossil Industries Online Auction June 17th, 2025
