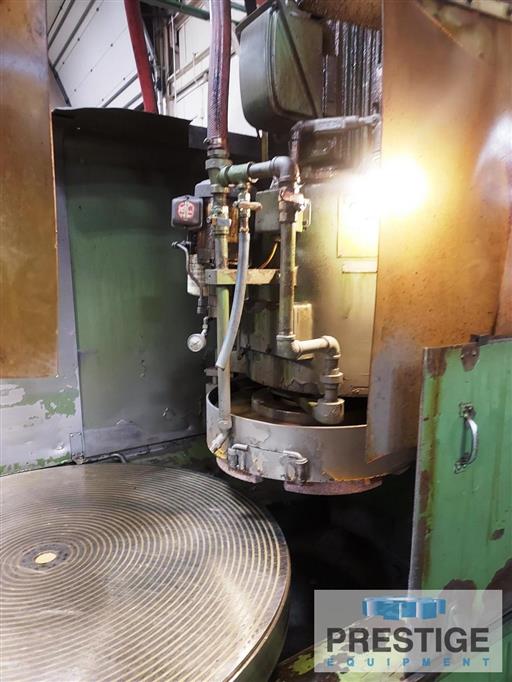

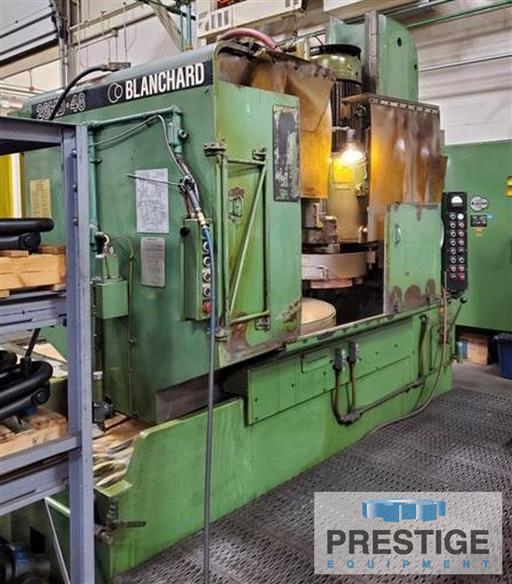

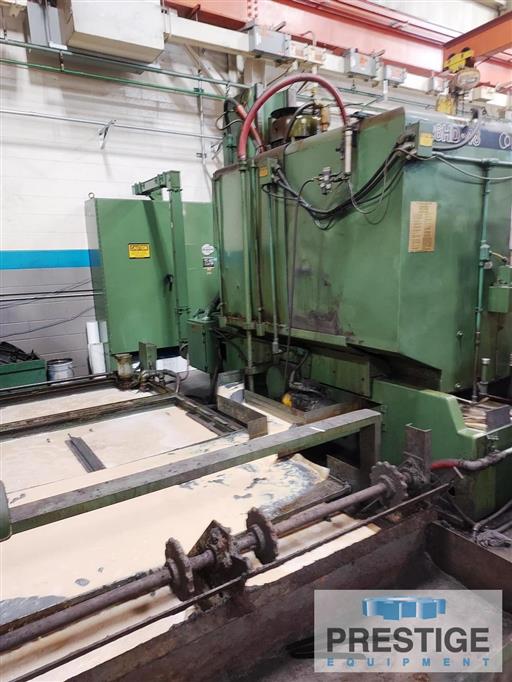

Blanchard 26HD48 48" Rotary Surface Grinder
Model:
26HD48
Age:
1997
Ref#:
32356
Prestige Equipment is the world's leading provider of Blanchard 26HD48 48" Rotary Surface Grinder & machine tools & fabricating equipment. Take a look at our wide selection of new and used Vertical Spindle Rotary Surface Grinders for sale.
Product Specifications
Features:
✓
Magnetic Chuck Controls
✓
Wheel Dresser
✓
Automatic Lube System
✓
Coolant tank and pumps
Product Specifications
Serial Number
15977
SPECIFICATIONS:
Grinding Wheel Diameter
26"

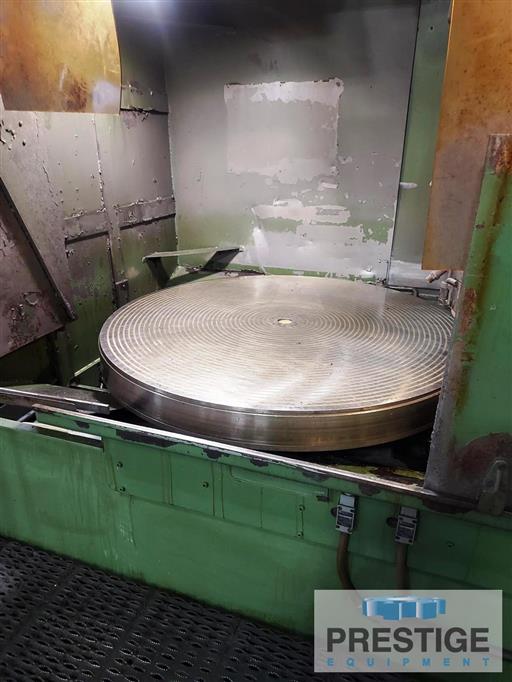

Magnetic Chuck Diameter
48"
Chuck Life
.625"
Swing Inside Water Guards
56"
Vertical Range, Standard
36"
Maximum Load on Chuck
3,000 lbs.
Grinding Wheel Horsepower
75 HP

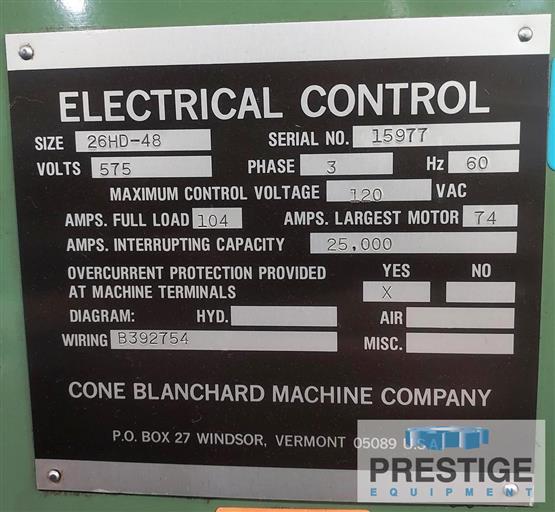

Electrics
575 Volt/3 PH/60 Hz
Head Design
Geared
Pick-Feed Type of Down Feed System
Down Feed Rates
.004-.080 IPM
Chuck Rotation Speeds
6-33 RPM
Equipped With:
Magnetic Chuck Controls
Wheel Dresser
Automatic Lube System
Coolant tank and pumps
14,600 LBS. Approximate Base Weight
Approximate Dimensions:
Grinder-64"D x 144"L x 114"H
Electrical Panel- 60"W x 78"H
NOTE:
One owner machine in excellent condition
Certified (Initial Scope of work):
Power up and test run
Inspect and determine all areas, if any, that need repair/rebuild.
Conduct repairs
Clean and Paint machine tool gray
Level machine, tram spindle and column to magnetic table
Precision grind magnet flat
Run test parts
Document tolerances
Features:
✓
Magnetic Chuck Controls
✓
Wheel Dresser
✓
Automatic Lube System
✓
Coolant tank and pumps
