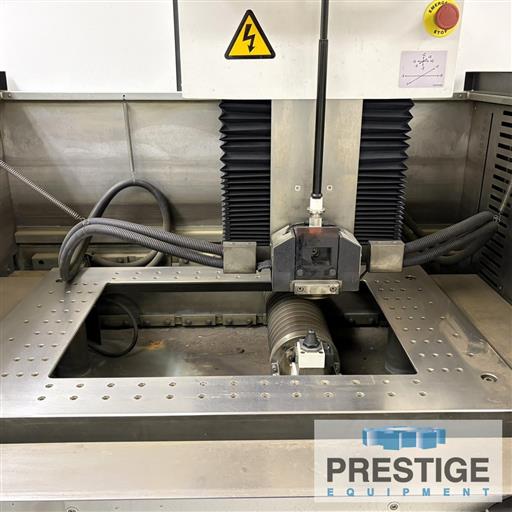

Agie Charmilles CUT 30P CNC Wire Type EDM
Model:
CUT 30P
Age:
2016
Ref#:
45124
Prestige Equipment is the world's leading provider of Agie Charmilles CUT 30P CNC Wire Type EDM & machine tools & fabricating equipment. Take a look at our wide selection of new and used Wire Type EDM for sale.
Product Specifications
Features:
✓

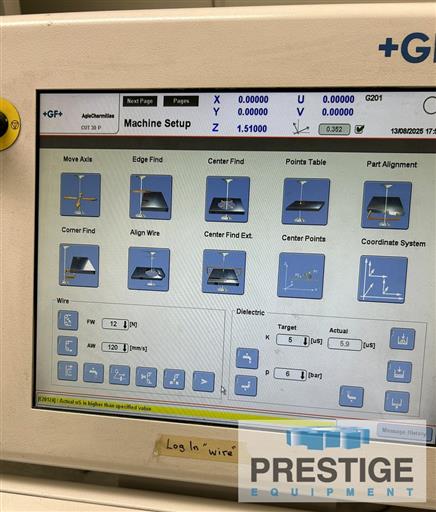

Windows Based PC Control
✓
Chiller Unit
Product Specifications
SPECIFICATIONS:
Tank Dimensions
40.55" x 31.50" x 13.75"
X-Axis Travel
23.60"
Y-Axis Travel
15.70"
Z-Axis Travel
13.75"
U/V Axis Travel
1.95"
Max. Workpiece Weight
2,200 Lbs
Dielectric Tank Capacity
60.75 Gallons
Max. Taper Angle
+/- 2.24"
Wire Guide Diameter
.006"/.008"/.010"/.012"
Wire Tension
3 - 30 N
Wire Speed
1.18 - 13 IPS
Approx. Machine Dimensions
122" x 110"
Approx. Machine Height
91.5"
Approx. Machine Weight
9,788 Lbs
Equipped With:
Windows Based PC Control
Chiller Unit
Features:
✓
Windows Based PC Control
✓
Chiller Unit
