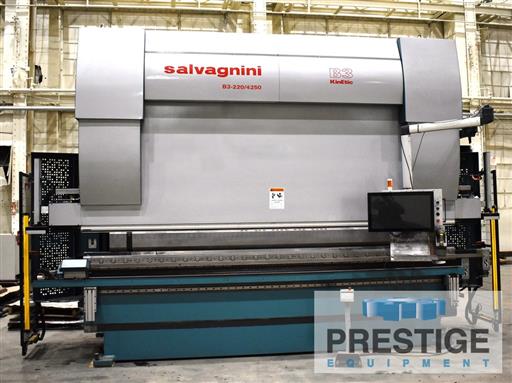

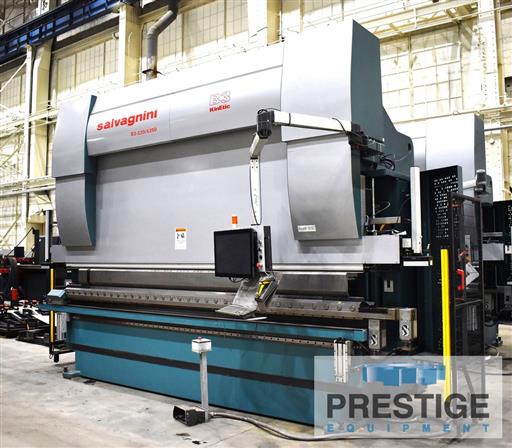

Salvagnini 242 Ton x 13' 7-Axis B3-220/4250 CNC Hydraulic Press Brake, (2) Available

Model:
B3 ATA B3.220-4250
Age:
2014
Ref#:
31786
View Video
Prestige Equipment is the world's leading provider of Salvagnini 242 Ton x 13' 7-Axis B3-220/4250 CNC Hydraulic Press Brake, (2) Available & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
Salvagnini 7-Axis CNC Control With Graphic Display
5-Axis BG7 CNC Back Gauge
Automatic Upper Tool Adjuster (ATA)
Adaptive Crowning
Wila "New Standard" Hydraulic Upper & Lower Clamping
Product Specifications
CAPACITY:
Maximum Tonnage Capacity
242 Ton
Overall Length Of Bed & Ram
167.32"
Distance Between Housings
142.51"
Throat Depth
20.47"
Stroke Length
17.71"
Maximum Speed
519.7 IPM
Bending Speed
42.5 IPM
Main Motor
34.6 HP
Approximate Dimensions (LxWxH)
209.8" x 81.8" x 145.9"
Approximate Shipping Weight
52,600 Lbs.
Equipped With:
Salvagnini 7-Axis CNC Control With Graphic Display
5-Axis BG7 CNC Back Gauge (X1,X2,Z1,Z2,R)
Adaptive Crowning
Wila Hydraulic Power Upper & Lower Clamping
Automatic Tool Adjuster (ATA) for automatically adjusting upper bending tool length
Heat Exchanger Assembled On The Electric Cabinet
Angle Measurement System (AMS)
MVM Option (Programmable Lower Die Rail)
Fast Bend Safety System With Automatic Height
Oil Cooling Unit
Tool Opening Via Control Console With Foot Switch
Electric Foot Switch
Lazer Safety Light Guarding

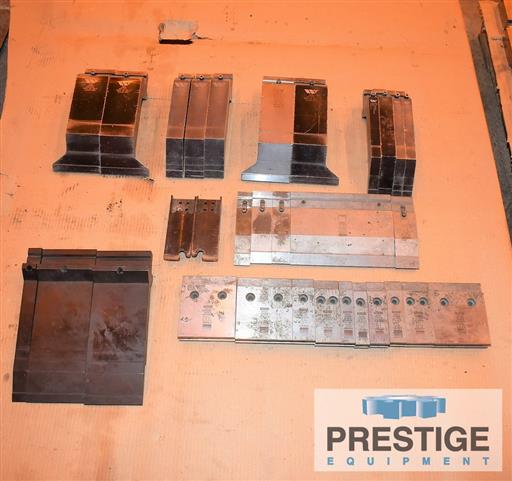

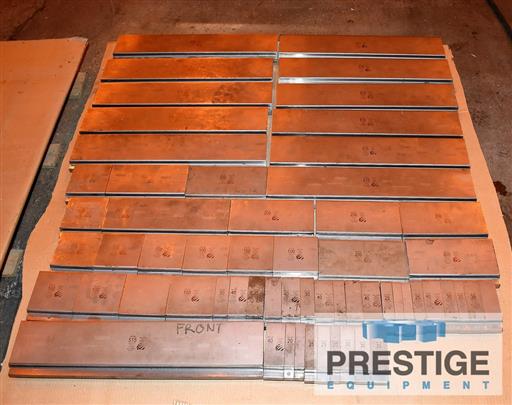

Wila New Standard Tooling System with Machine
Flush Floor
NOTE:
This machine can be inspected under power in our Philadelphia Warehouse.
There are two machines available
Features:
Salvagnini 7-Axis CNC Control With Graphic Display
5-Axis BG7 CNC Back Gauge
Automatic Upper Tool Adjuster (ATA)
Adaptive Crowning
Wila "New Standard" Hydraulic Upper & Lower Clamping
